Quantum Enclosure - Charging wall setup

Introduction

This guide is only for customers who are installing a 6 player system within a Quantum Enclosure, and explains how to setup the charging wall within the Enclosure.

---

On this page:

  Hook locations

  Charger locations

  Spare Equipment hooks and Headset Battery Dock location

---

Hook locations

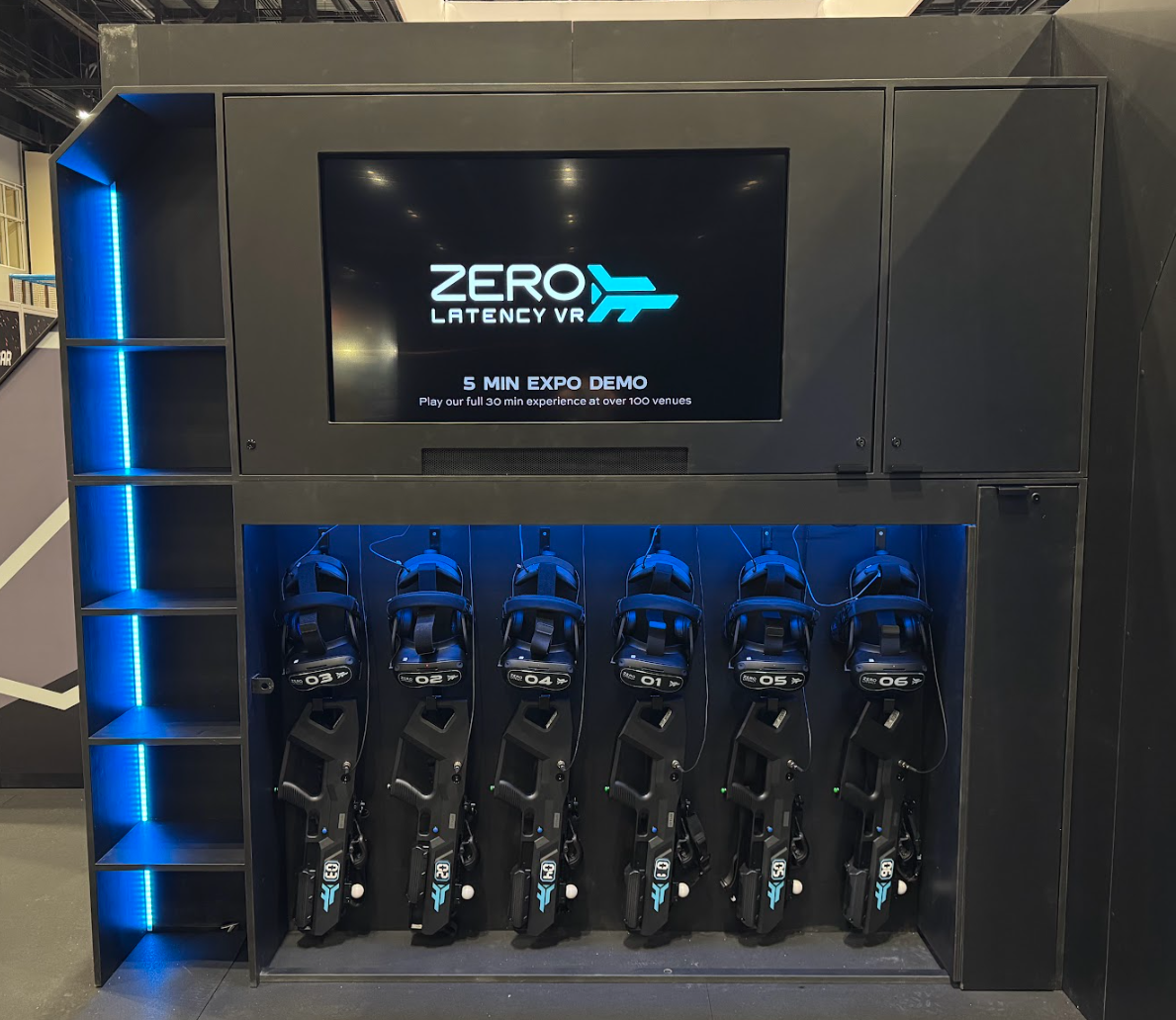

• Your equipment wall can hold 6 headsets and 6 controllers, using the 12 hooks provided.
• Headsets hooks are positioned at equal distance from each other directly above controllers hooks.

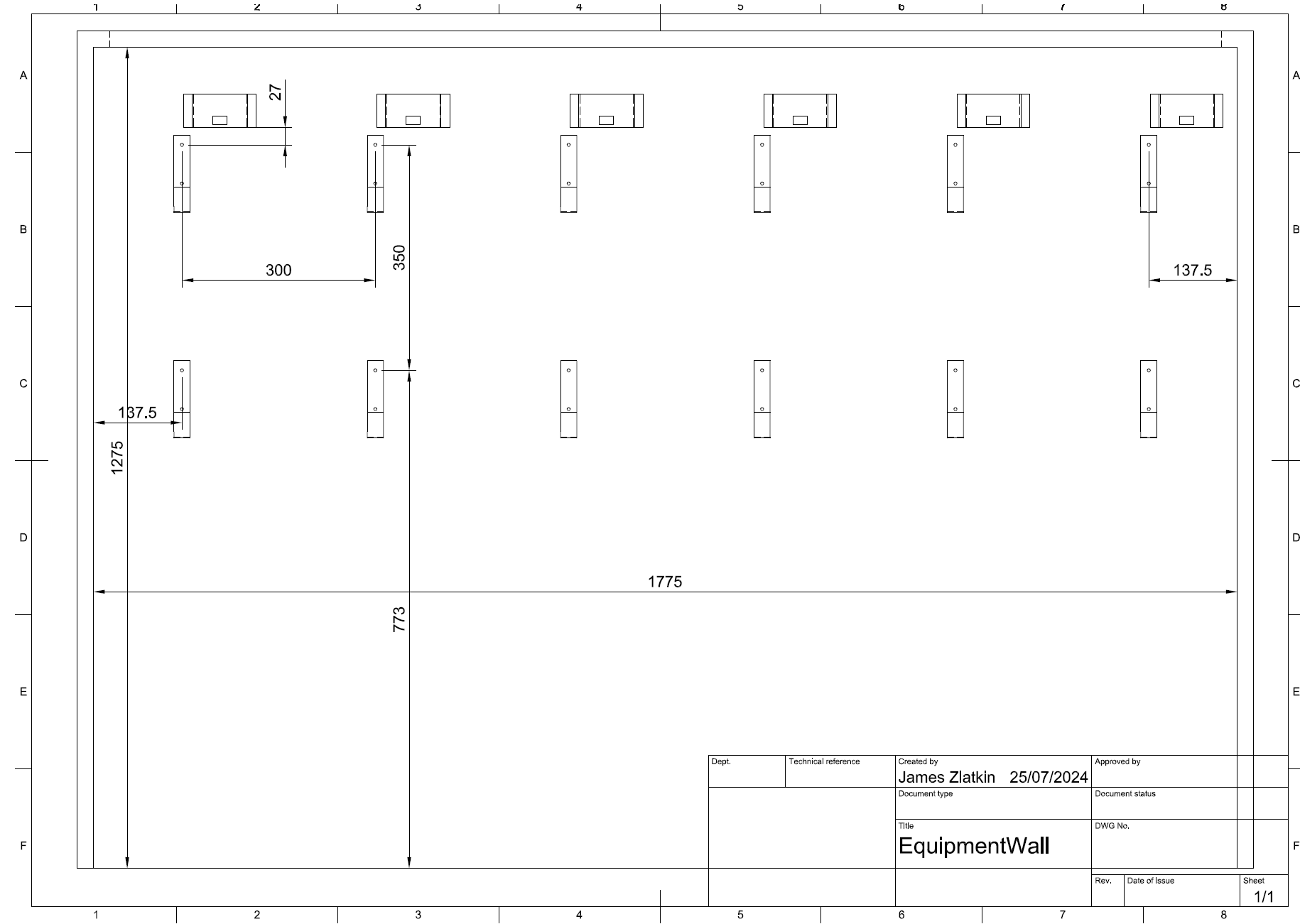

• The Diagram below shows the hook locations for your equipment wall.

  Back to top

Charger locations

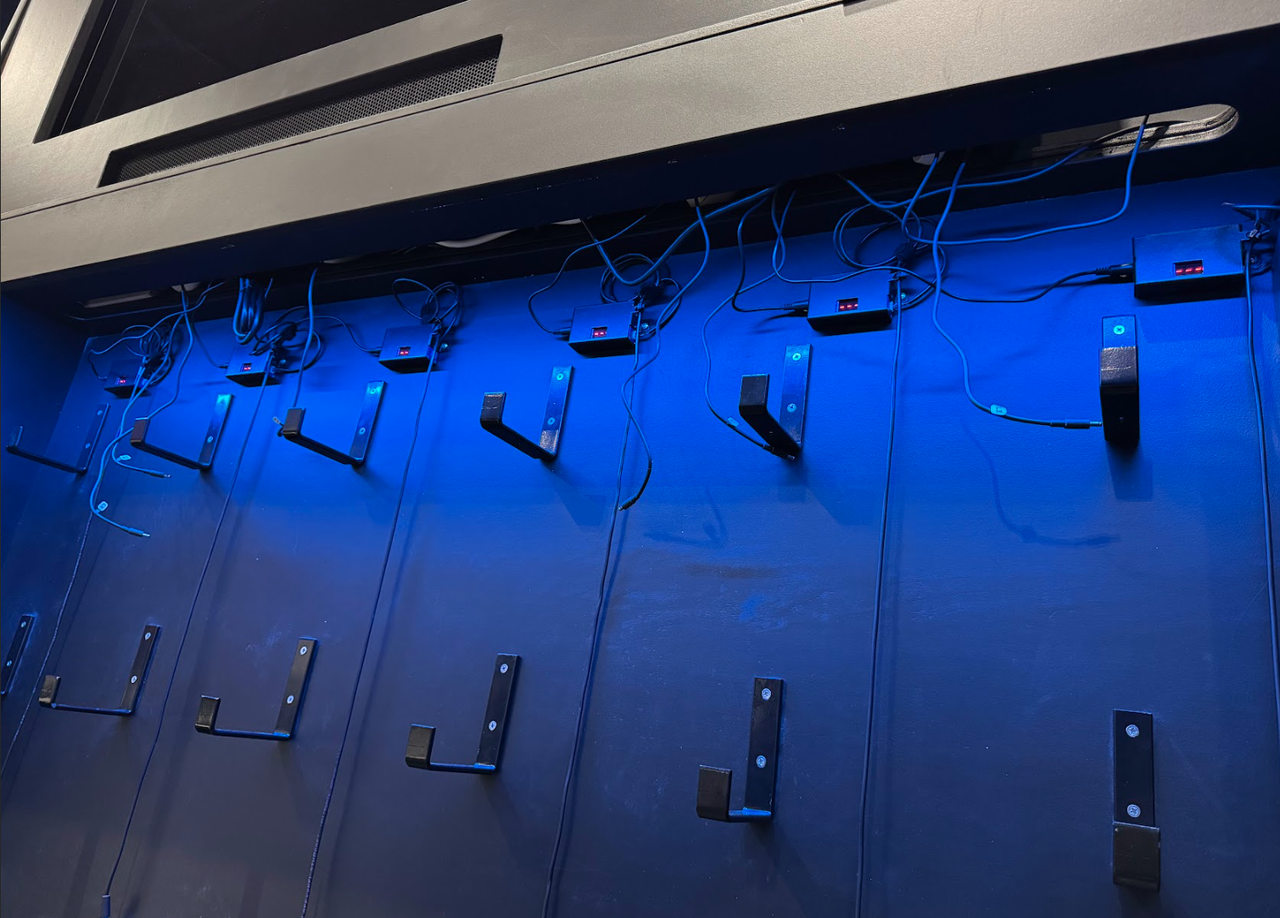

• As per PDF above, the blue controller charger modules are placed into their mounting brackets above the top row hooks.

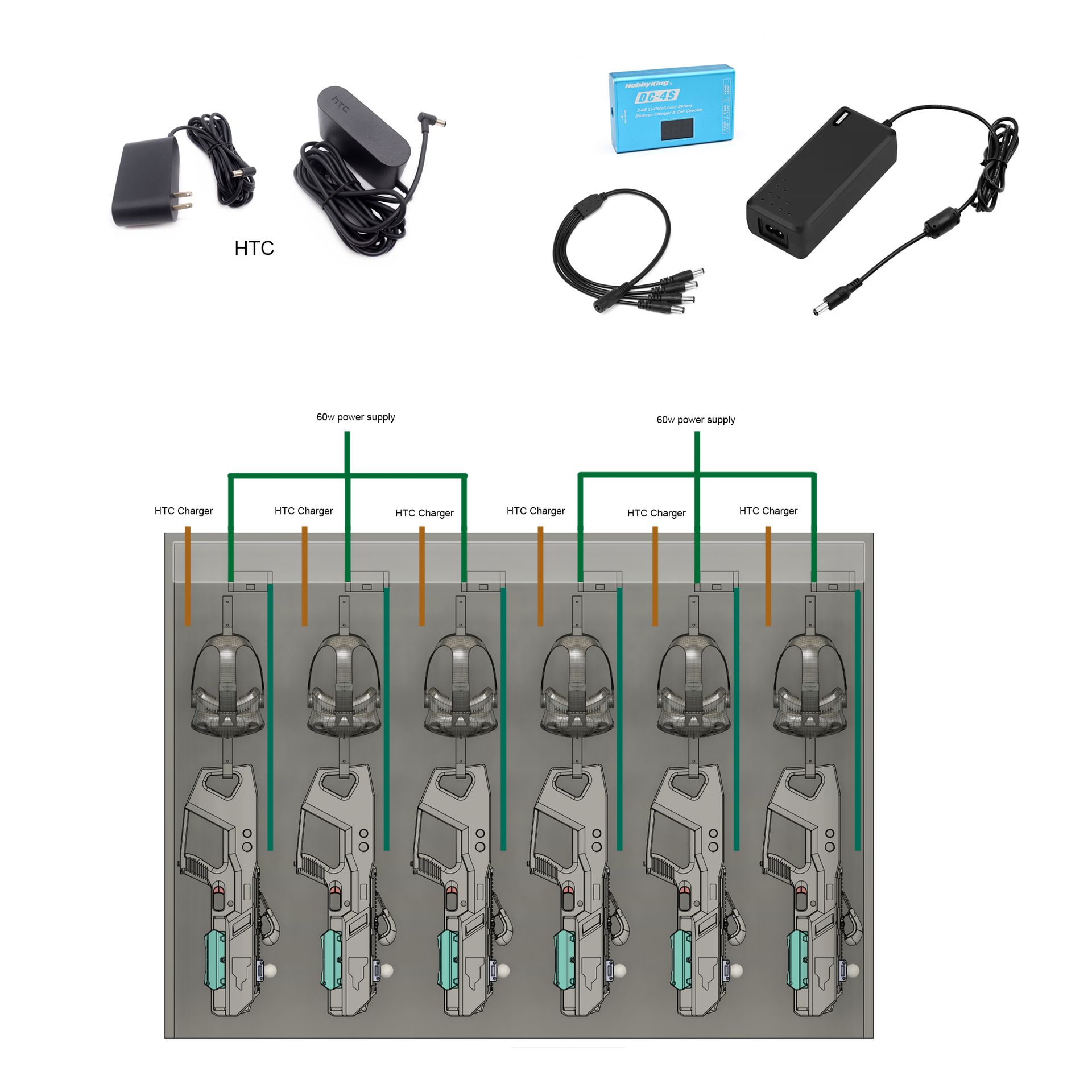

• Wiring diagram attached below.

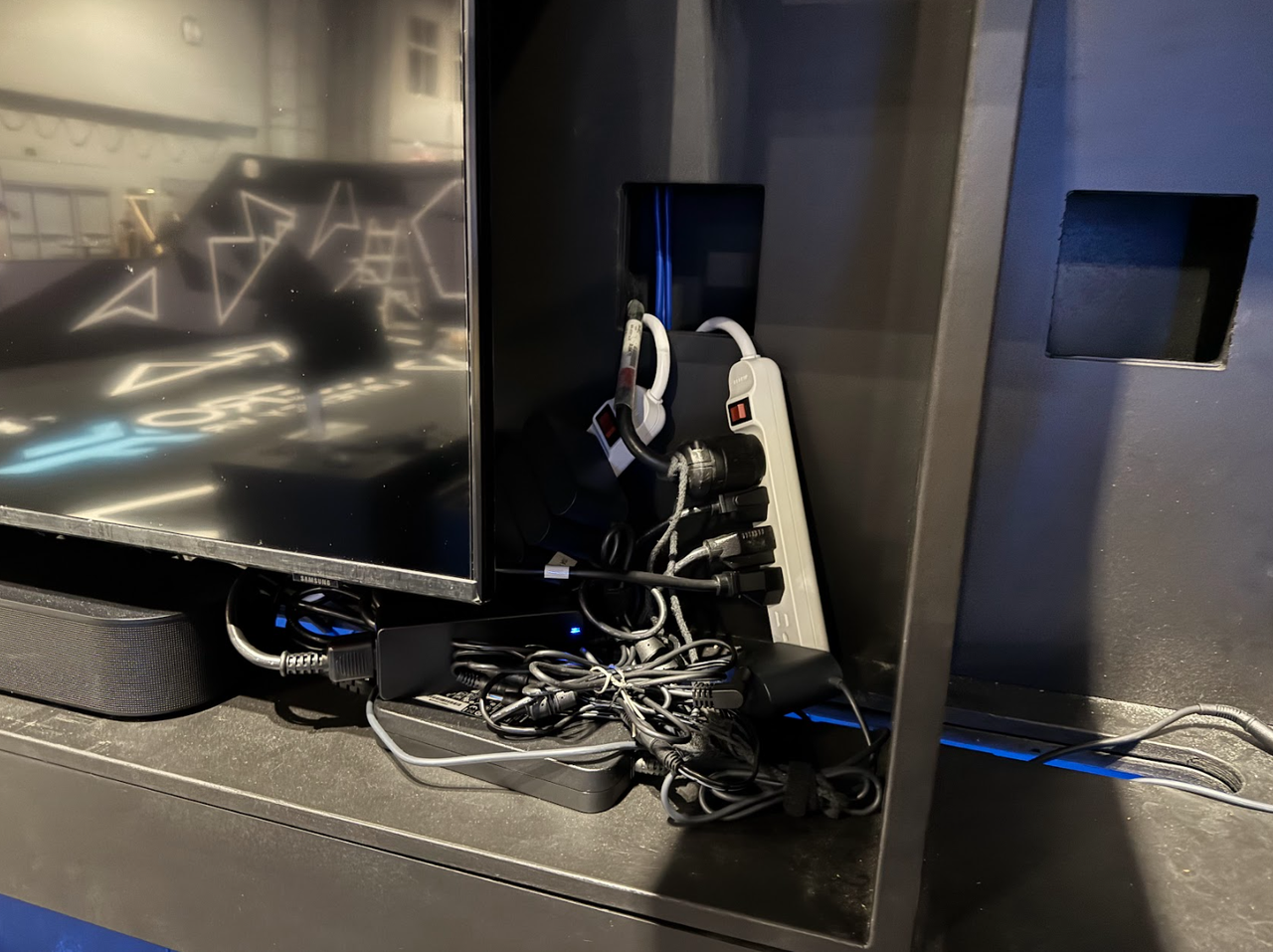

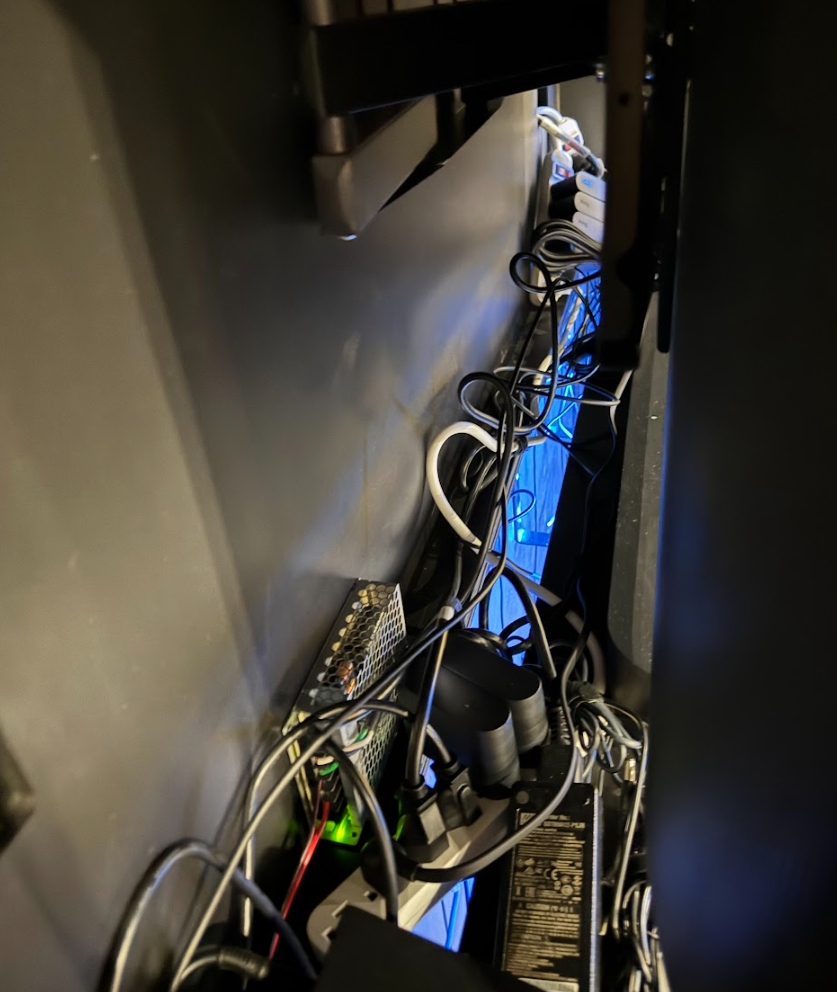

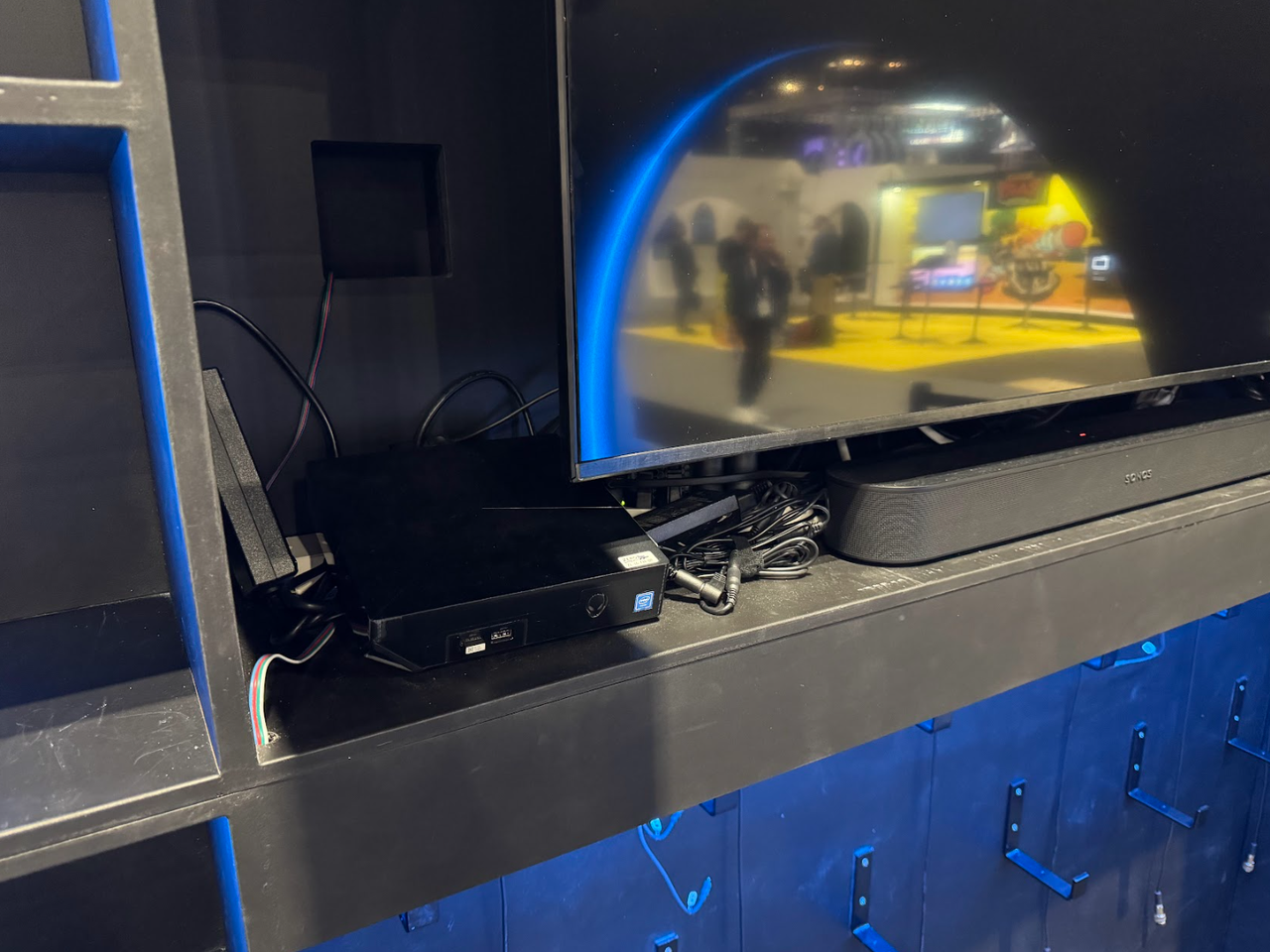

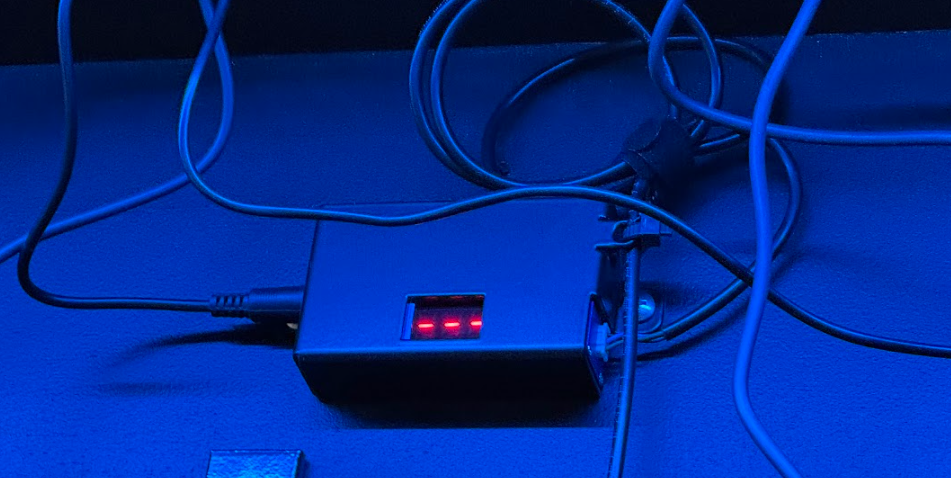

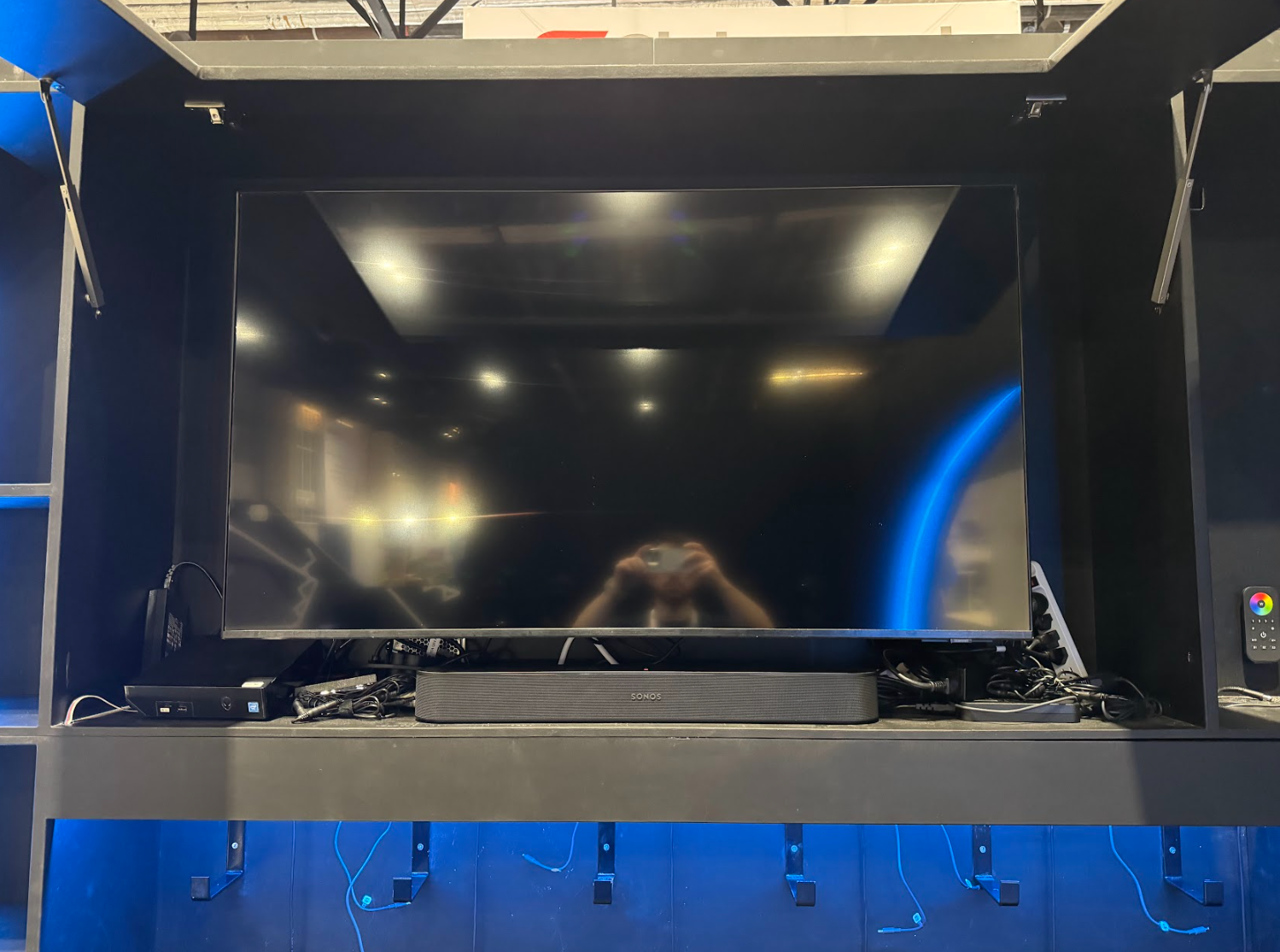

• All HTC Chargers and power cables are routed through the cutout above and stored in the cabinet above as per below pictures.

  Back to top

Spare Equipment hooks and Headset Battery Dock location

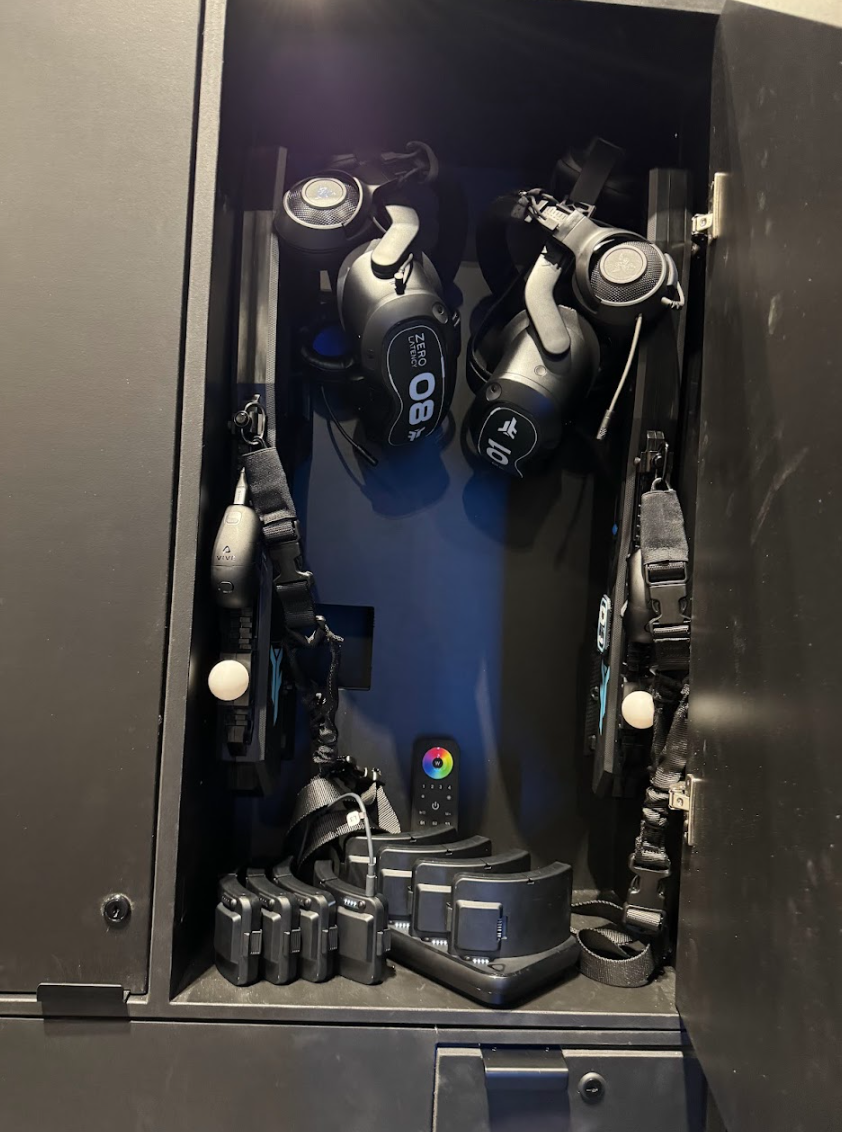

• 2 Hooks can be installed into the top right cupboard of the briefing wall, for 2 sets of equipment to be stored.
• You can also install 2x HTC Battery docks for easy reach HMD Battery charging.

  Back to top
