Controller Assembly (Hand Tracker)

Introduction

Follow these instructions to assemble the Controllers.

Danger

You cannot run mixed controller sets at a Venue. If you are planning to upgrade to the Controller 4s you will need to upgrade your entire controller set.

Time Required

4 hours

Tools & Equipment Required

• Box Cutter
• Screwdriver
• Phillips Head Attachment
• Controller
• Hand Tracker

---

On this page:

  Step 1: Remove from carton

  Step 2: Fit Rail Mount

  Step 3: Fit Sling

  Step 4: Fit HTC hand tracker

---

Step 1: Remove from carton

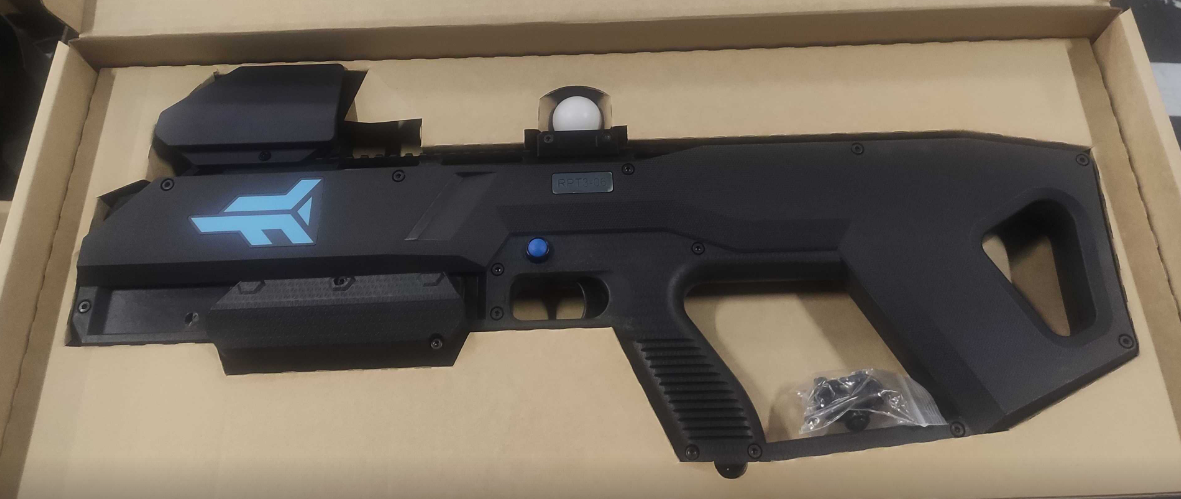

• Find the cartons marked as Game Controller.

  Back to top

Step 2: Fit Rail Mount

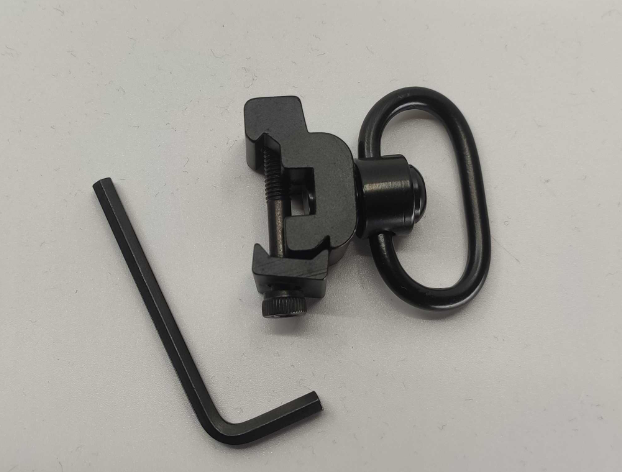

• There will be a number of Rail Mounts supplied inside the carton marked Game Controller.

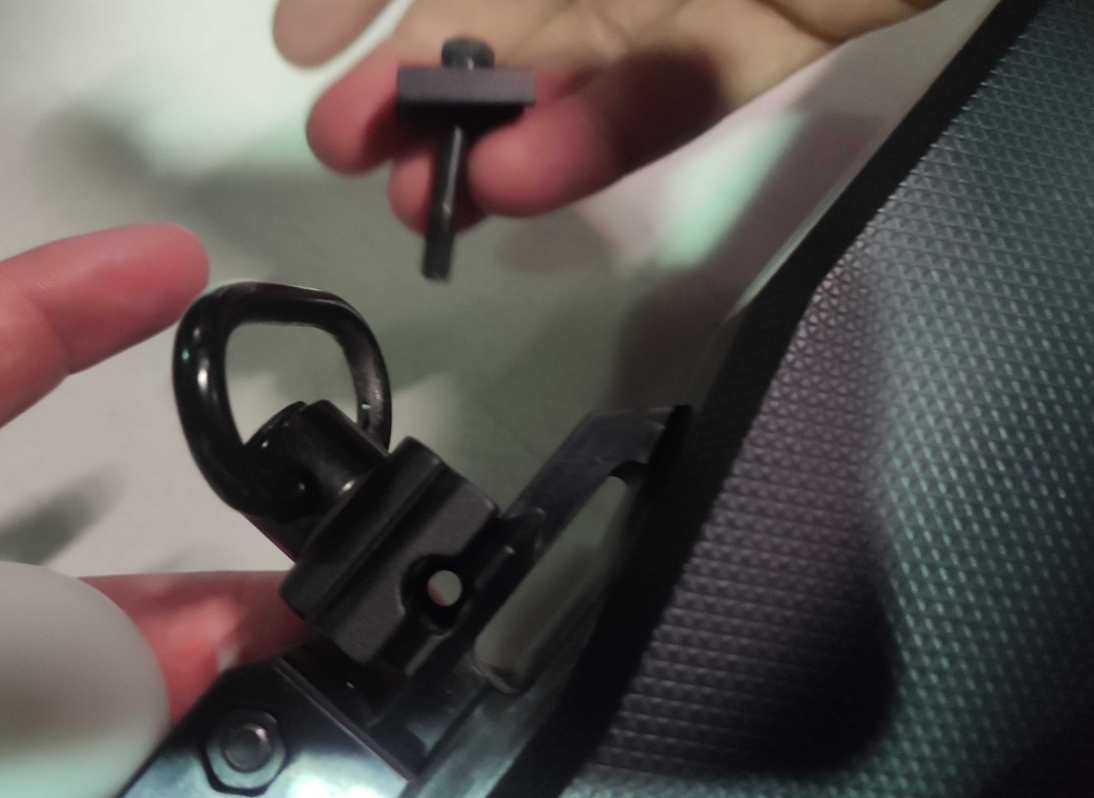

• Take the Rail Mount and place it over the final slot on the Game Controller.

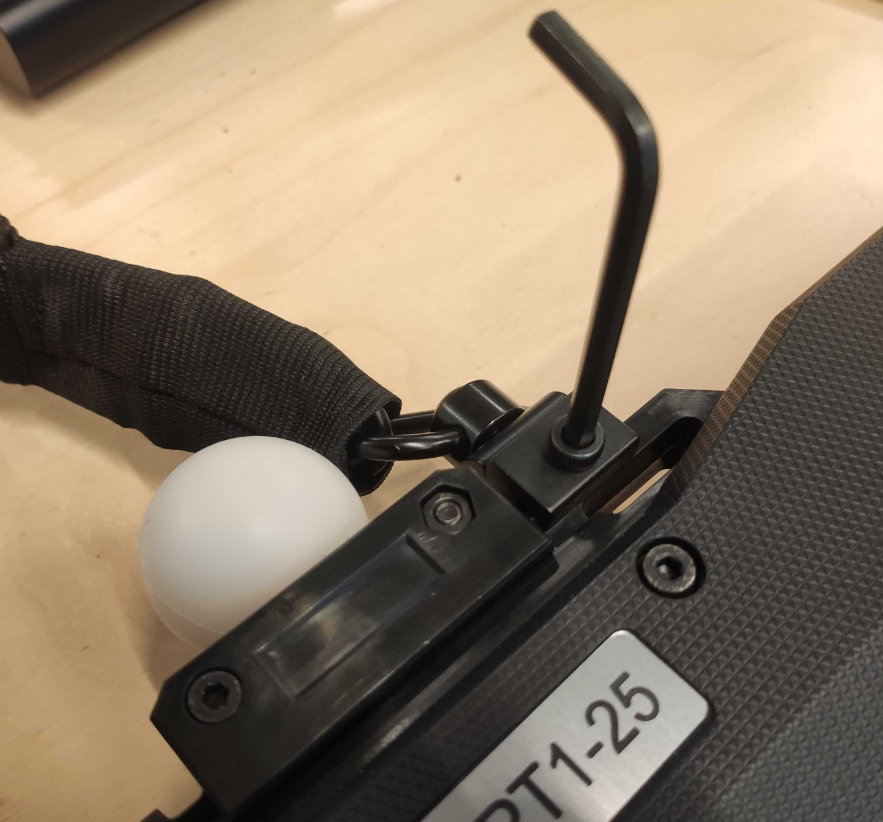

• Place the supplied screw through the hole and tighten the screw to the railing of the Game Controller using the Allen key provided.

  Back to top

Step 3: Fit Sling

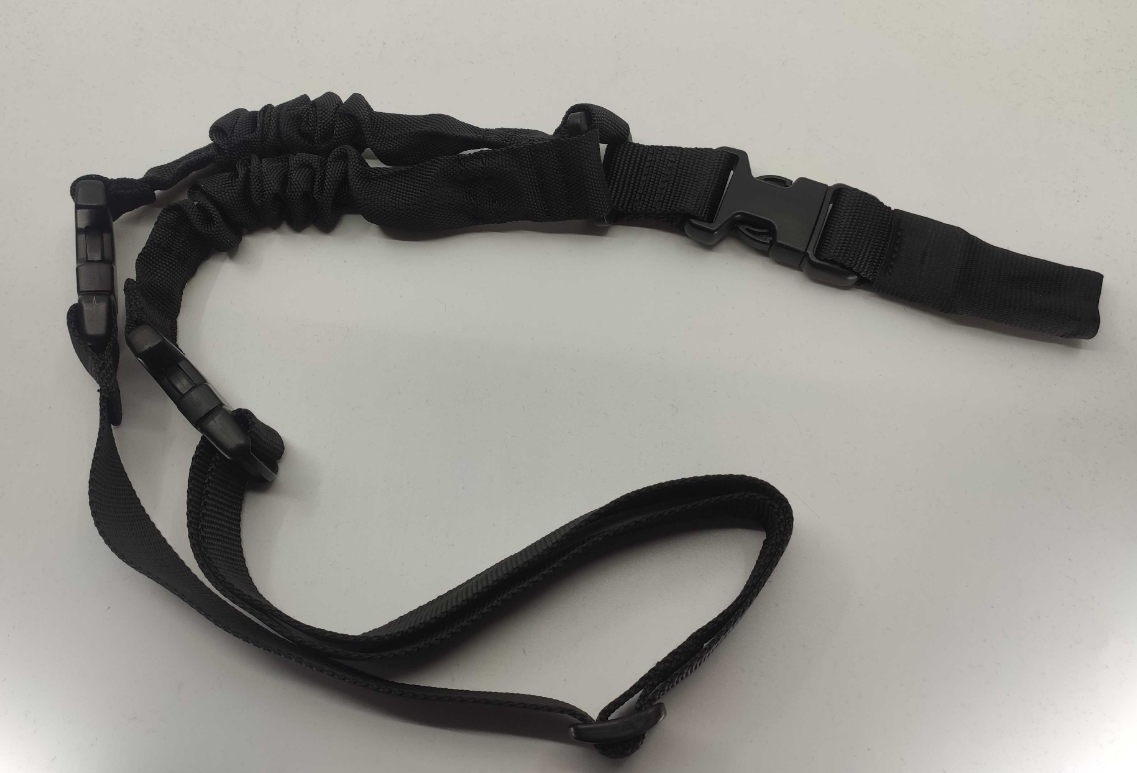

• There will be a number of slings supplied inside the carton marked Game Controller.

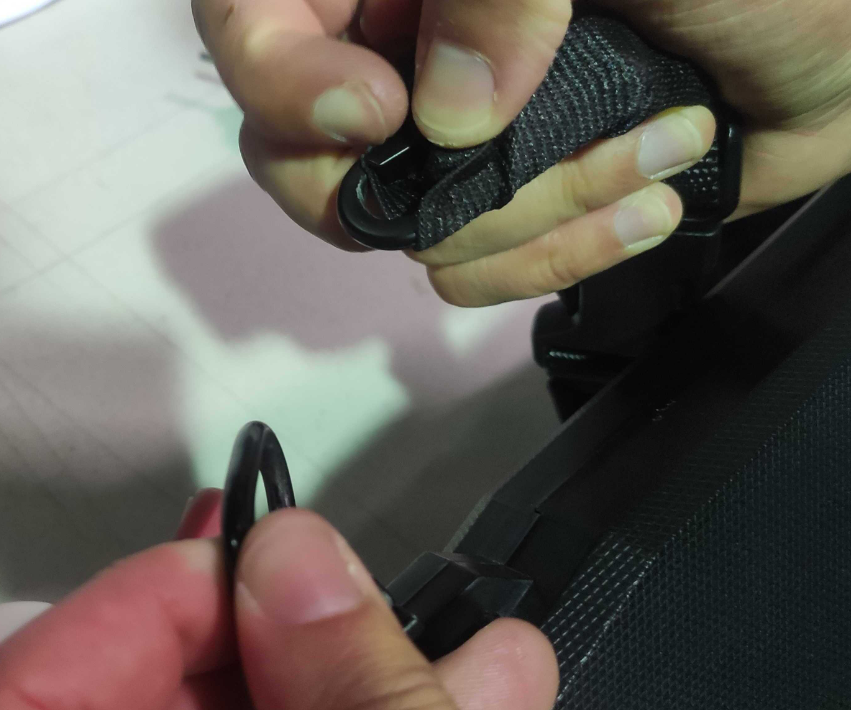

• Pull back the fabric covering the clip on the end of the sling.

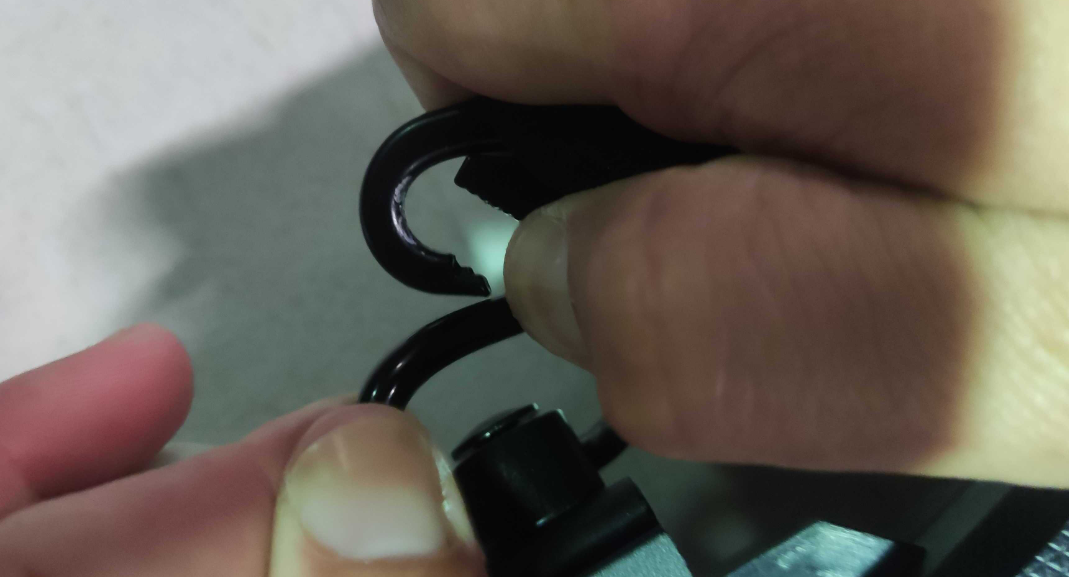

• Push the lever of the clip on the string in and hook it onto the ring on the rail mounted that you attached to the controller in step 2.

  Back to top

Step 4: Fit HTC hand tracker

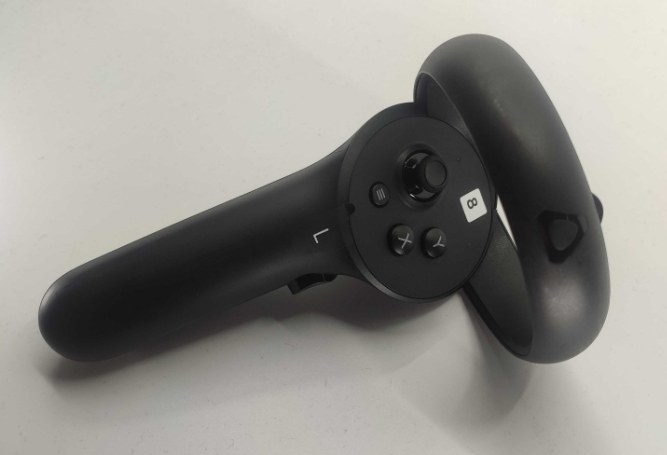

• Remove the left Hand Tracker from its box.
• Remove the hand strap at the end of the Tracker.

• Use the Screwdriver, Preset Torque, 1.2Nm to loosen the Focus 3 Tracker Mount.

• You do not need to remove the Focus 3 Tracker Mount, only loosen it to allow space for the tracker.


• Hold the tracker so that the ring is facing upwards and to the back of the Game Controller.

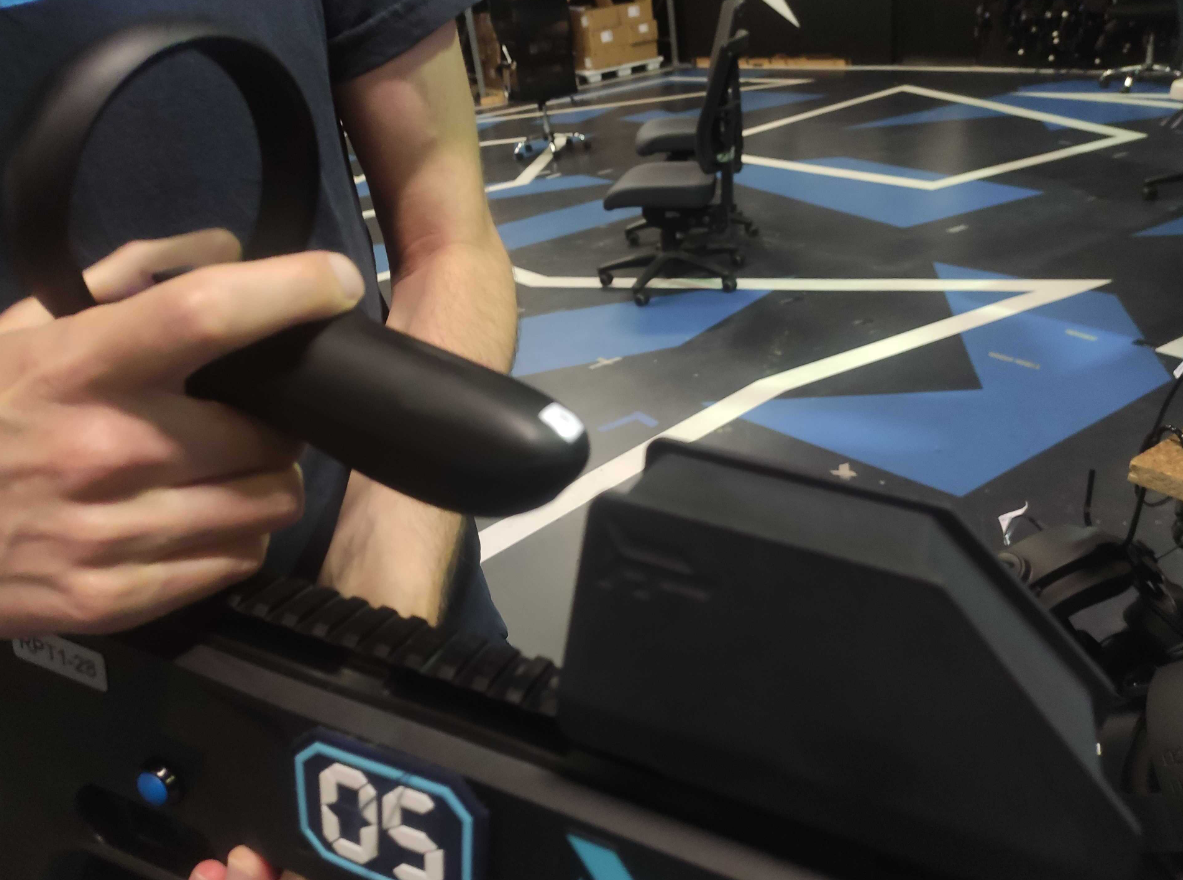

• Gently push the tracker into position into the Focus 3 Tracker Mount on the top of the Game Controller.

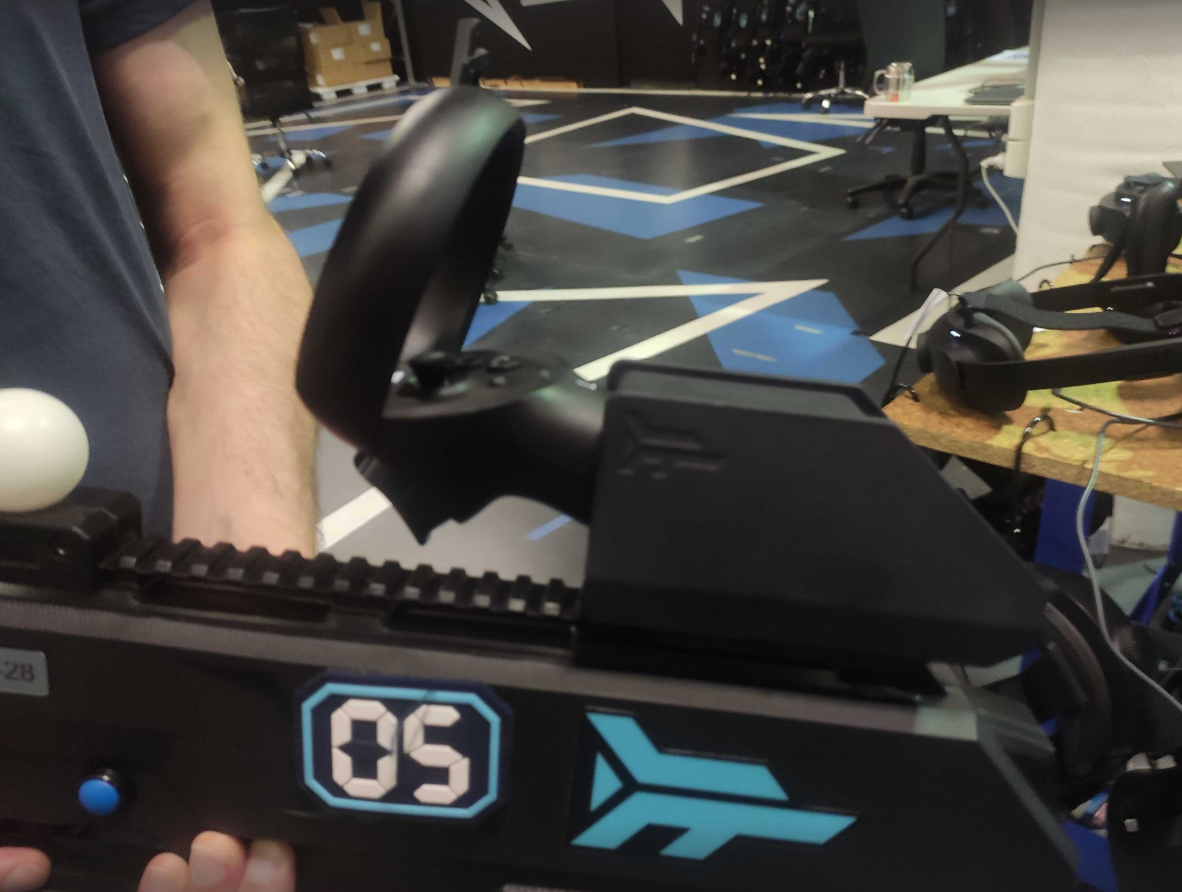

• Use the Screwdriver, Preset Torque, 1.2Nm to grip the Focus 3 Tracker Mount.

  Back to top
