Quantum Enclosure - Power Requirements

Introduction

This guide is only for customers who are installing a 6 player system within a Quantum Enclosure, and explains how much power you need to supply to important components within the Enclosure.

---

On this page:

  Overall Power Requirements list

  Networking and Servers

  Equipment Wall, Charging and Briefing Area

  External TV’s

  LED Lighting

  Game Master Station

  Sign-in Tablet charging desk

---

Overall Power Requirements list

Items	Minimum Wattage Access	6 Player System
Networking (Note: Access Points and PTV Cameras are powered over ethernet through the Network switch)	500W	500W
Server Computers (Each)	450W Each	8x Servers - 3600w
Equipment Charging Wall	700W	700W
Briefing Area TV, computer and Soundbar	700W	700W
External TV(s) (Each)	300W Each	3 TVs - 900W
LED Lighting	500W	500W
Game Master Station (Including Server)	850	850W
Sign-in Tablet Charging Desk	100W	100W
Total		7.85KW (At full load)

  Back to top

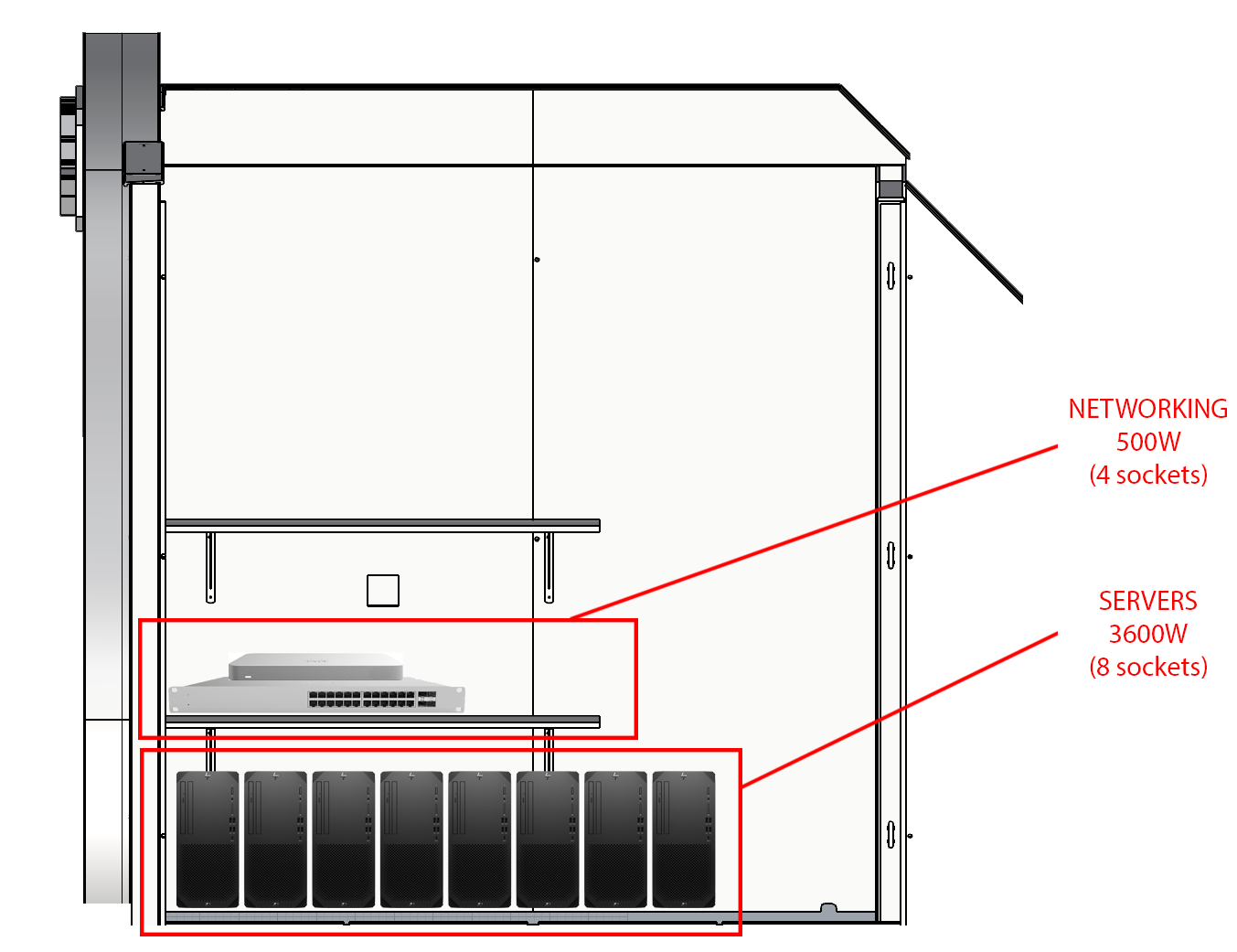

Networking and Servers

• Recommended to have 500w of power for Networking equipment.
  • Power required for the Switch and Gateway.
  • The switch powers all access points and PTV Cameras.
• Recommended to have 3600w of power for 8 Servers.
• Note that servers will only draw this amount when running sessions.

  Back to top

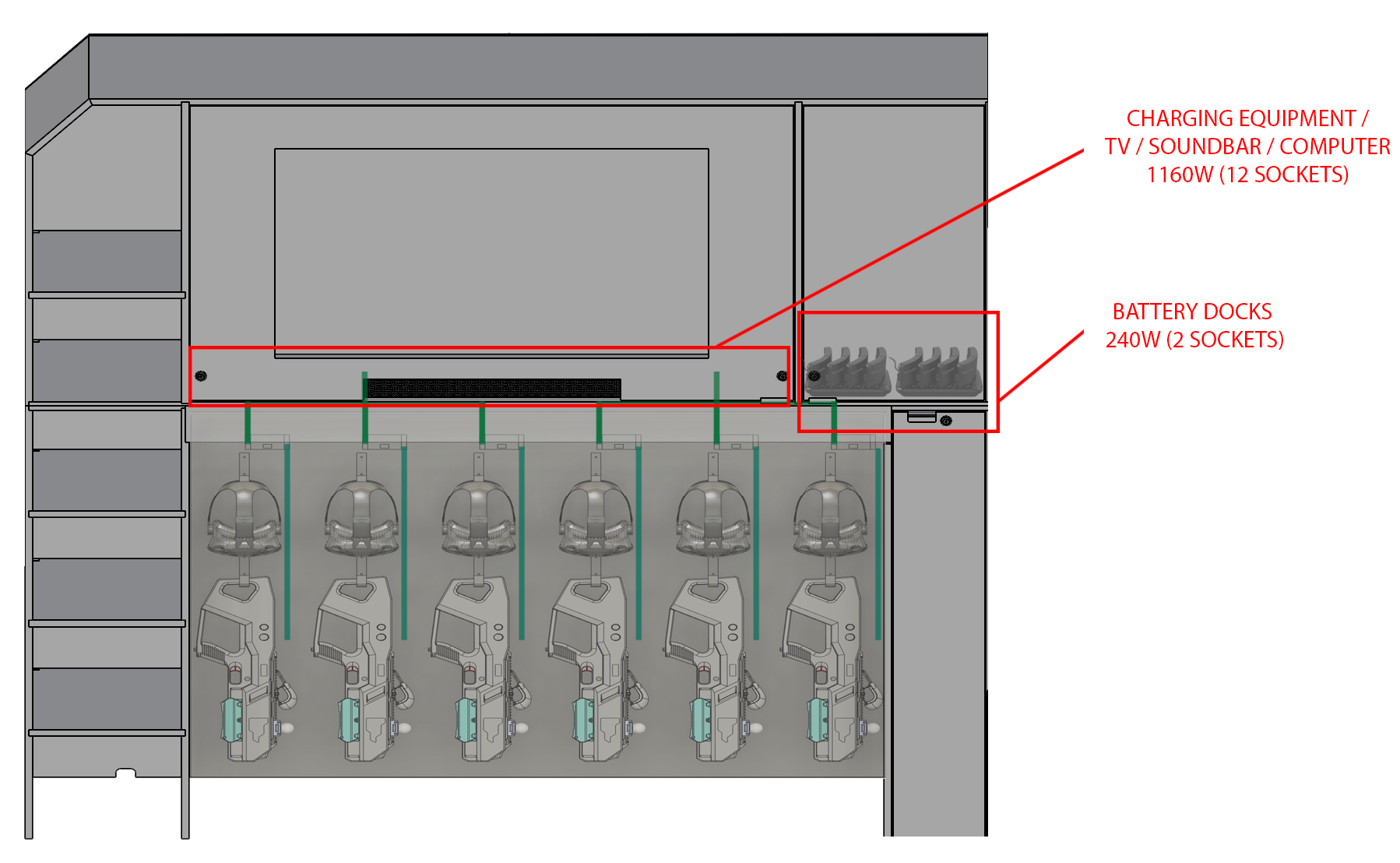

Equipment Wall, Charging and Briefing Area

• Recommended to have 700w of power for the charging sections.
  • Each Headset is charged by a 30W HTC Charger
  • Each set of 3x Controllers are charged by single 120W power supply.
    • 6 Player systems have 2 chargers.
  • Right-side cabinet houses spare equipment, as well as 2x HTC battery docks (120w each).
• Recommended to have an additional 700w of power for the Briefing TV, Briefing Computer and Briefing soundbar.
  • The computer uses a 180w power supply.
  • The soundbar and TV can use up to 500w combined power.

  Back to top

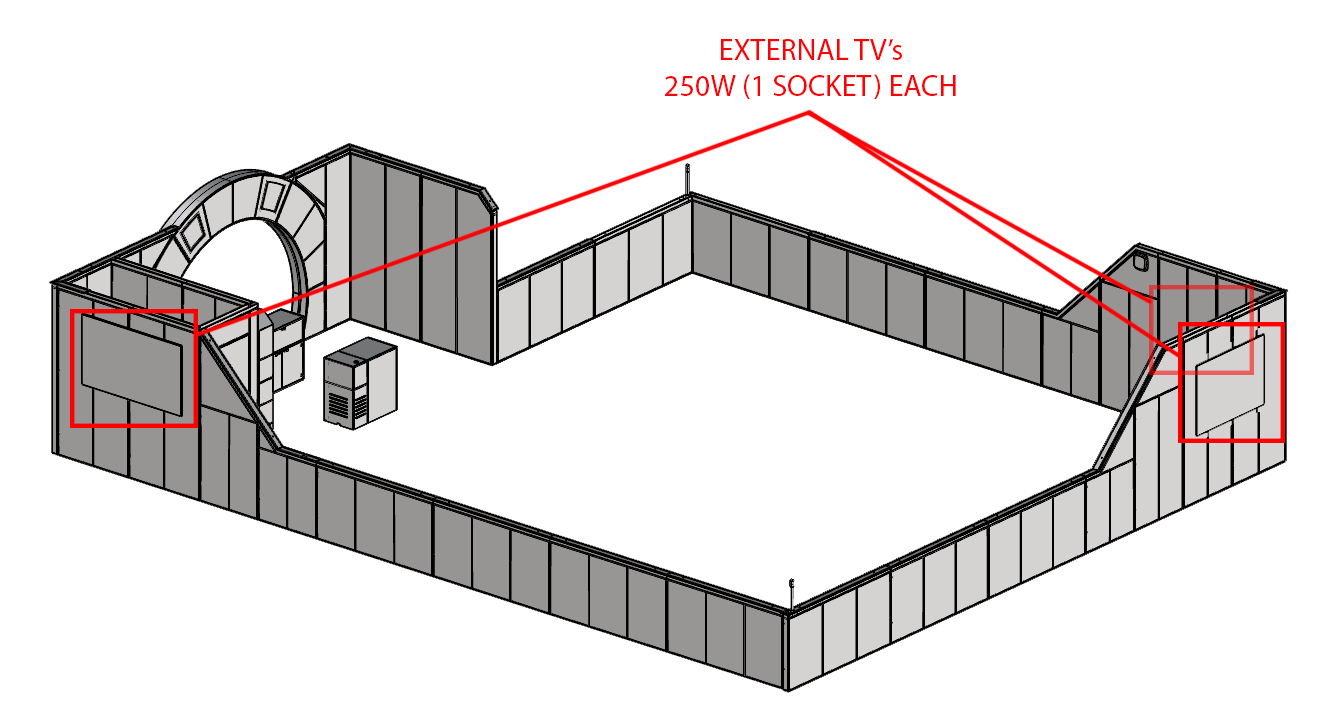

External TV’s

• Recommended to have 300w of power for each external TV.
  • Note: This is the requirement for a 75” TV.
  • Note: You can run power along the walls from the server room, or by another method (floor / ceiling).

  Back to top

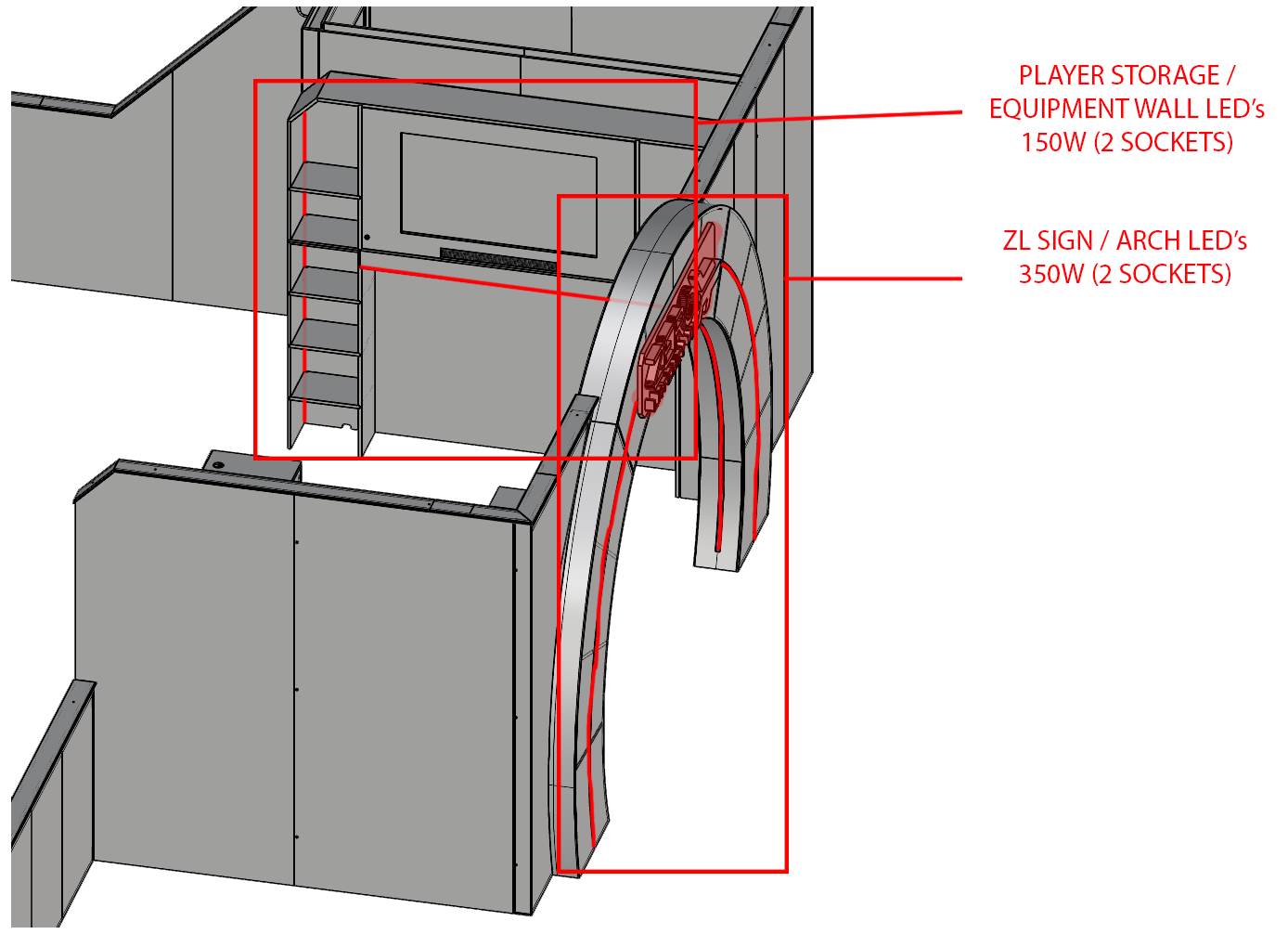

LED Lighting

• Recommended to have 150w of power for the two equipment wall light strips.
• Recommended to have 350w of power for the two archway light strips and for the Zero Latency VR sign.

  Back to top

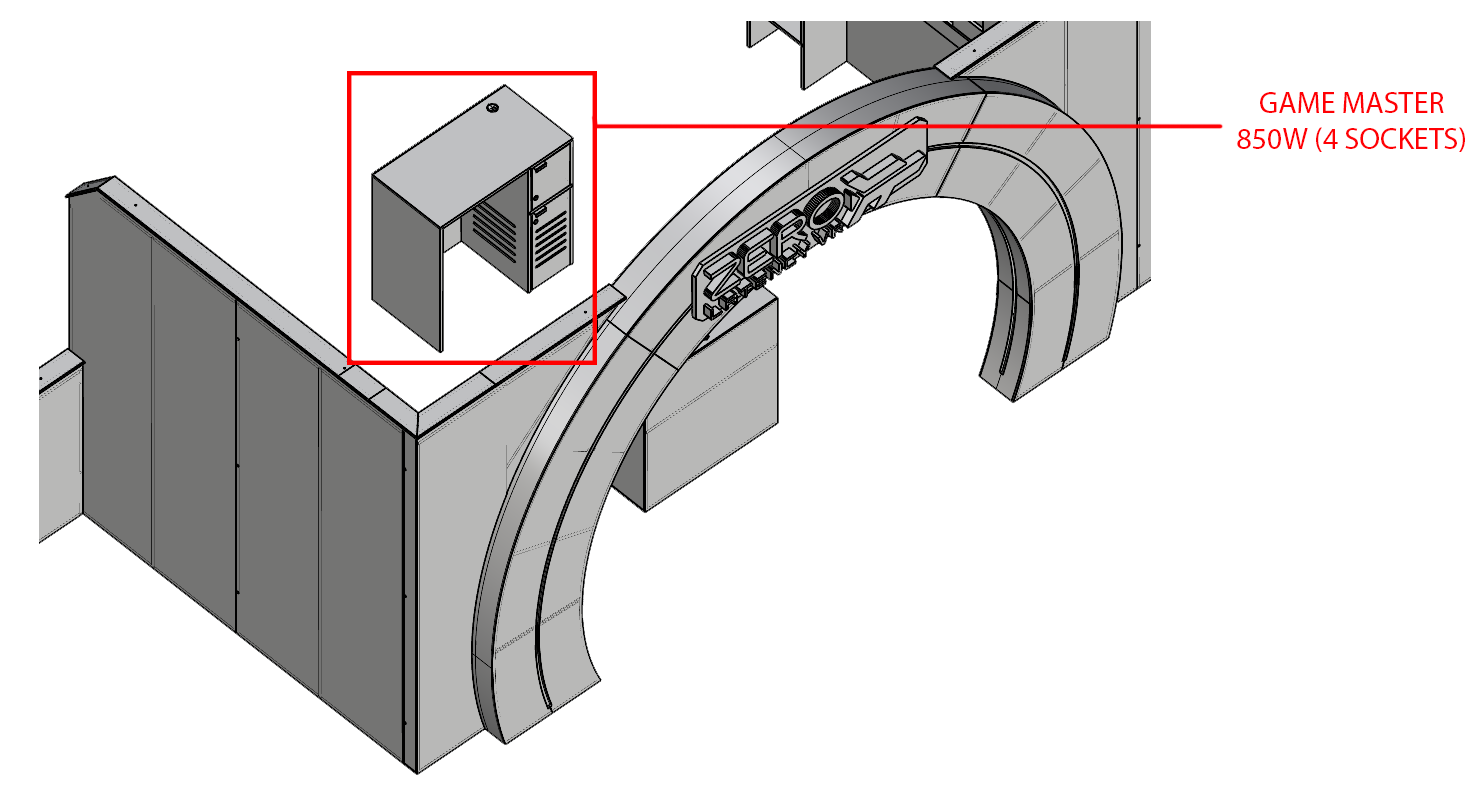

Game Master Station

• Recommended to have 850w of power for Game Master Station
  • 450W for the Game Master Server
  • 400W for the Monitors and accessories

  Back to top

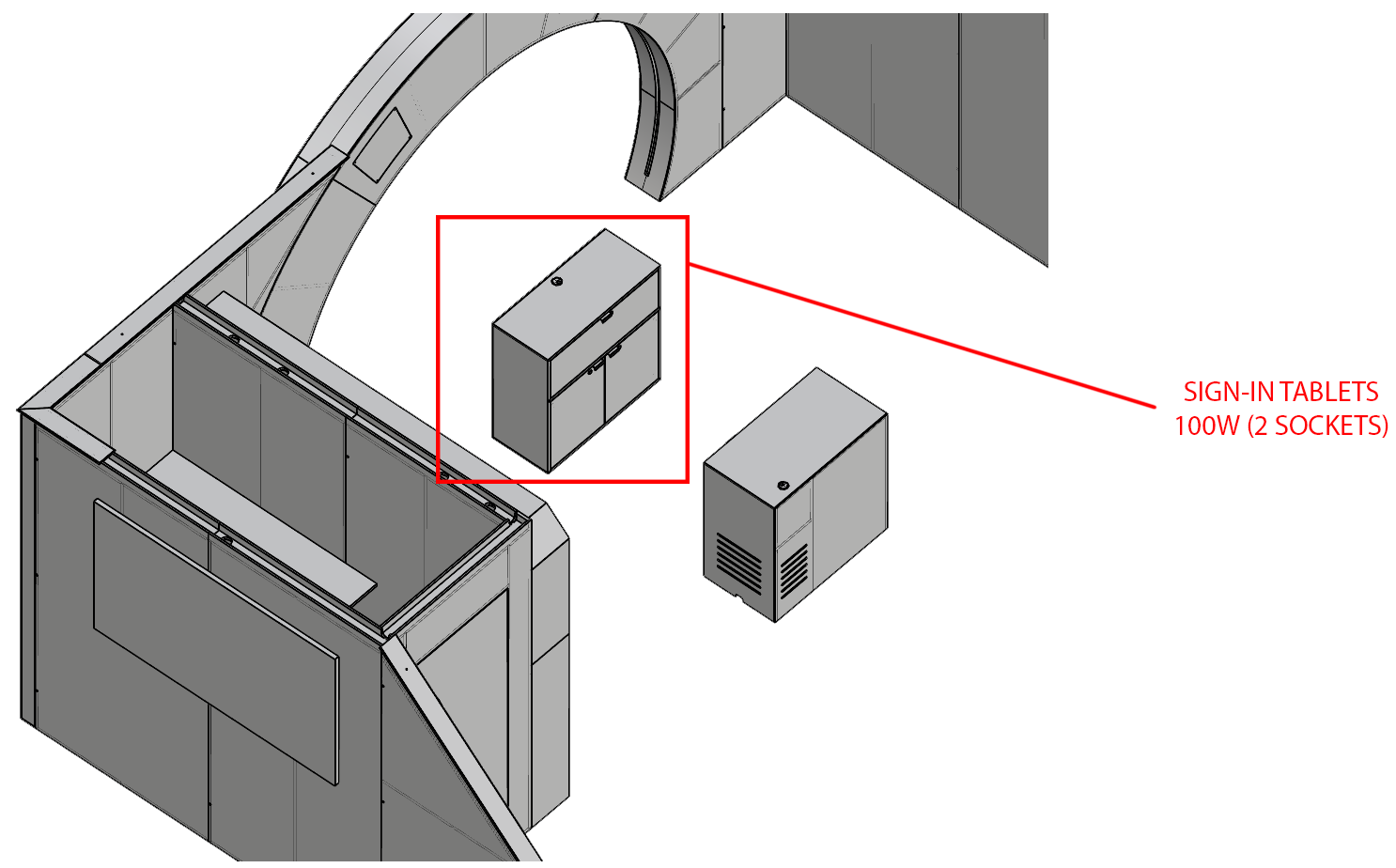

Sign-in Tablet charging desk

• Recommended to have 100w of power for the two sign-in tablets.

  Back to top
