Step 21: Controller Assembly (Wrist Tracker)

Introduction

Follow these instructions to assemble the Controllers.

Time Required

4 hours

Tools and Equipment Required

• Controllers
• Wrist Tracker
• Controller Sling
• Service Technician Tools

---

On this page:

  Step 1: Locate the required equipment

  Step 2: Install the Sling mount

  Step 3: Install the Wrist Tracker + Mount

  Step 4: Attach the Sling to the mount

---

Step 1: Locate the required equipment

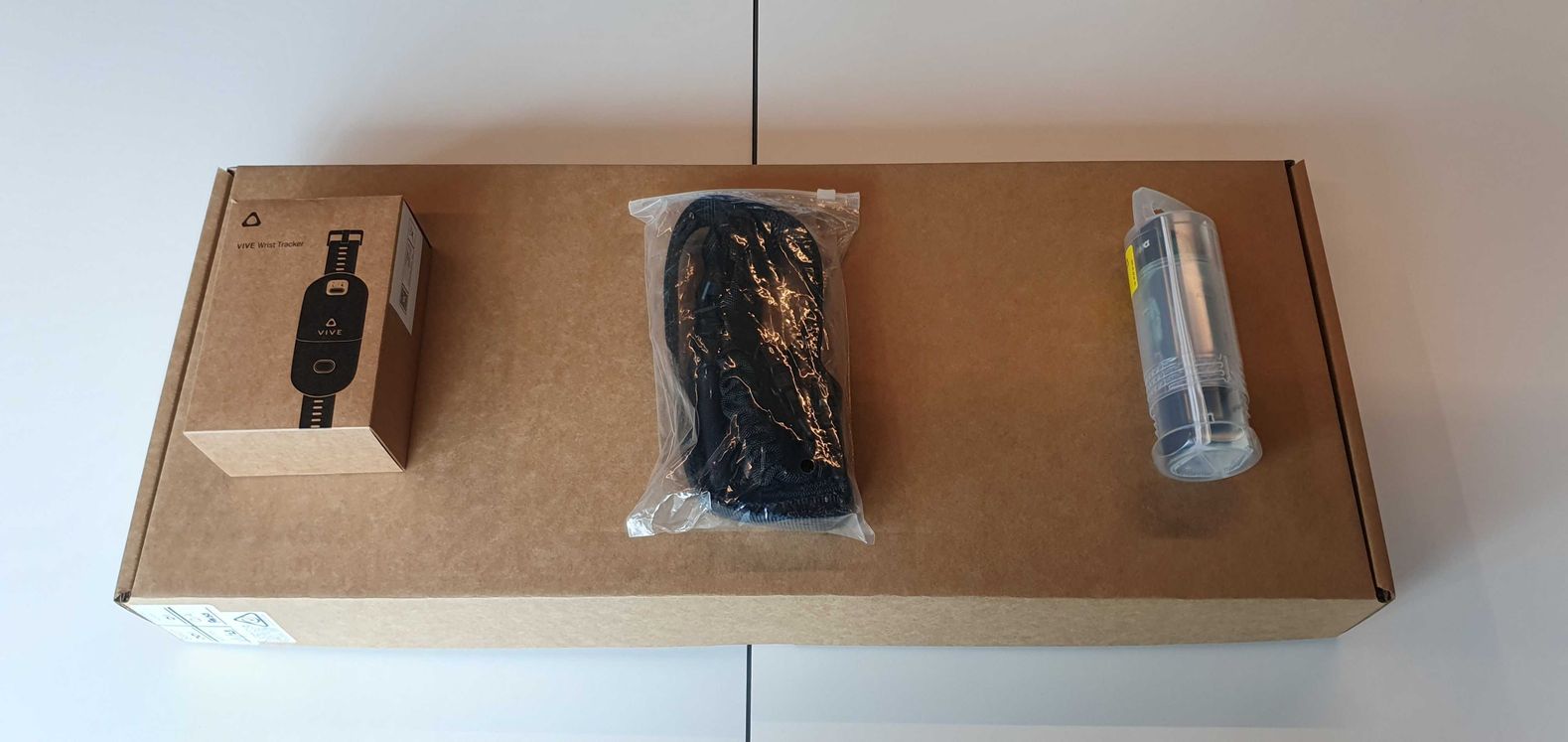

• Gather the following equipment;

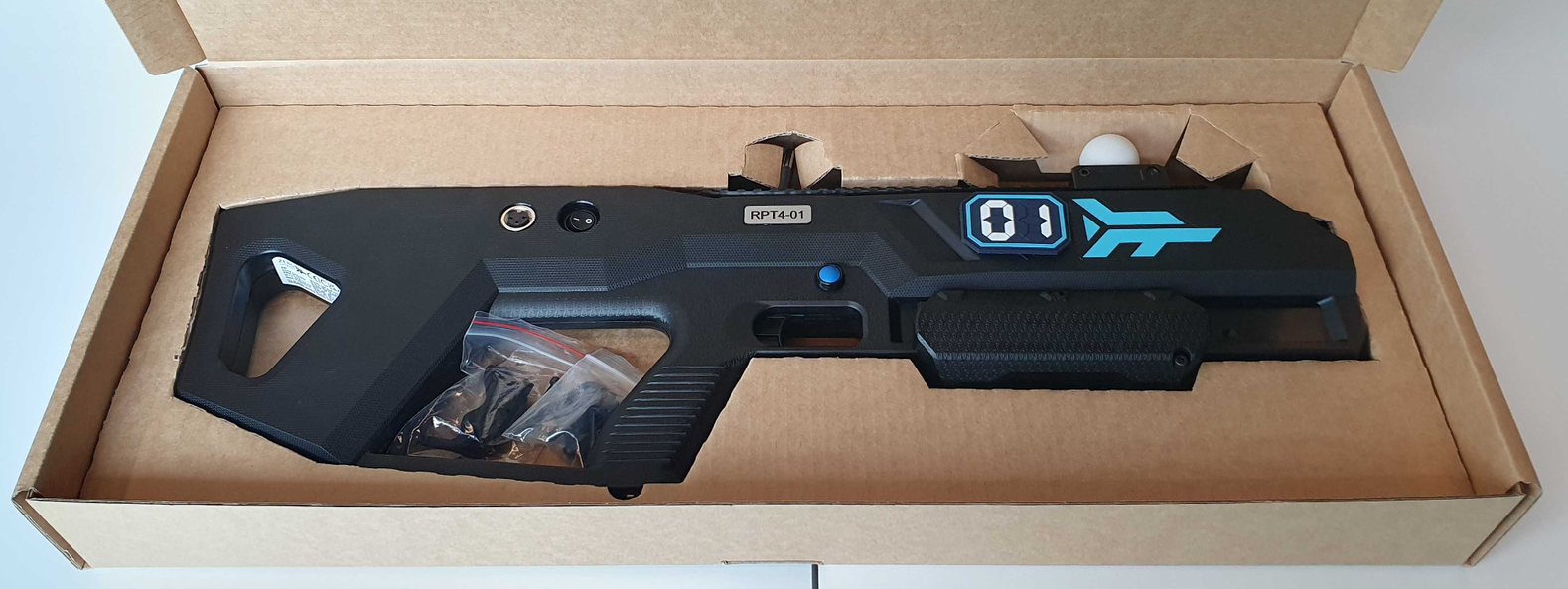

  • Controller Cartons
  • Wrist Tracker box
  • Controller Sling
  • Screw Driver
  • 5 Torx bit
  • 8 Hex bit

Caution

These items may not all be located in a single box and may be spread out amongst several.

  Back to top

Step 2: Install the Sling mount

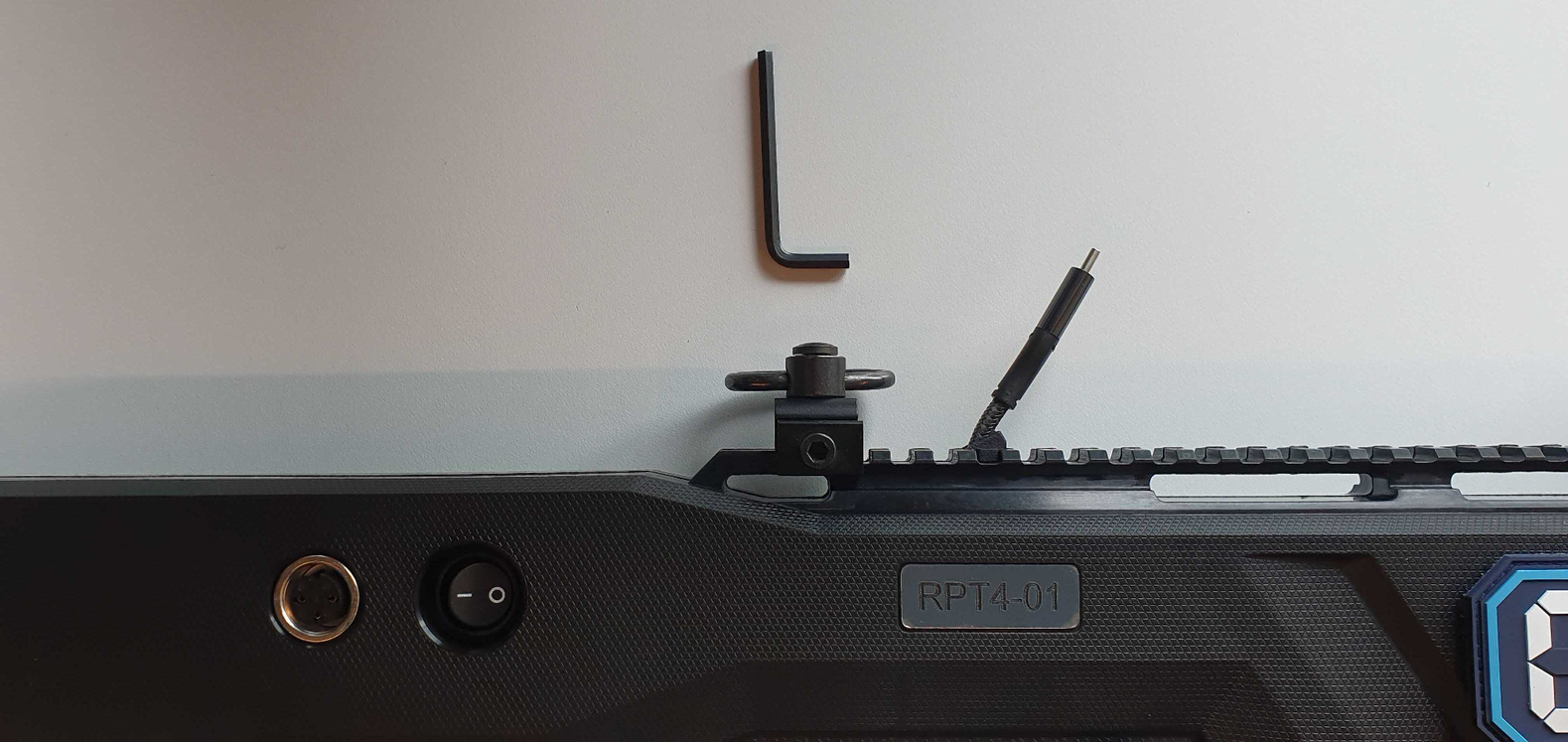

• Take the mount out of the bag.
• Loosen the bolt on the mount so that it will fit over the Picatinny rail on the top of the controller.
• Place the mount on the rearmost location on the Picatinny rail.

• Tighten the mounting bolt with the Allen key until it is finger tight.

  Back to top

Step 3: Install the Wrist Tracker + Mount

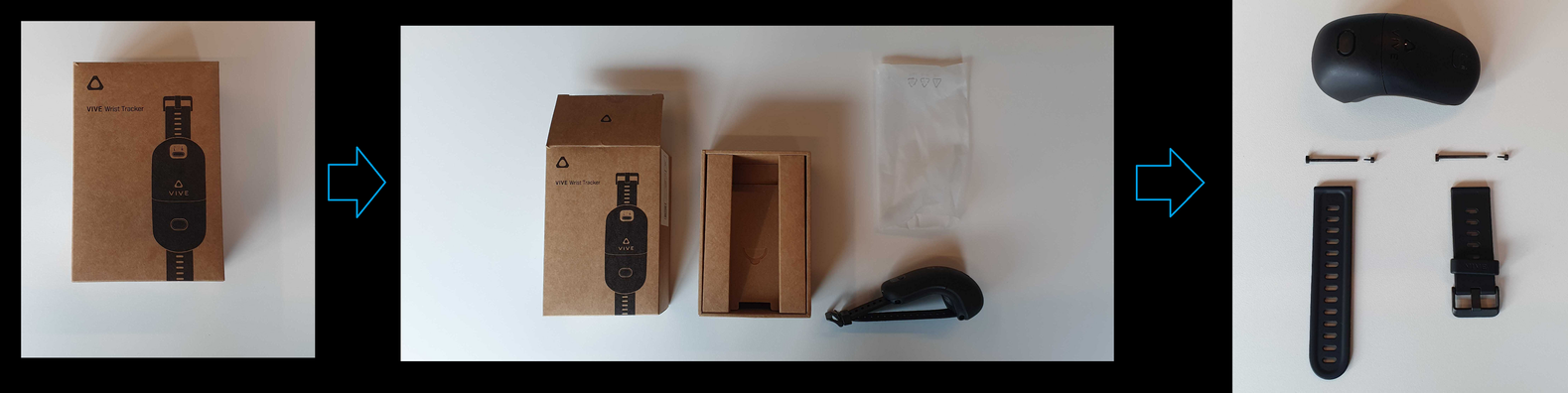

• Remove the Wrist Tracker from the packaging.
• Use the Torx 5 bit to remove the wrist straps from the Wrist Tracker.

Warning

Do not throw the wrist straps away. Keep and store them in a safe location as they may be used in the future.

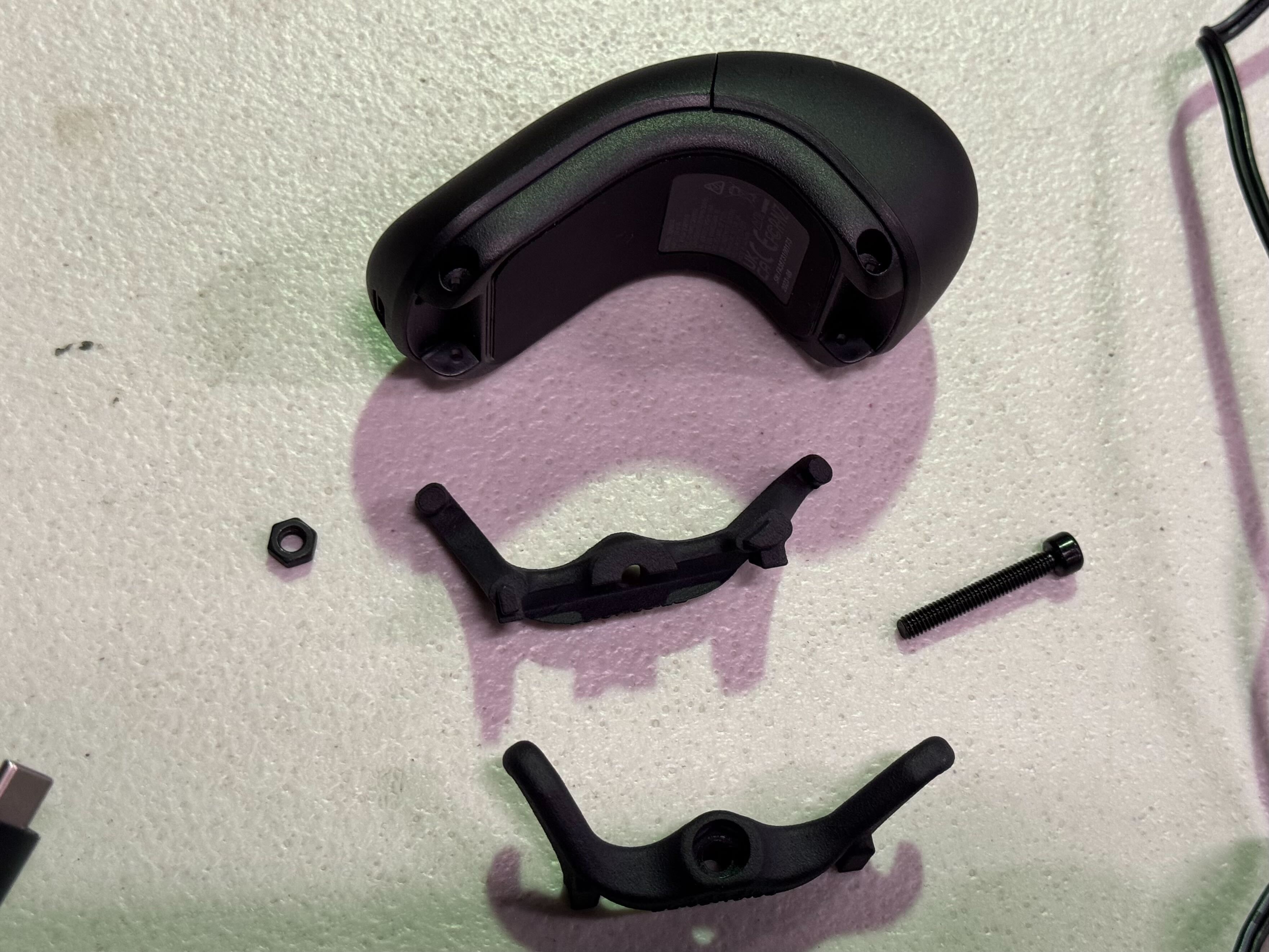

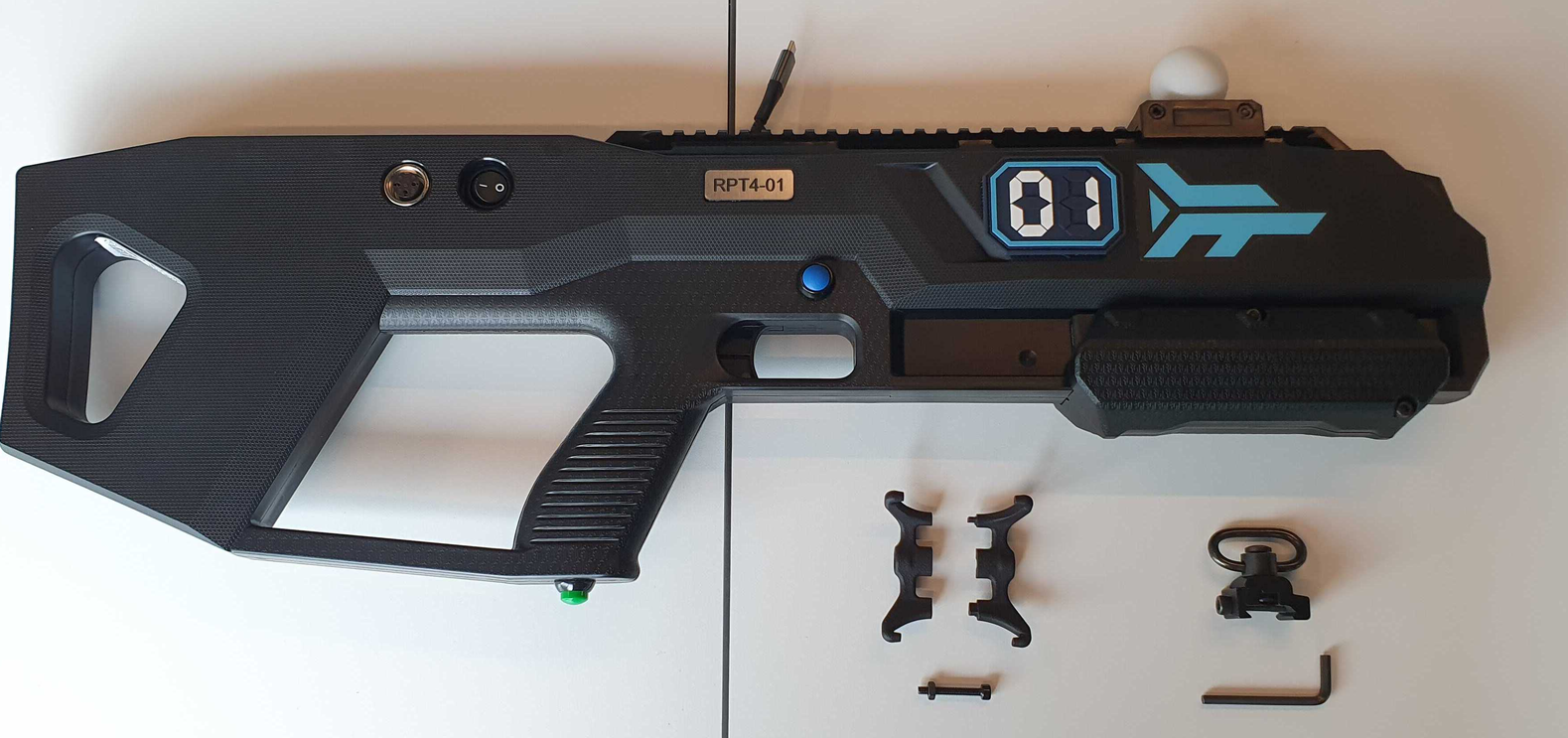

• Ensure you have:
  • Controller
  • Screwdriver
  • Wrist Tracker (without wrist straps)
  • Hex Nut
  • Screw
  • Left and Right write tracker mount halves

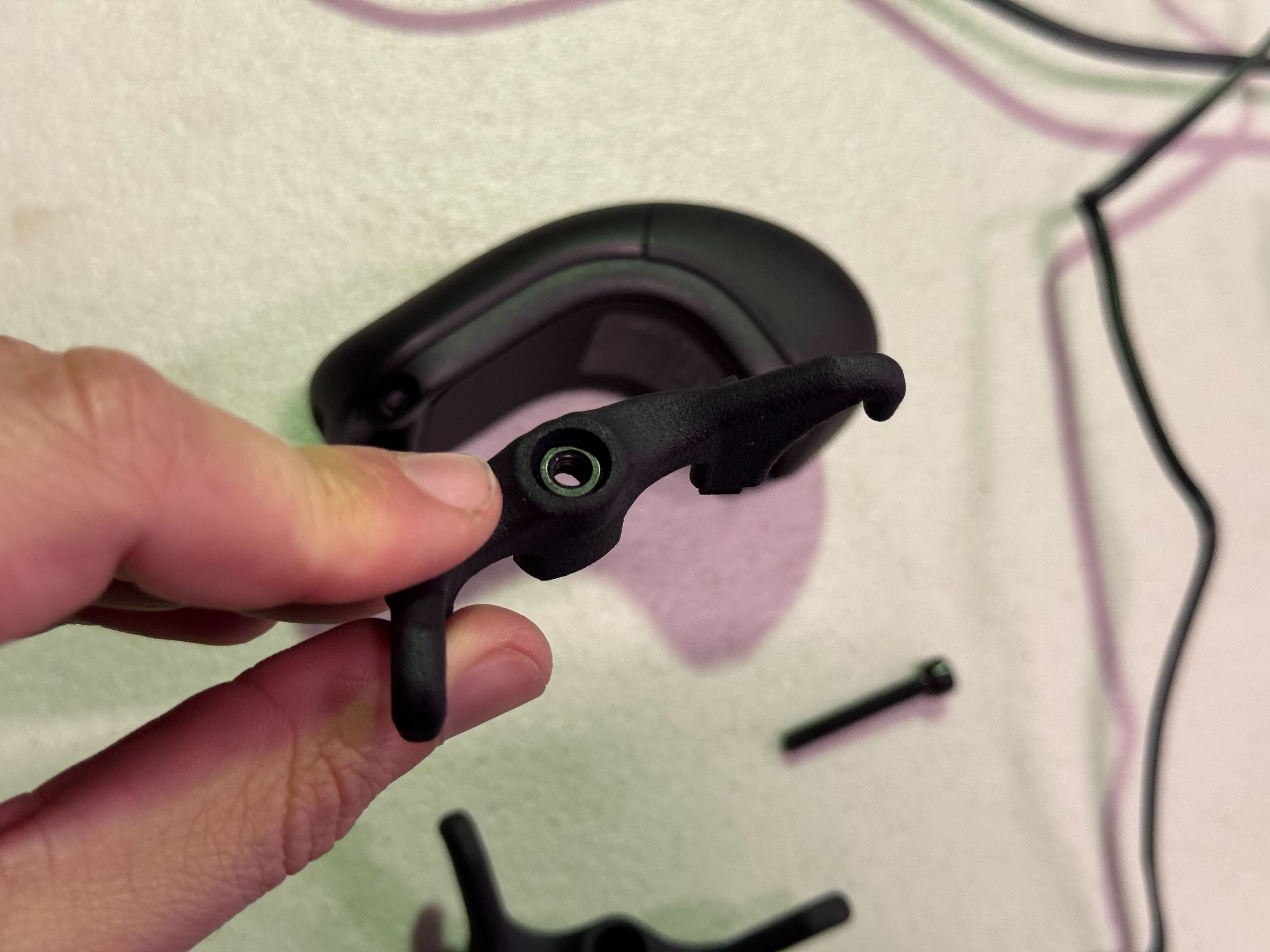

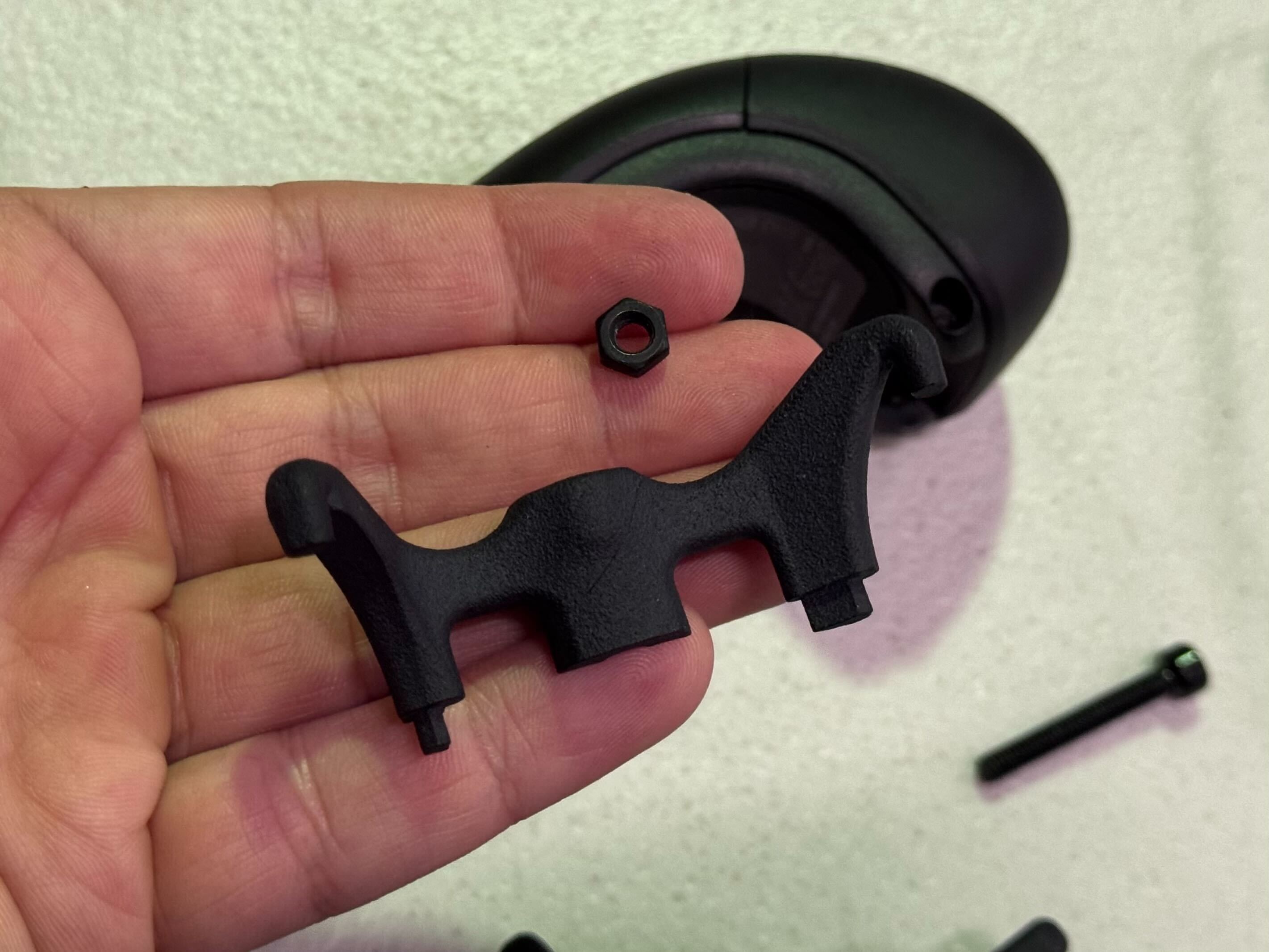

• Place Hex Nut into wrist tracker mount half.

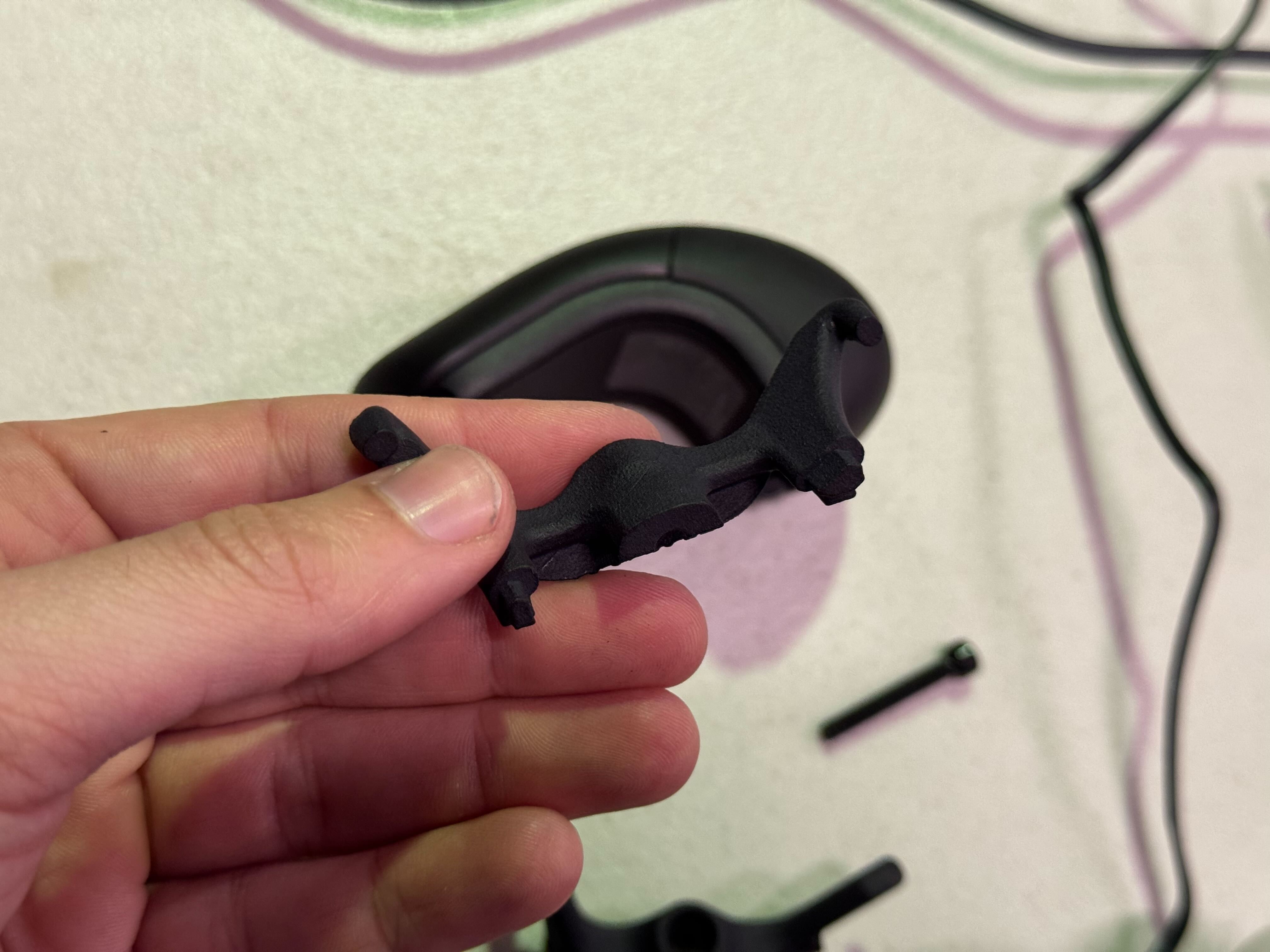

• Hold the nut in place with your index finger, then place the half tracker mount onto the controller chassis.

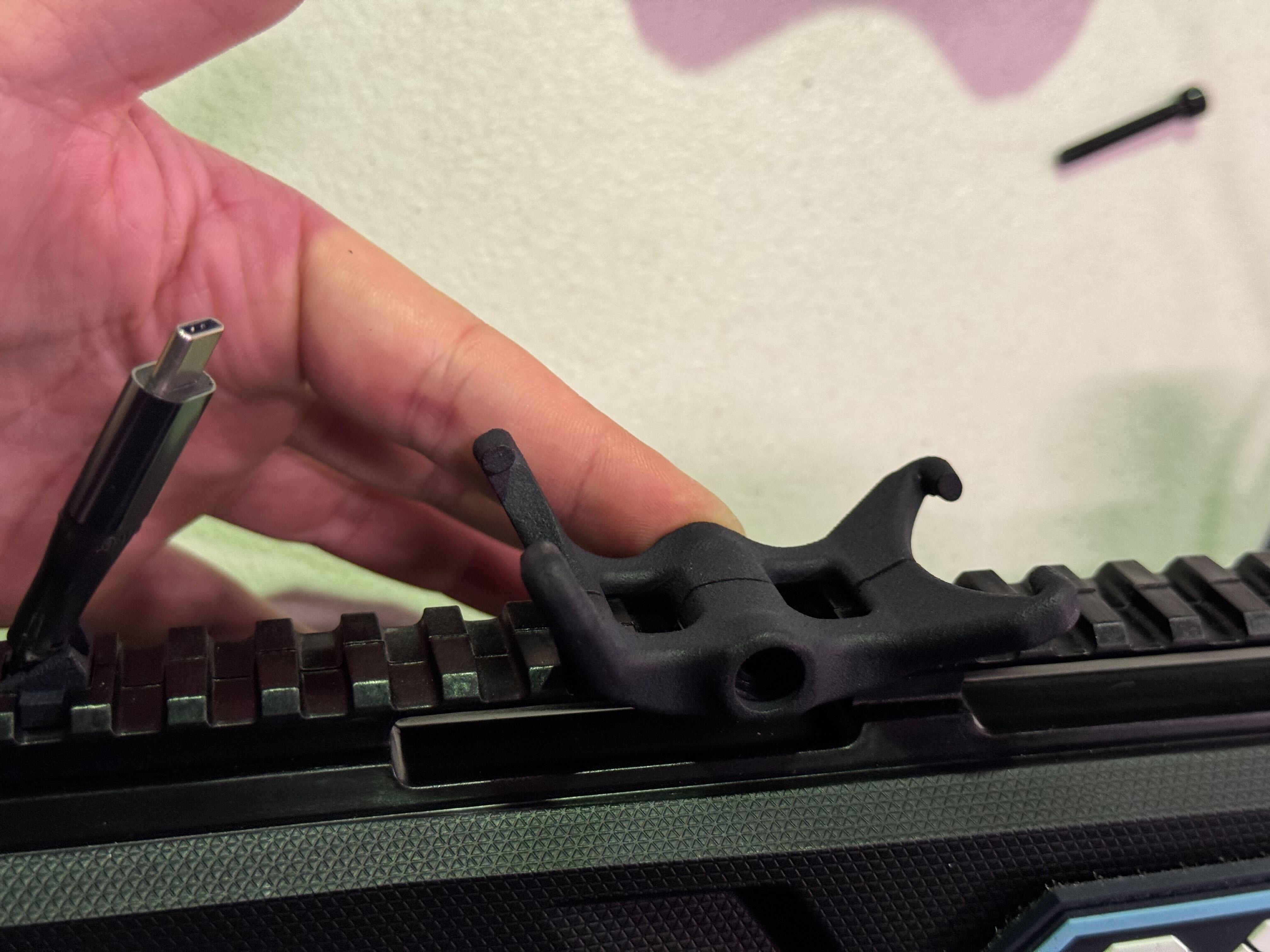

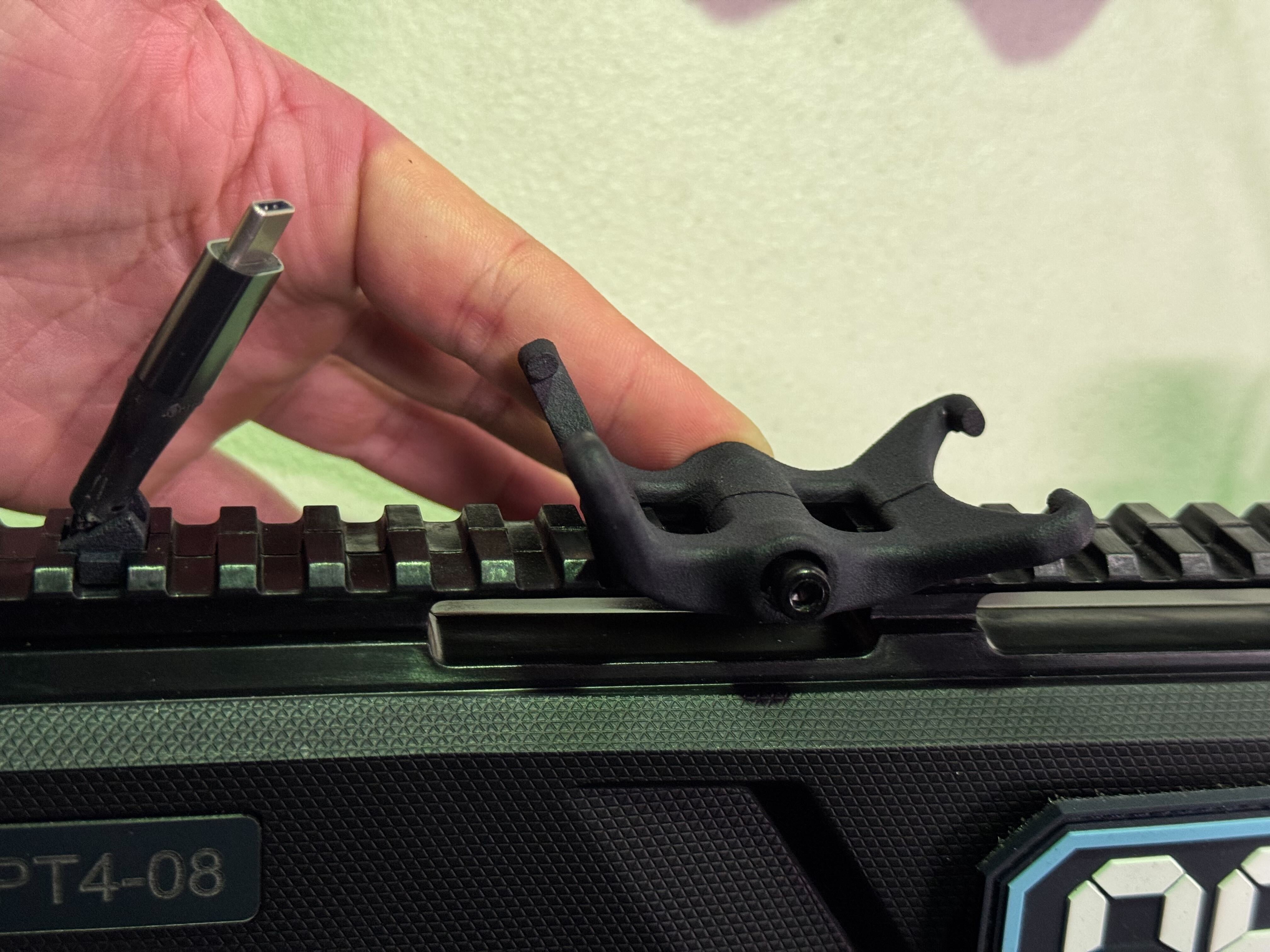

• With your screw ready, connect the second half of the tracker mount onto the controller chassis, then slide the screw through it.

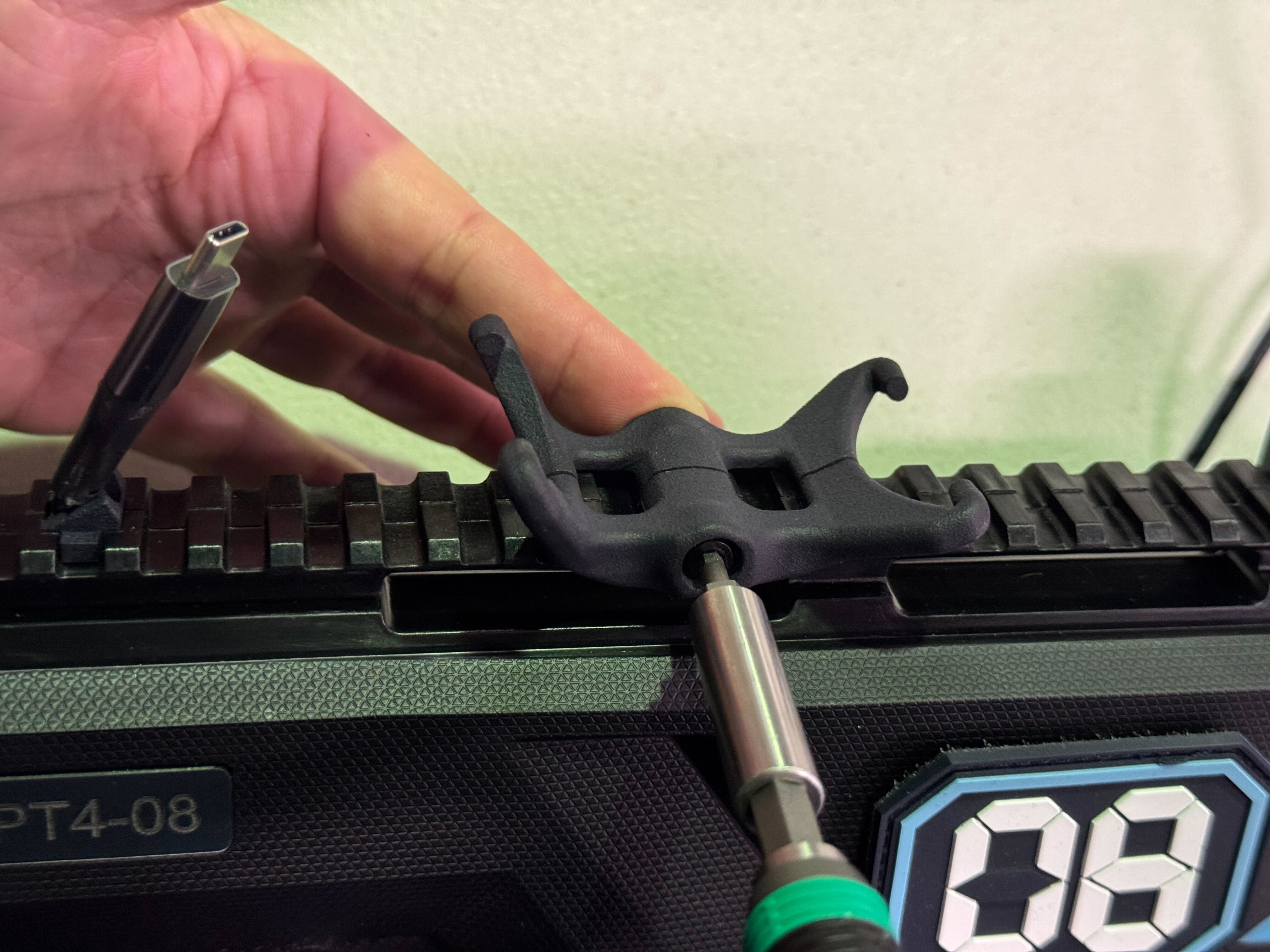

• Carefully use a screwdriver to lightly tighten the screw (two full rotations), so that it is held together but not tight yet.

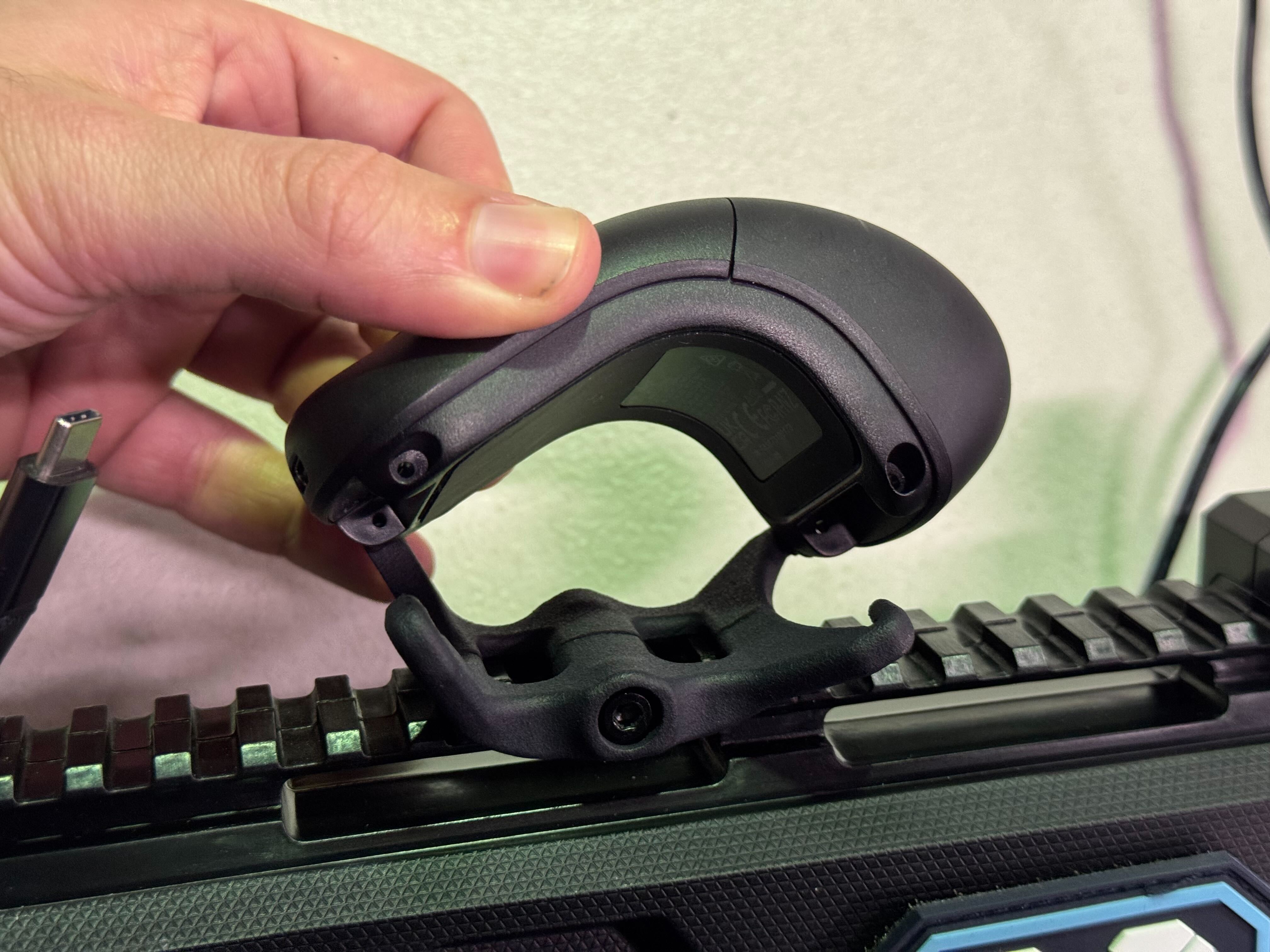

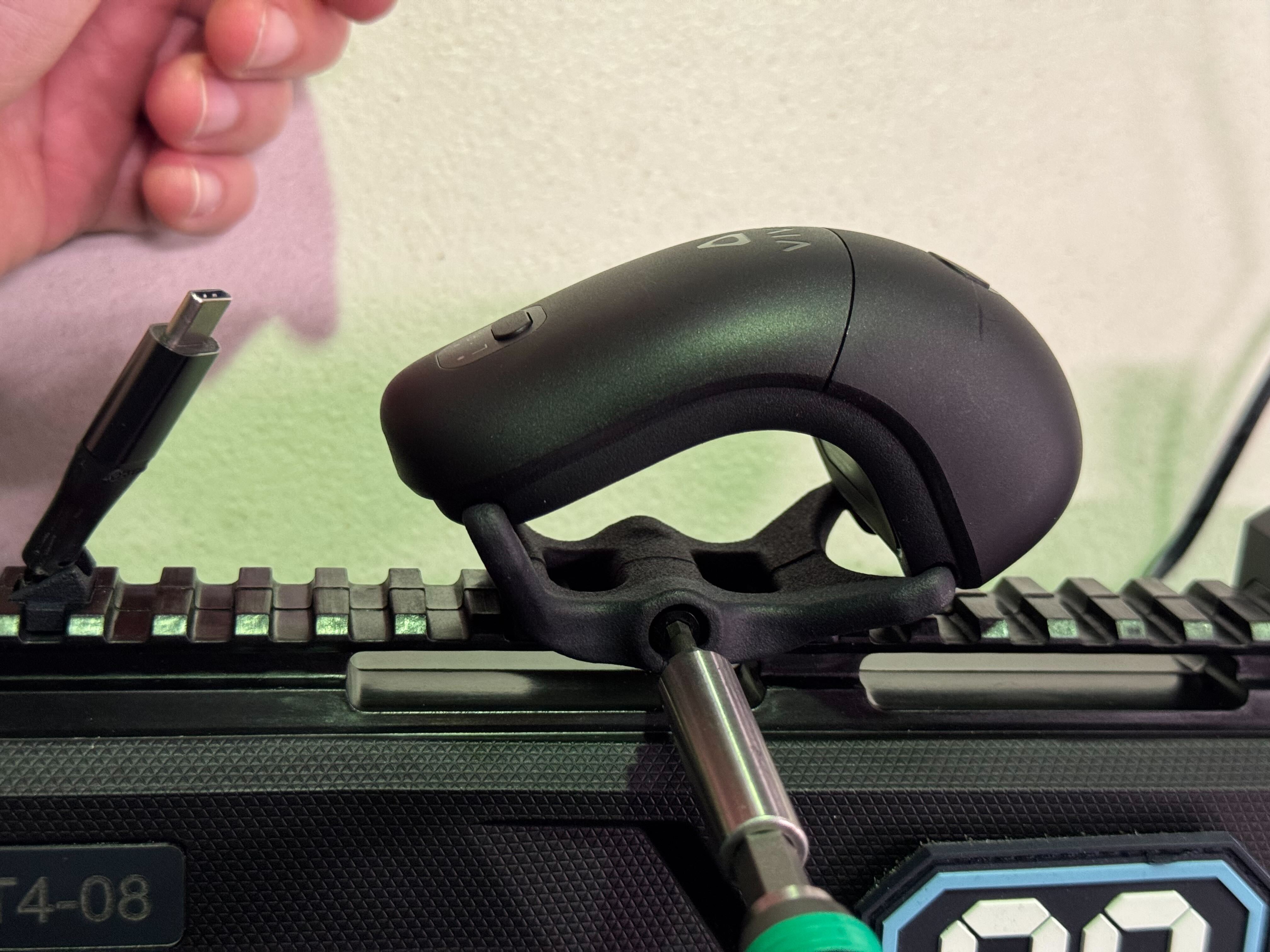

• Press the wrist tracker into the mount, one side at a time.

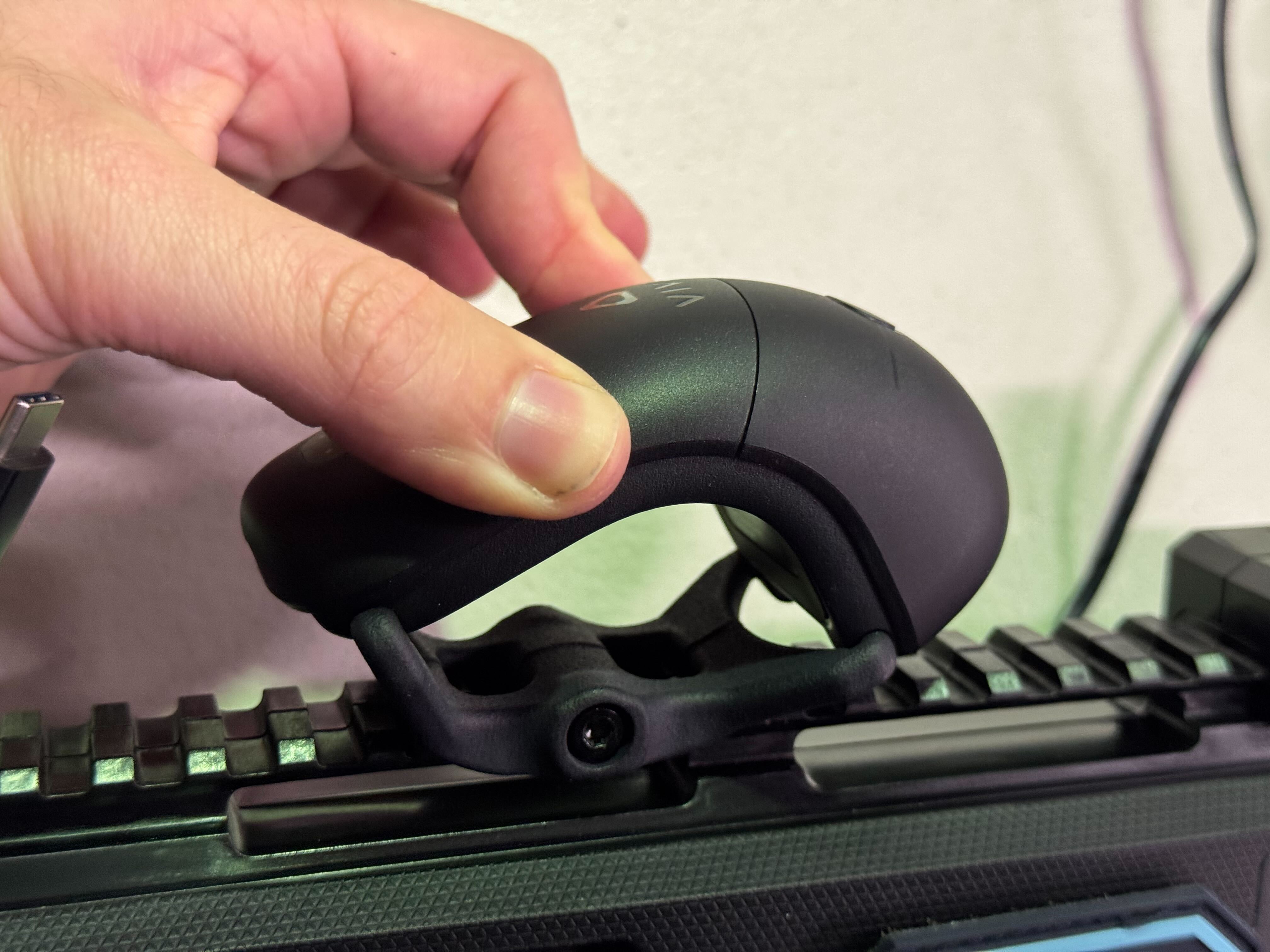

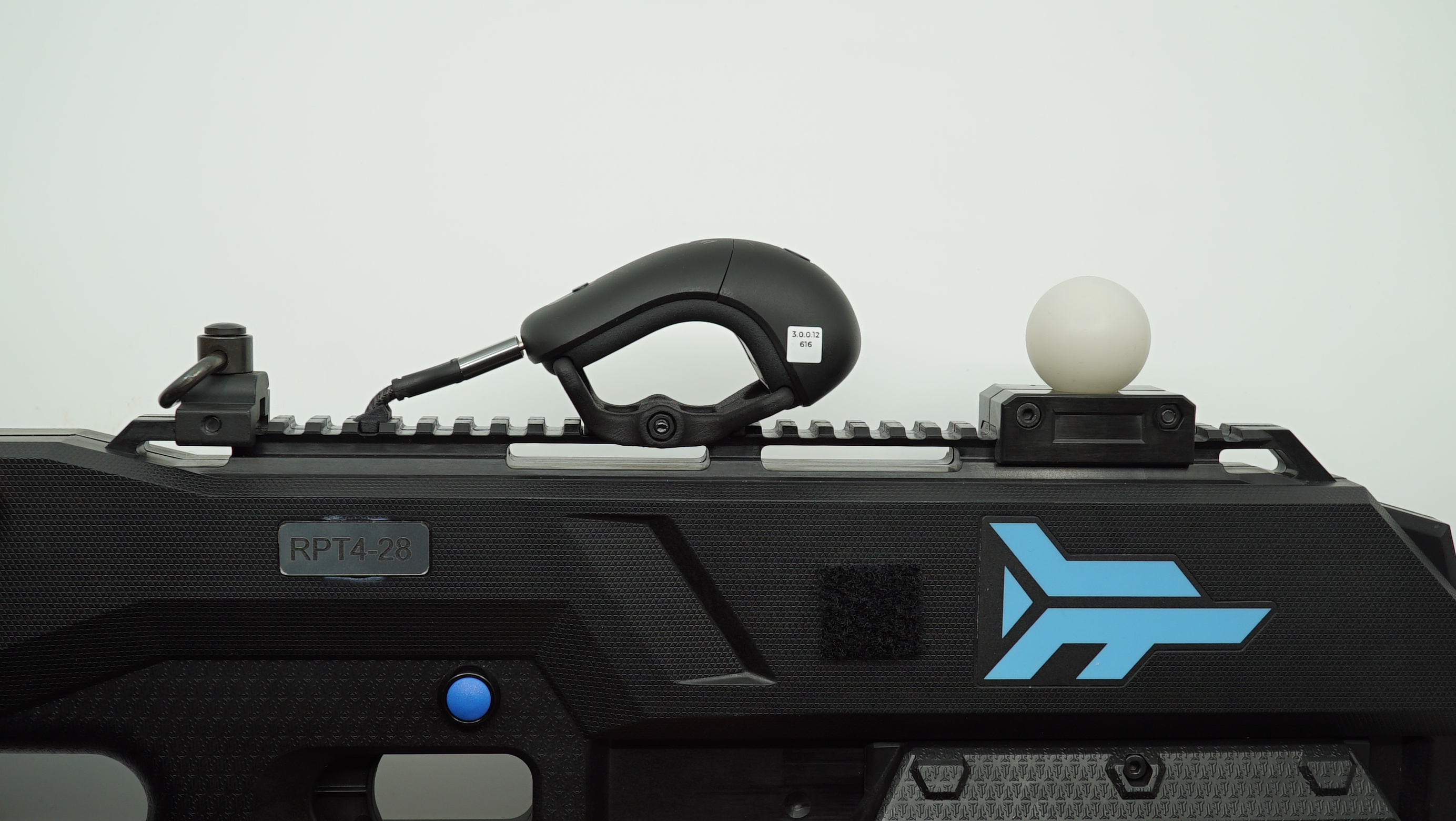

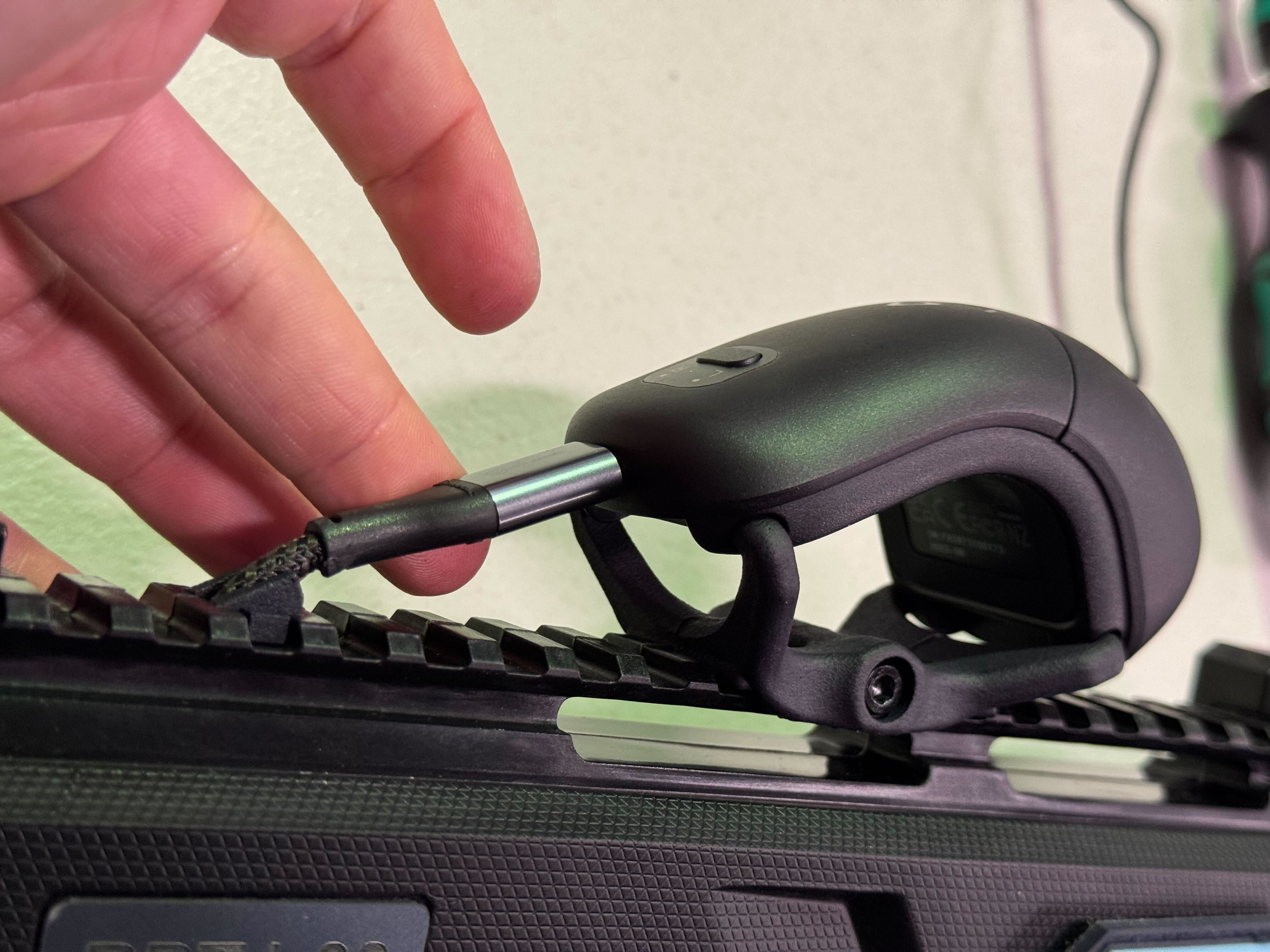

• Tighten the screw with the screwdriver, then insert the USB-C Cable into the wrist tracker.

• Complete

  Back to top

Step 4: Attach the Sling to the mount

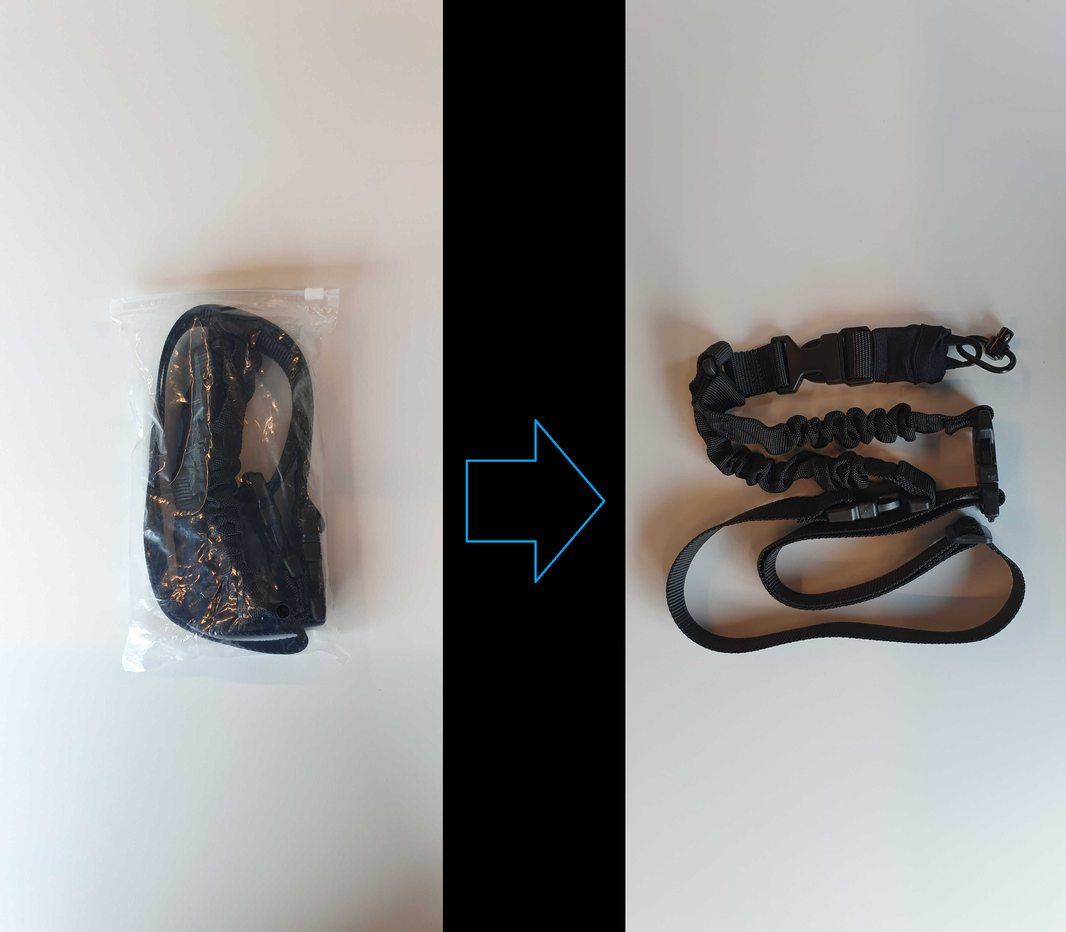

• Remove the Sling from its zip lock bag.

• Roll back the elastic cover from the latch mechanism on the end of the sling.

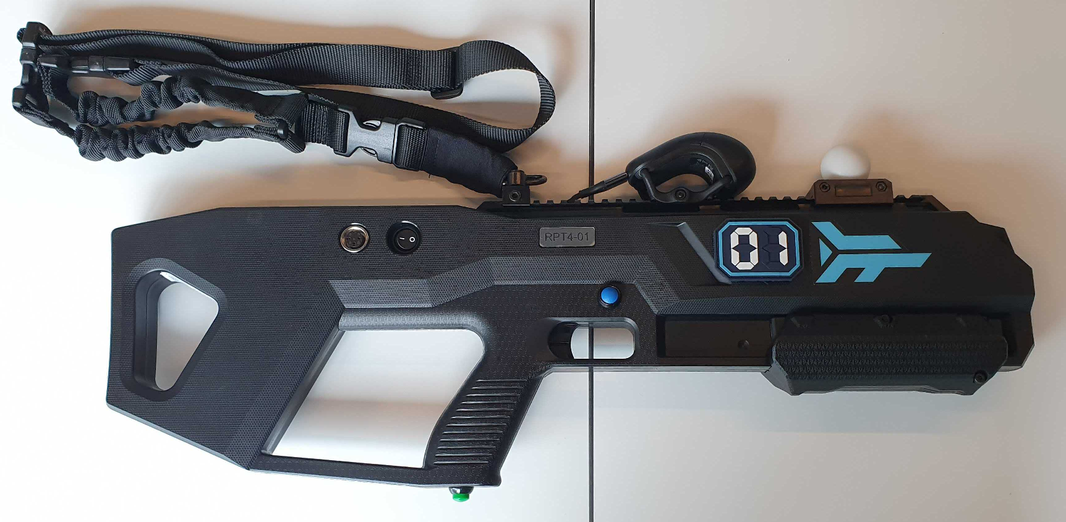

• Depress the latch and clip it onto the D-Ring on the Sling mount that you attached at the rear of the Picatinny rail.

• Roll the elastic cover back into place to reduce the chance of accidental removal of the sling from the controller.

  Back to top
