Controller: Power on/off & LED Colour Guide (Wrist Tracker) Follow
Introduction
This article will cover the LED indications on the Tracker as well as the controller, and explain what each of these colours means.
Controller with Wrist Tracker LED Status
LED Startup Progress with Equipment
Power Switch

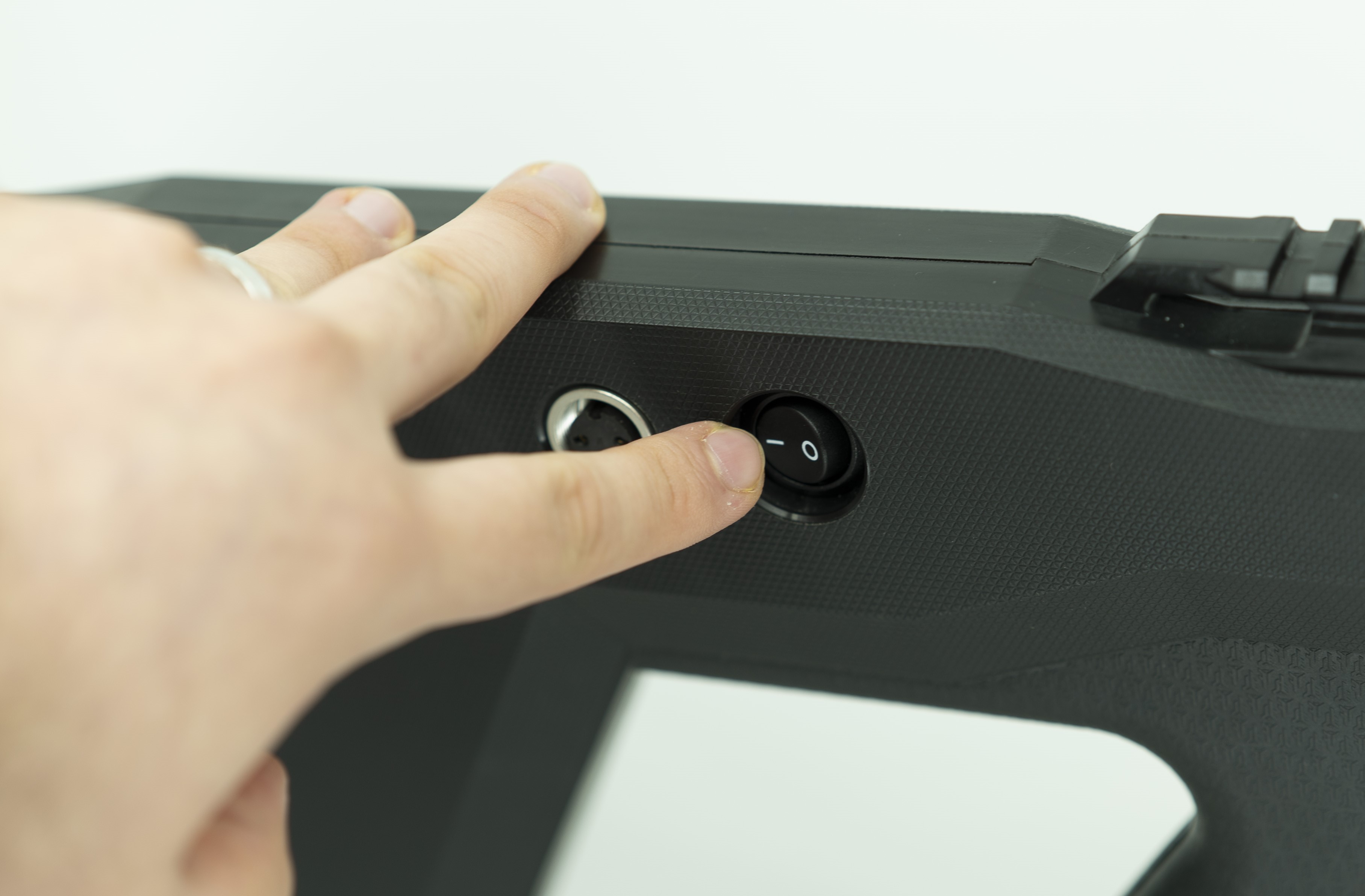

- Move the "Power" button to the "On" position, it will take a few seconds.
- As you power it on, the LED on the Controller and Wrist Tracker will light up.
Controller with Wrist Tracker LED Status
| Controller - System State | Wrist Tracker LED Colour | Controller LED Colour |
| Low battery | Any | Flashing red |
| The Headset is off and/or the Wrist Tracker is not paired, or the Headset is unable to connect to the Content Server | Double Orange, Double Green | Solid White |
| The wrist Tracker is Charging | R or L - Orange | Any |
| The wrist Tracker is Fully charged | R or L - Green | Any |
| The Wrist Tracker in pairing mode | Double flashing Blue | Any (Likely White) |
| USB Connection issue between the Controller and Wrist Tracker | Double Orange, Double Green | Flashing Yellow |
| Ready state - Waiting for system tracking | R or L - Green or Orange | Solid Magenta (Pink) |
| The headset is on hold | R or L - Green or Orange | >Solid Blue |
| The Wearable set is ready for use | R or L - Green or Orange | Solid Green |
LED Startup Progress with Equipment
| Equipment State | LED Colours |
| Headset & Controller off | No LED's - No Power |
| Headset off, Controller on | White Controller LED, Double green or Double orange Wrist Tracker LED |
| Headset on hold, Controller on | Blue Controller LED, Single orange or green Wrist Tracker LED |
| The headset is not tracking, Controller on | Magenta (Pink) controller LED, Single orange or green Wrist Tracker LED |
| Headset tracking correctly, Controller on | Green controller LED, single orange or green Wrist Tracker LED |
Wrist Tracker LED Status
| Wrist Tracker State | Wrist Tracker LED Colour |
| Full Charge Indication | Green LEDs |
| Low Battery | Blink Red 250ms, Dim 250ms, repeat |
| Charging / Connected during charging | Solid Orange |
| Pairing Mode | Blink Blue 250ms, Dim 250ms, repeat |
| Connecting | Solid Blue |
| Connected | Solid Green |
| Connecting during charging | Blink Blue 1s, Orange 1s, repeat |
| Updating Firmware | Blink Blue 250ms, Red 250ms, repeat |
Controller LED Status
| Controller State | Controller LED Colour |
| Waiting for Headset Connection/Headset Unable to connect to Content Server | White |
| Headset on hold | Blue |
| Headset not tracking | Magenta (Pink) |
| Headset with tracking | Green |
| Connection issue between Controller & Wrist Tracker | Flashing Yellow |
| Low voltage on Controller battery | Flashing Red |
