Technical Manual - The Game Space

Introduction

This is an overview of the technical aspects of the Game Space.

Example photos can be found here

Please read below.

---

On this page:

  Technical Requirements

  What do I need to buy?

  What tasks do I need to do?

  What equipment will be provided?

---

Technical Requirements

Minimum Dimensions	Rectangle: 16m x 8m Square: 12m x 12m with 80cm pillar in the centre
Maximum Dimensions	Rectangle: 20m x 10m Square: 15m x 15m with 1m pillar in the centre
Minimum Ceiling Height	2.6m
Number of Power Outlets	0
Number of Network Points	4
Temperature	21.5 °C (70.7°F)
Lighting (Lux)	320 Lux

Windows

Having windows looking into the Game Space will introduce variable light conditions in the game area, which could interfere with player tracking.

Our system is not designed to have windows in the Game Space. However, If you want to attempt a window, you must:

• Use a reasonably dark tint on the windows.
• Use segments of opaque graphics on the inside windows (white 50mm vinyl tape)
• Be prepared to completely cover the windows with vinyl if player tracking becomes an issue.

For more information go HERE

  Back to top

What do I need to buy?

You have a few options for covering your Game Space:

Options	Pros	Cons
Vinyl Printing (Wall and/or Floor)	Looks better Consistent colours	Expensive
Printed Mesh (Wall Only)	Cheaper than Vinyl Easier to install	Vinyl looks better

Wall Graphics

Quantity	Graphic File Size	Recommendation	Links
Enough to cover the perimeter of the Game Space	1.8m x 69m (cut as required for your Game Space)	Printed Mesh or Vinyl Matte	Click here to view the Wall Graphics

Floor Graphics

Quantity	Graphic File Size	Recommendation	Links
Enough to cover the Game Space floor	20m x 10m or 15m x 15m (cut as required to fit your Game Space)	Vinyl Non-Slip Matte	Click here to view the Floor Graphics

Info

• It is very important that the graphics are not scaled or stretched in any way. The graphics can be cropped if need be.
• The graphics need to be printed on a non-reflective surface to prevent any tracking issues.

  Back to top

What tasks do I need to do?

Task	Key Points
Install the Floor and Wall Graphics	Find a contractor to install the graphics on the floors and walls Install the wall graphics 30cm from the ground to ensure good coverage
Install the Network Points at these locations	4x in the ceiling or railing in the centre of the Game Space.  Placement of the Network Points should be 2m apart in a square formation.

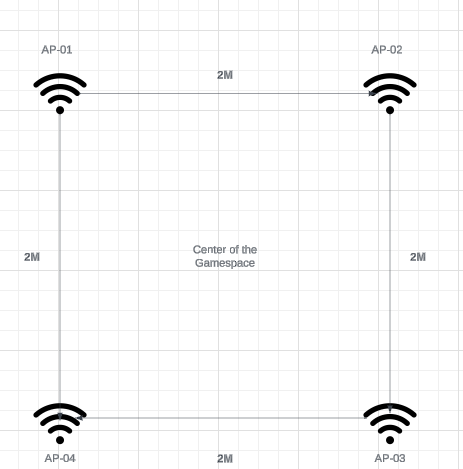

• The placement of the Network points should be as per the diagram below;

Top-down perspective

The Game Space should appear as per the image below. Ensuring that the Access Points are mounted on the ceiling 2 metres apart from each other, directly in the centre of the Game Space.

  Back to top

What equipment will be provided?

Tasks	Key Points
Access Points	The Access Points will be provided for you to install in your game space.

  Back to top
