Introduction

A Zero Latency Dual System is a further development of the standard Gen 3 product that now allows for two Game Spaces to be run at a single location.

On this page:

Dual System Features

Dual System Features

Ability to run two Zero Latency game spaces in one venue, with a total capacity of 16 simultaneous players (8 per game space)
Maximum of 24 player wearables across both systems, with the ability to move wearable sets between systems
Two independent game spaces managed through a single portal, utilizing one booking system
Operation remains identical a single Zero Latency system
Guided setup process, allowing any two existing Gen 3 systems to be converted into a dual system configuration

A Gen 3 Dual System setup is only compatible with Controller 4. Any older controller variations will need to be upgraded to Controller 4 Specification
All content that is compatible with Gen 3 system can be used in a Dual System configuration
- Outbreak
- Engineerium
- Singularity
- Undead Arena
- Sol Raiders
- Far Cry
- Future planned content will also be compatible with this configuration

The creation of any dual system will require the use of the following components, which make up the

Dual System Hardware Kit (ZL-03-17)

ZL SKU	Description/Name	Quantity	Photos

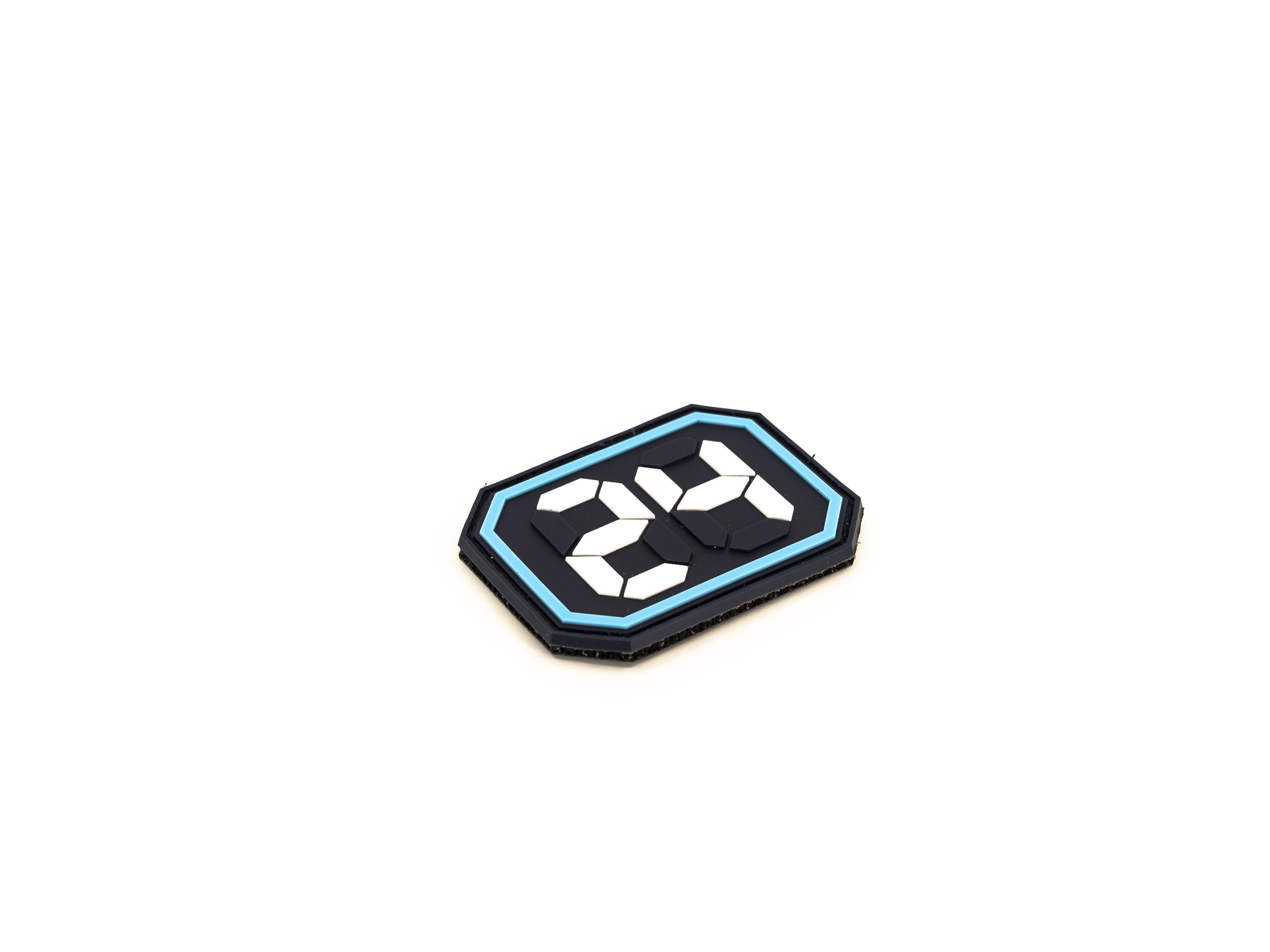

ZL-02-07-06 (13-24)	Controller Patch ID 13-24 Set of Velcro ID tags for the Controller 4, to identify set #	12

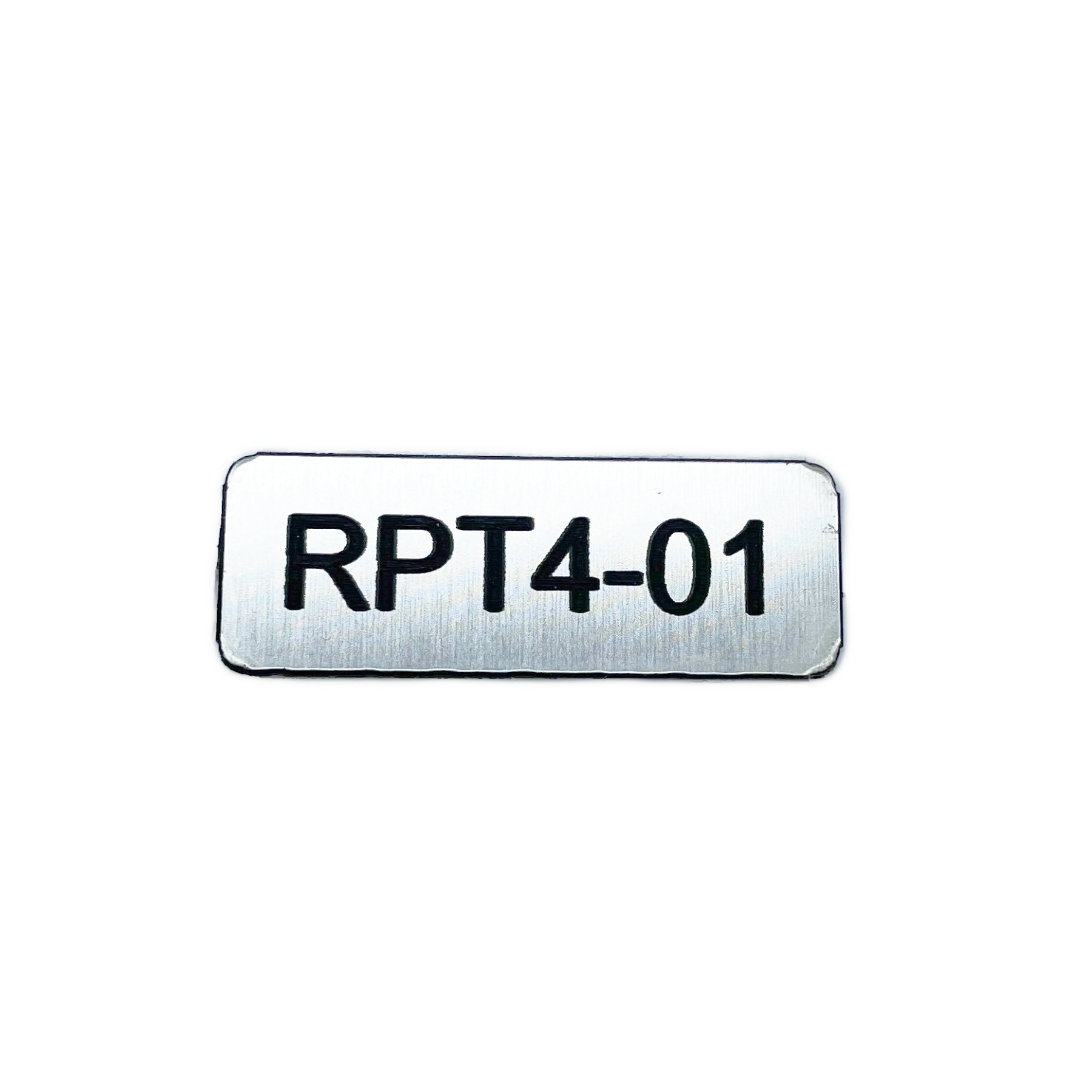

ZL-03-16-07 (13-24)	ID Plate Controller - Controller 4 ID 13-24 Set of ID plates for the Controller 4, to identify Controller name	12

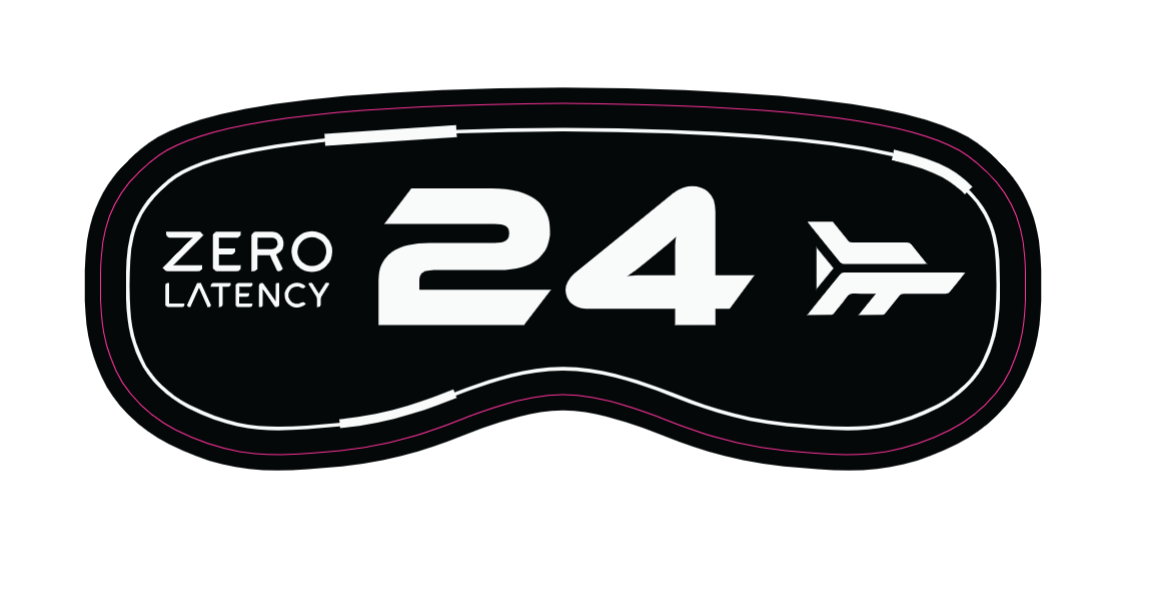

ZL-03-01-10 (13-24)	Focus 3 Static ID Label ID 13-24 Label for Focus 3 HMD, to identify set #	12

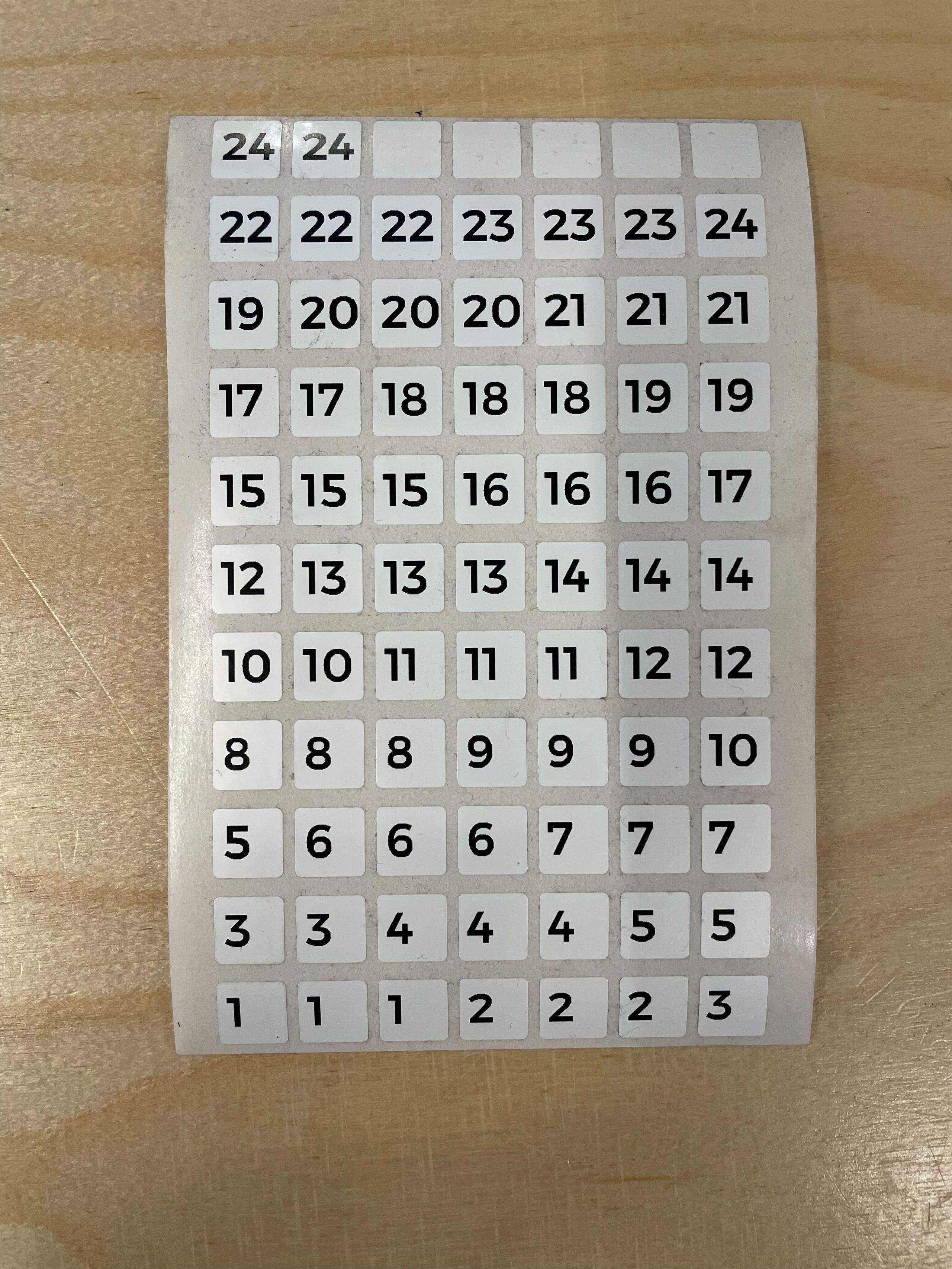

ZL-03-12-04	Headset and Tracker Labels #1-24 Small ID stickers to match HMD, and wrist tracker	1

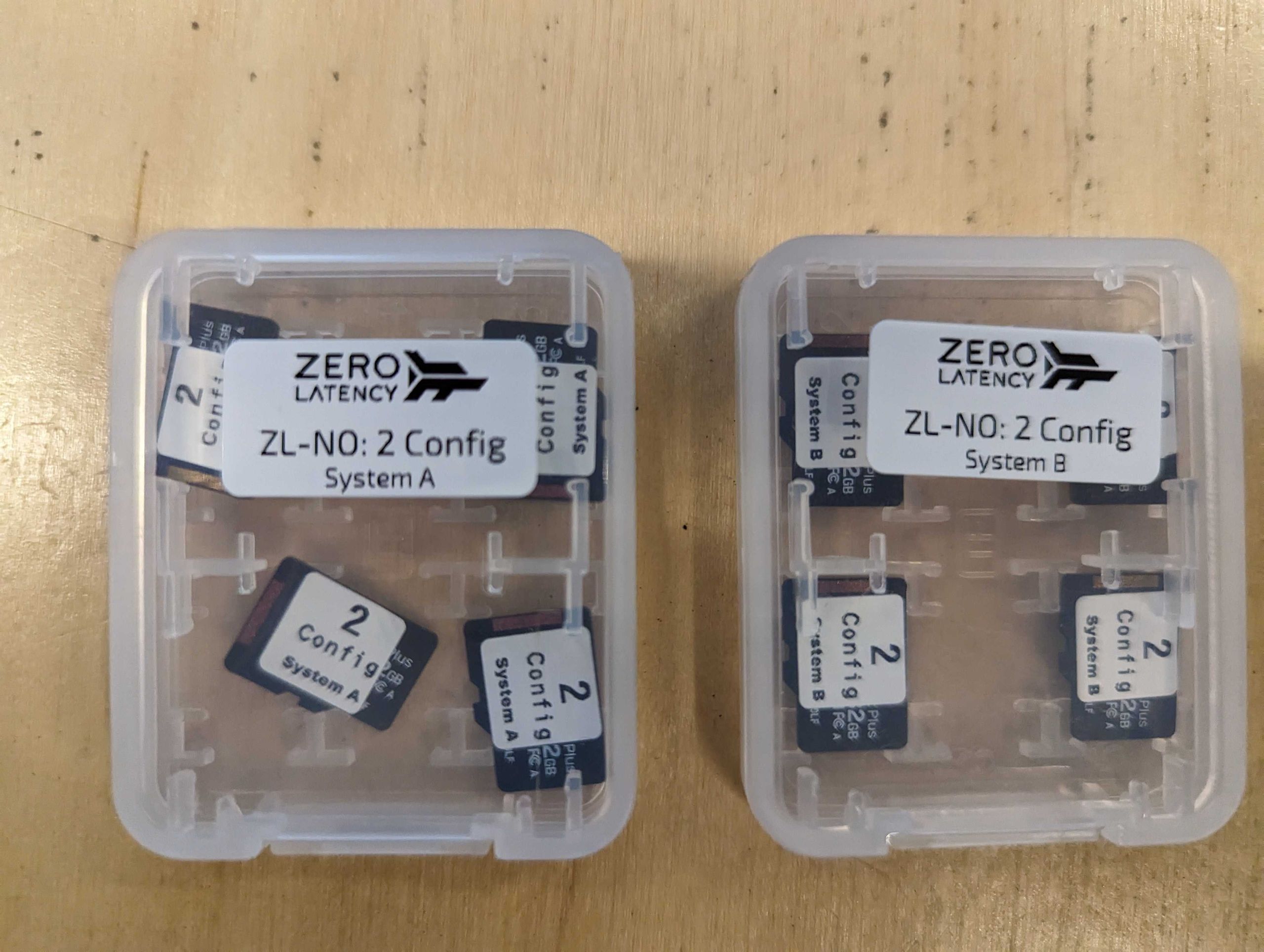

ZL-03-12-01-01	Micro SD Card Cards are Imaged with unique Batch Config for System A and System B	8
ZL-03-12-01-03	Micro SD Card Case Cases to store Batch Config SD cards for System A and System B	2

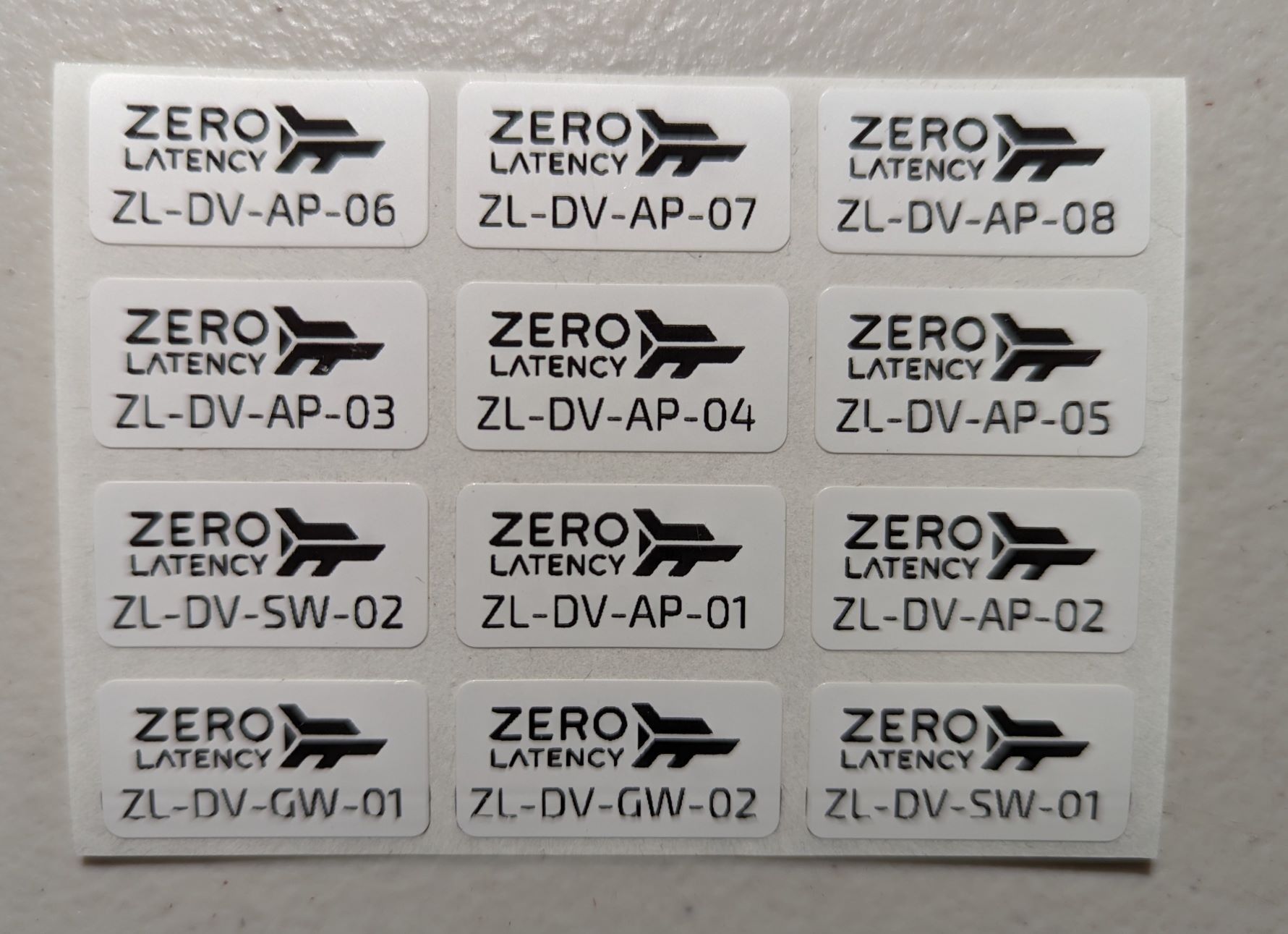

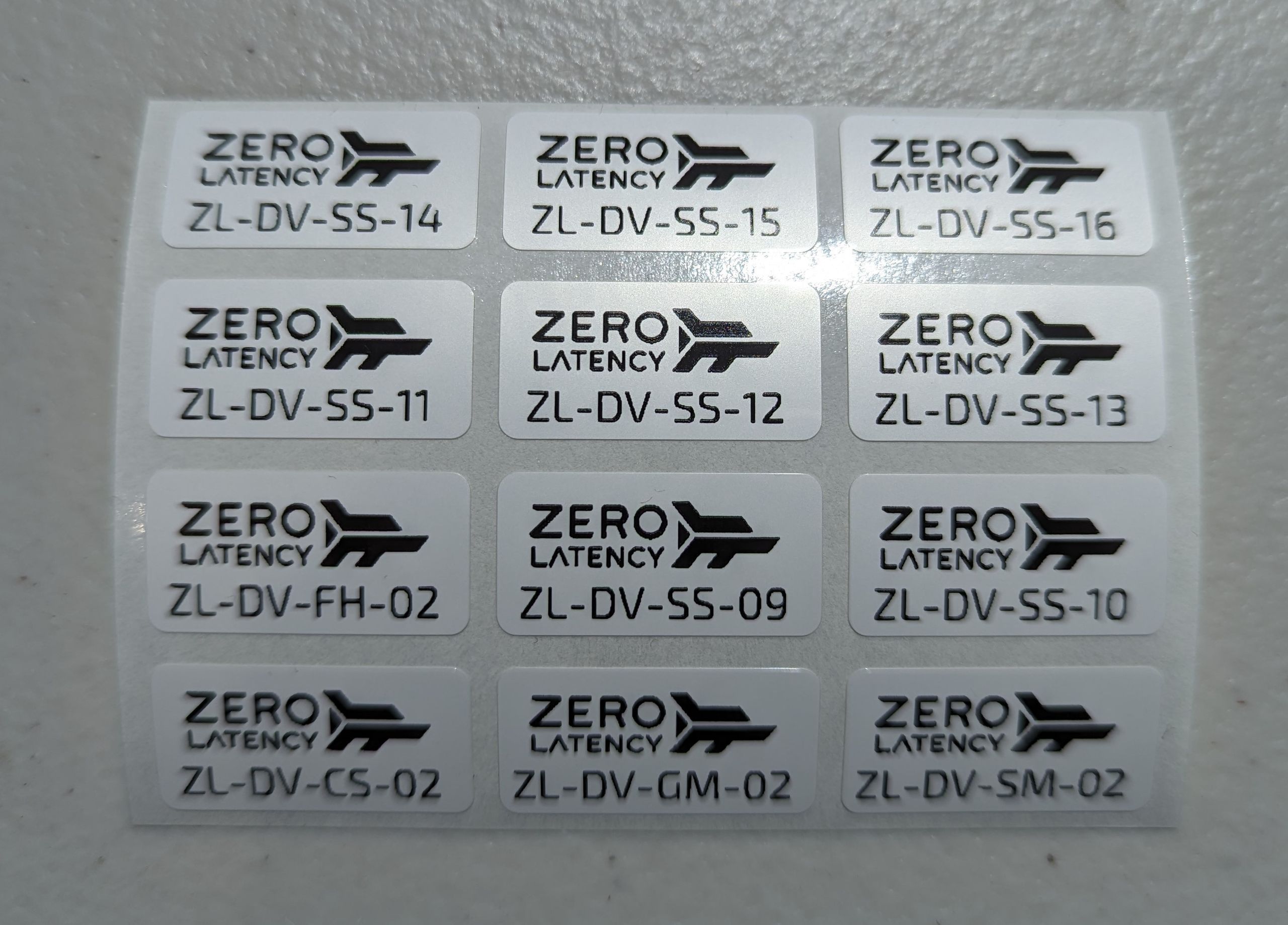

ZL-03-04-05	System Server/Network Label Labels that are used to replace/update existing labels on Servers, and networking equipment.	1

Type your notes in here if needed or delete this

For further information on steps to deploy the dual system, please see: Dual System Setup Overview
