[Dual System] - How to Complete Server Re-labelling and System Re-imaging (For System B)

Warning: This article is for Dual System only.

Introduction

When you first receive both your systems for a Dual Site, they will both be named
and configured to function as two separate systems. This guide will take you
through the process of re-labelling and re-imaging the machines in "System B"
so that they will function within a Dual site.

Time Required

6+ hours

Tools and Equipment Required

• ID Labels from inside Dual System Hardware Kit (ZL-03-17)
• USB Imaging drive, also from the Dual System Hardware Kit (ZL-03-17)
• Computer monitor
• Mouse
• Keyboard

---

On this page:

  Replace Machine ID Labels

  Re-Image System B

  Contact Client Services

---

Replace Machine ID Labels

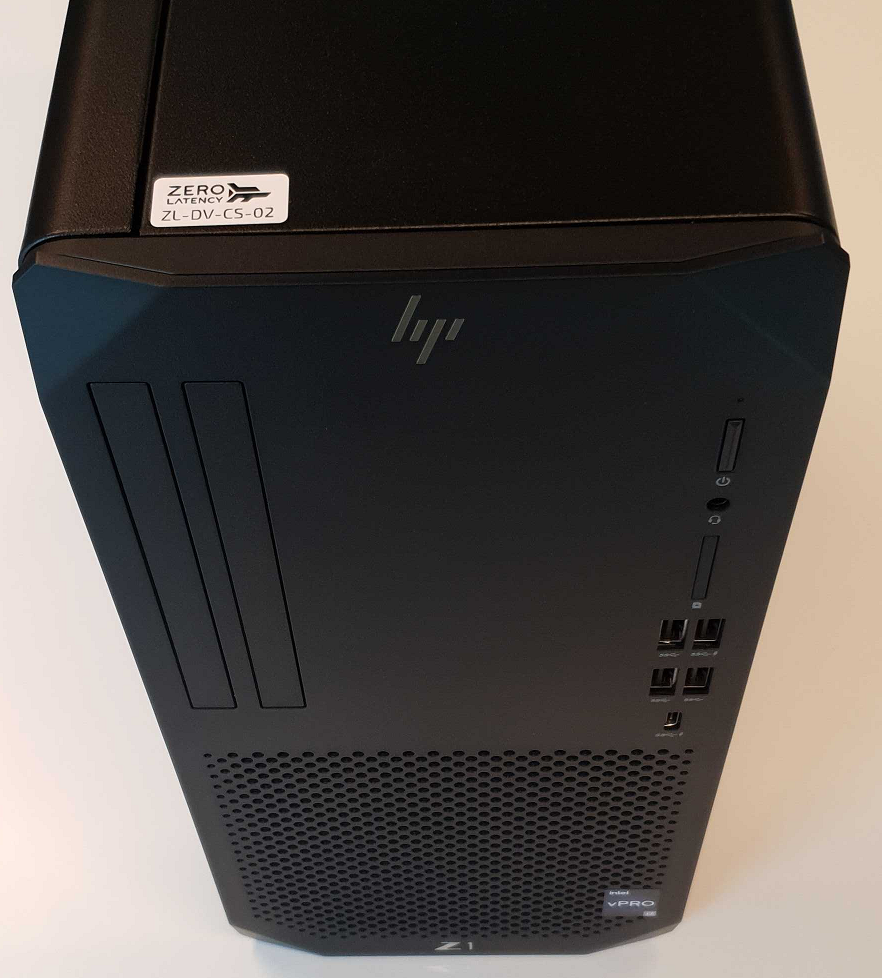

Labels should be placed in the location shown below, making sure to replace only the labels for System B server:

Replace the labels on the System B machines according to the table below:

XX-XX represents your "Primary" site code, and YY-YY represents your "Secondary" (placeholder) site code .

Machine	Before: (Remove label)	After: New Name (Locate label in kit)
CS	YY-YY-CS-01	XX-XX-CS-02
GM	YY-YY-GM-01	XX-XX-GM-02
SM	YY-YY-SM-01	XX-XX-SM-02
SS-01	YY-YY-SS-01	XX-XX-SS-09
SS-02	YY-YY-SS-02	XX-XX-SS-10
SS-03	YY-YY-SS-03	XX-XX-SS-11
SS-04	YY-YY-SS-04	XX-XX-SS-12
SS-05	YY-YY-SS-05	XX-XX-SS-13
SS-06	YY-YY-SS-06	XX-XX-SS-14
SS-07	YY-YY-SS-07	XX-XX-SS-15
SS-08	YY-YY-SS-08	XX-XX-SS-16
FH	YY-YY-FH-01	XX-XX-FH-02

  Back to top

Re-Image System B

Next we need to re-image the machines so that they are named the same as their brand new labels, and also to ensure that they are configured correctly.

For this process you will need:

• USB Imaging drive from the Dual System Hardware Kit (ZL-03-17)
• Each of the computers that need to be re-imaged (see table)

Using the re-imaging drive for this process. Follow the documentation below for each of the computers in the table below.

Ensure that the name entered into the prompt during this process matches the new label that was placed on the machine in the previous step.

NOTE: The imaging process for the Front of House machine (FH) is different to the below documentation.

Documentation: [Re-image Gen3 Machines]

Documentation for the FH machine: [Re-image FH machine]

Replace XX-XX below with your "Primary" site code.

Machine to be Re-imaged

XX-XX-CS-02

XX-XX-GM-02

XX-XX-SM-02

XX-XX-SS-09

XX-XX-SS-10

XX-XX-SS-11

XX-XX-SS-12

XX-XX-SS-13

XX-XX-SS-14

XX-XX-SS-15

XX-XX-SS-16

XX-XX-FH-02 - Note: Imaging process is different.

  Back to top

Contact Client Services

Once the above steps have been completed, please contact Client Services and let them know you have completed this step, as there are some changes required on the back end.

  Back to top
