Controller Debug Mode

Introduction

The controller has a debug mode which allows you to quickly identify if there is a fault with your controller.

How to enter debug mode

• Press and hold the Reload button, Mode Select button and power the controller on.
• For Controller 3:

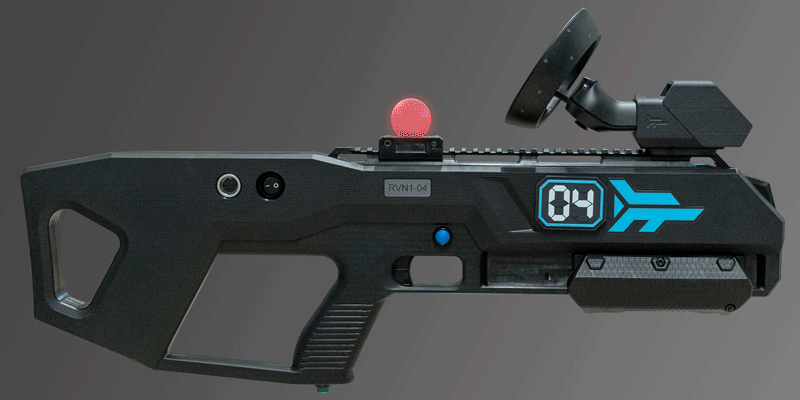

  • The LED will glow red then let go of the Reload button and Mode Select button.

  •

• For Controller 4:
  • The LED will be unlit until a button is pressed, trigger pulled or the pump is used
• You can now test each button and the pump.

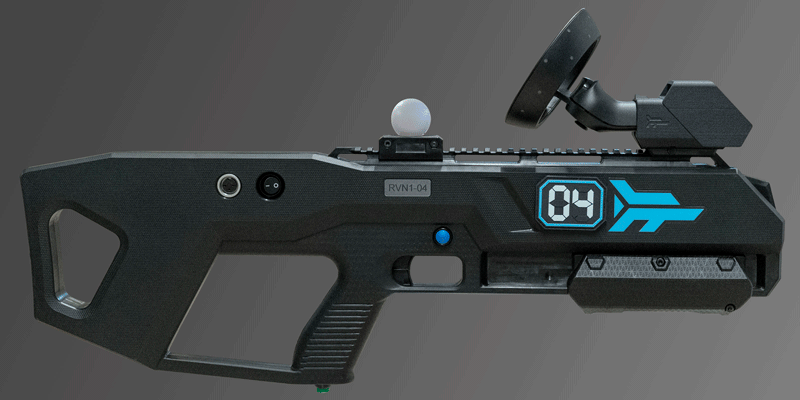

   The LED light will change colour in the following order as you use the buttons, pump or trigger:

1. Red
2. Green
3. Blue
4. Cyan
5. Yellow
6. Magenta
7. Bright White
8. Dim White
9. LED Off

• When the test is complete, power off the controller to exit debug mode. Next time you turn it on, it will be back to normal mode.
