Controller Components & Connections (Wrist Tracker) Follow
Introduction
It is important to understand each component of the controller. This will help with troubleshooting the controller but also will assist in ordering parts.
Danger
You cannot run mixed controller sets at a Venue. If you are planning to upgrade to the Controller 4s you will need to upgrade your entire controller set.
Raptor Components
Use the table below to help identify the internal components:
| Component | Description | Image |
|---|---|---|

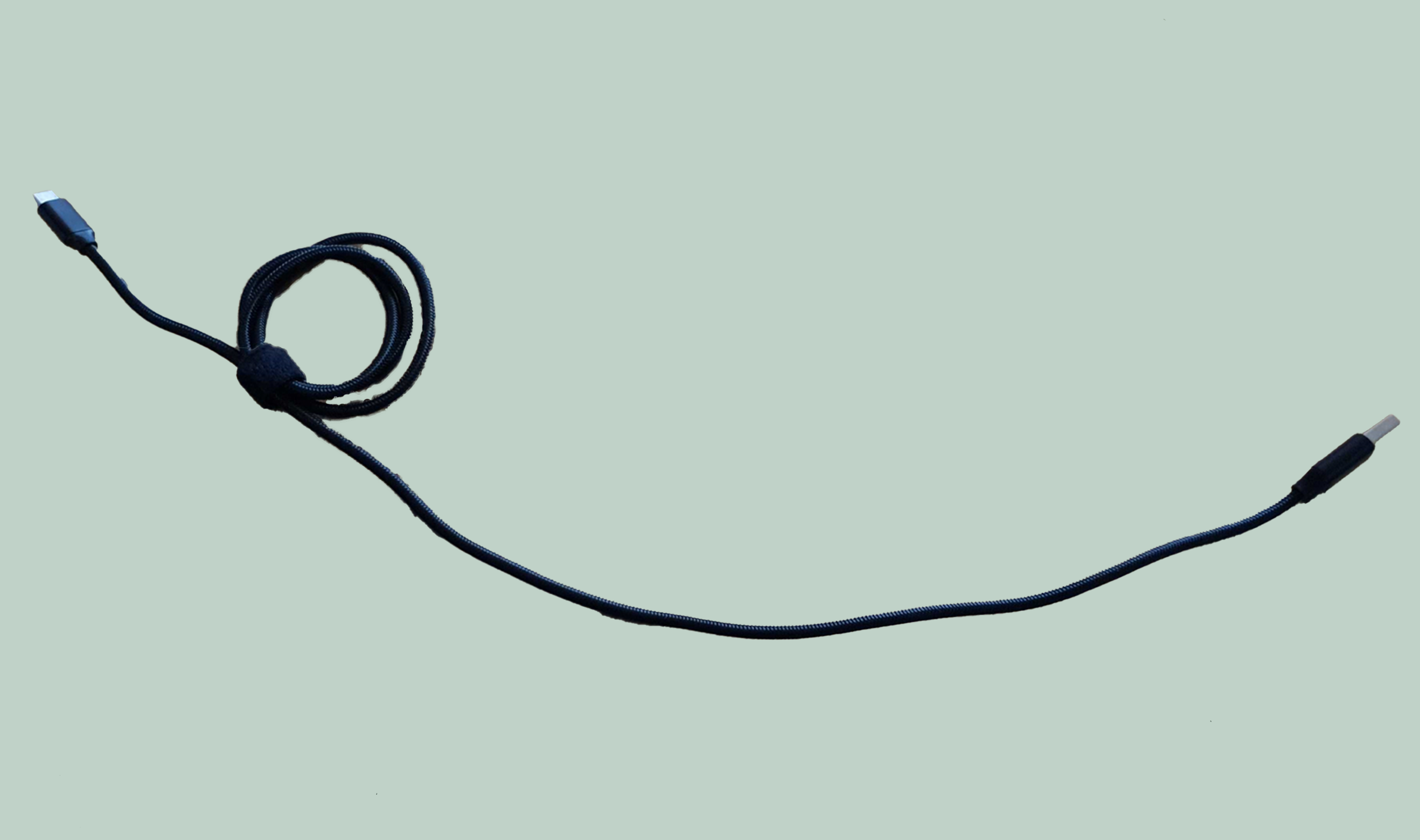

| USB C Cable | Powers the Tracker connected at the top. | |

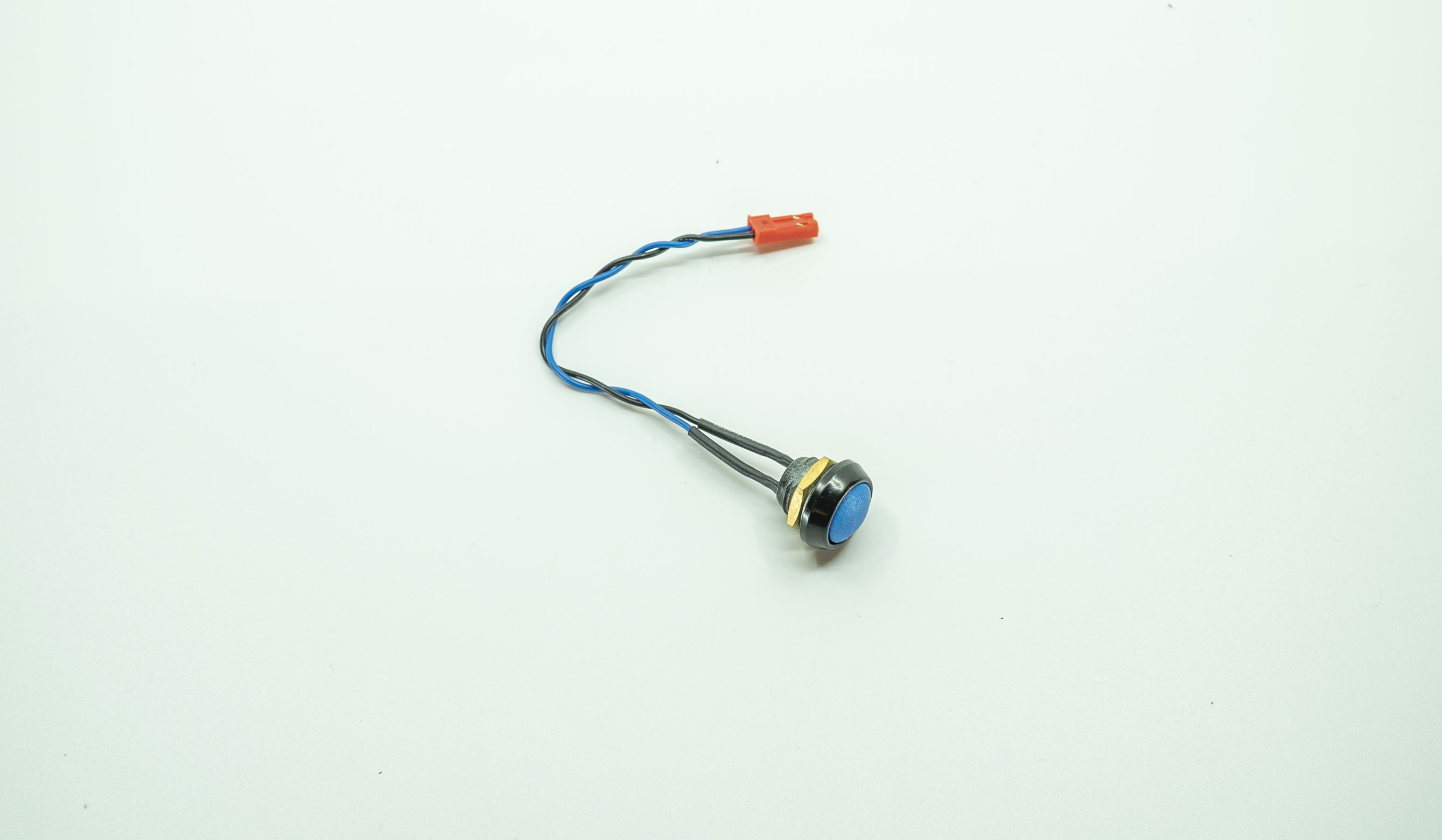

| WL Mode A | Mode Select button (right chassis). | |
| WL Mode B | Mode Select button (left chassis). | |

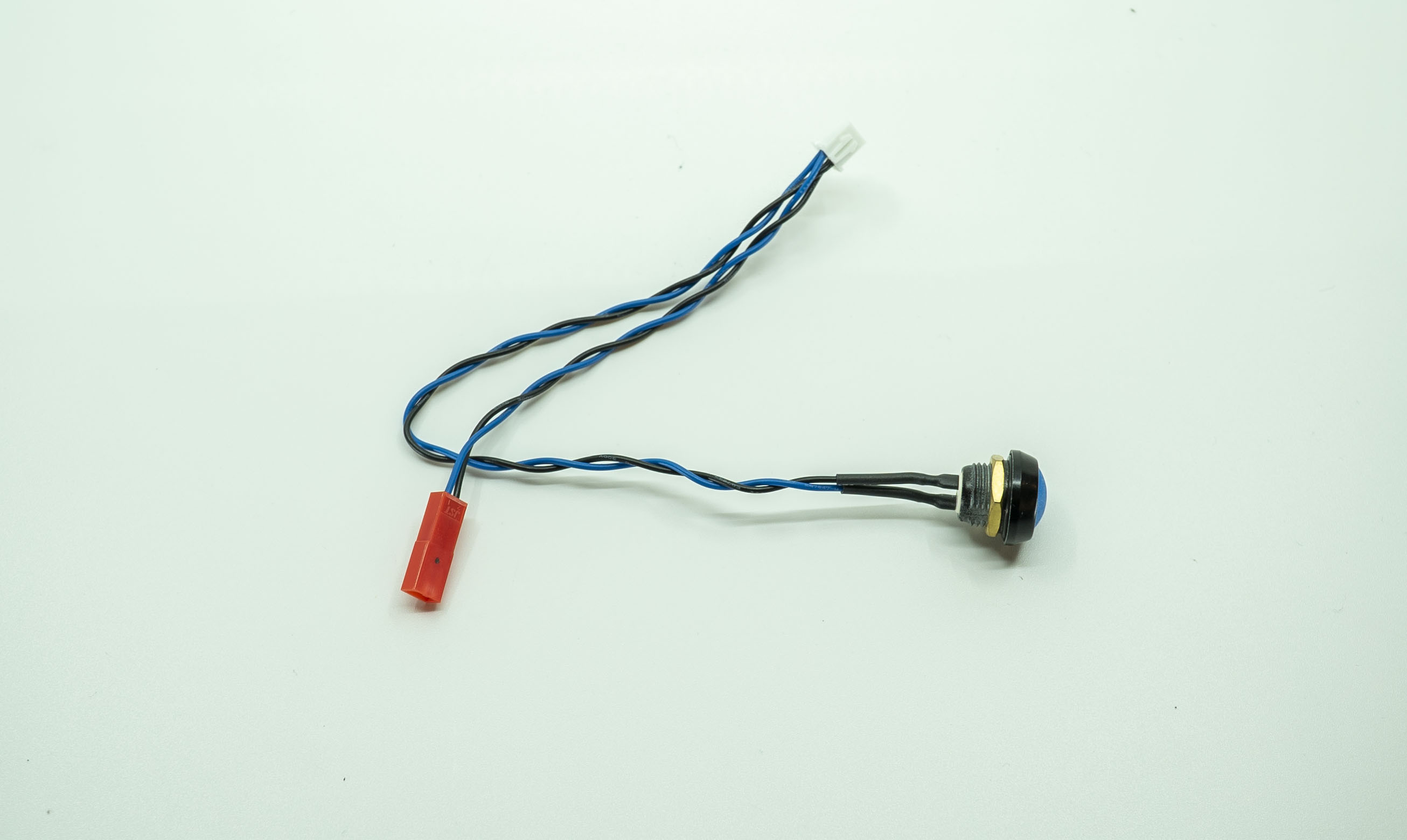

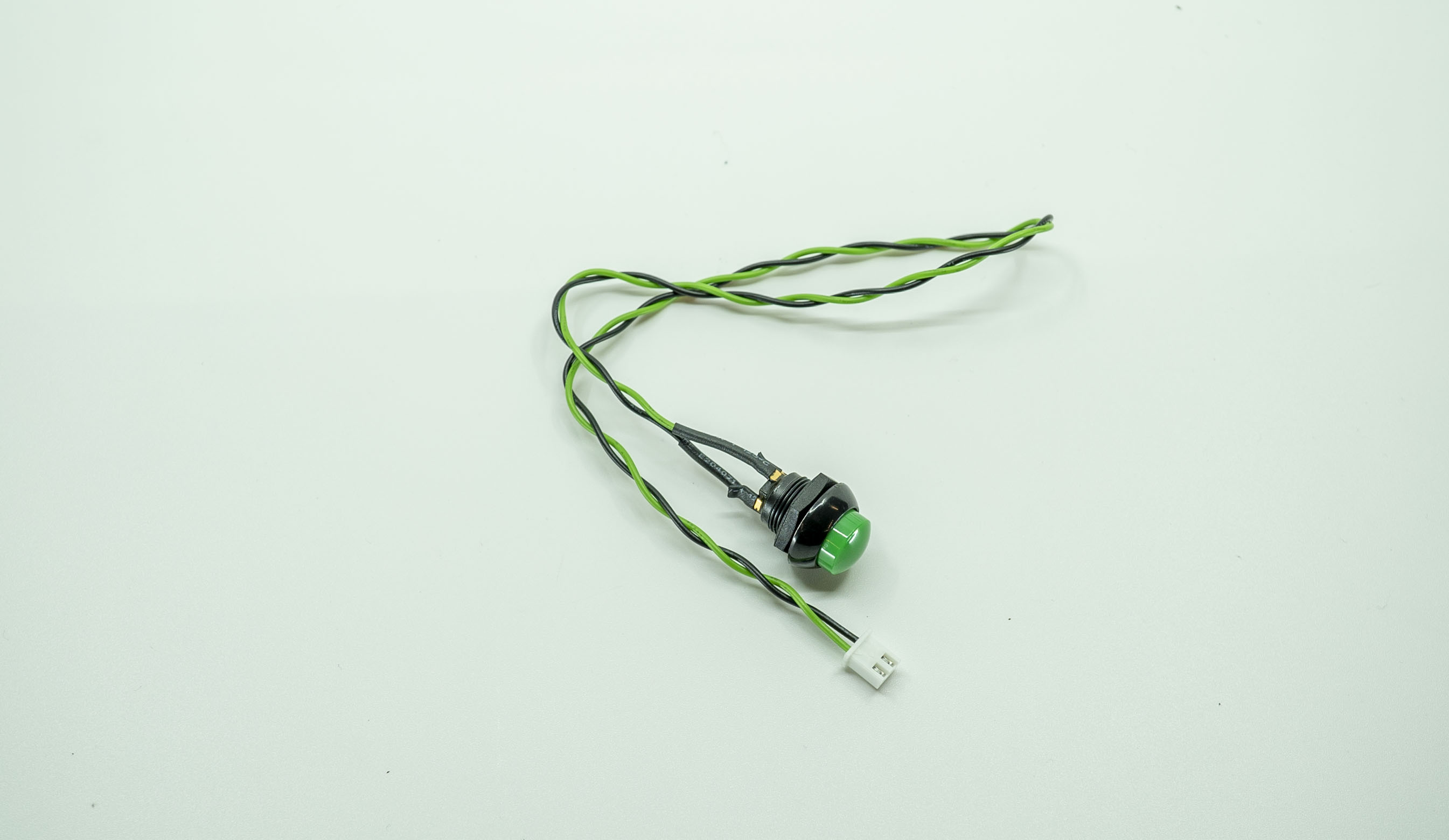

| WL Reload | Reloads the weapons in the games. | |

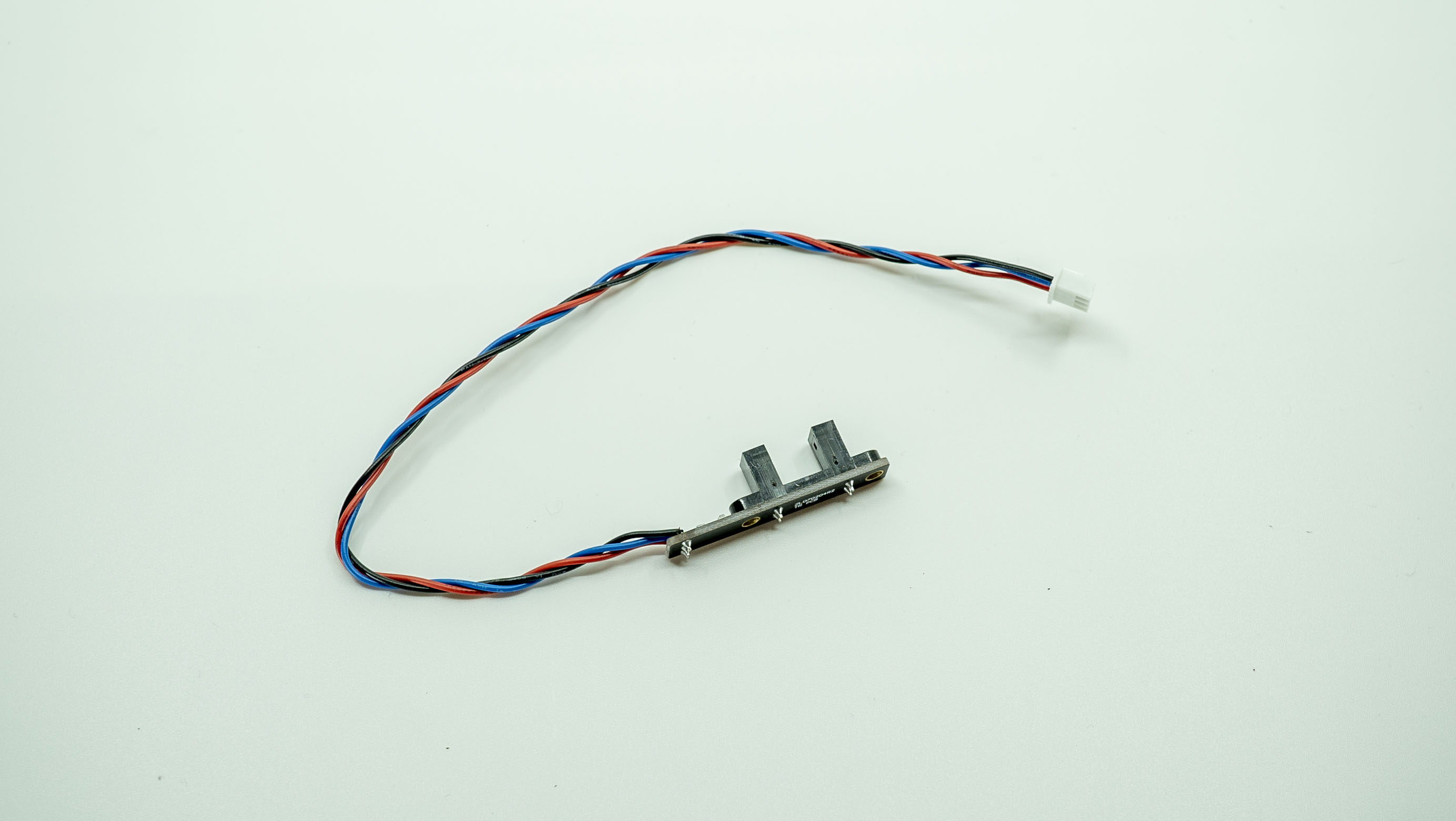

| WL Trigger | Optical switch for Trigger operation with a pin. | |

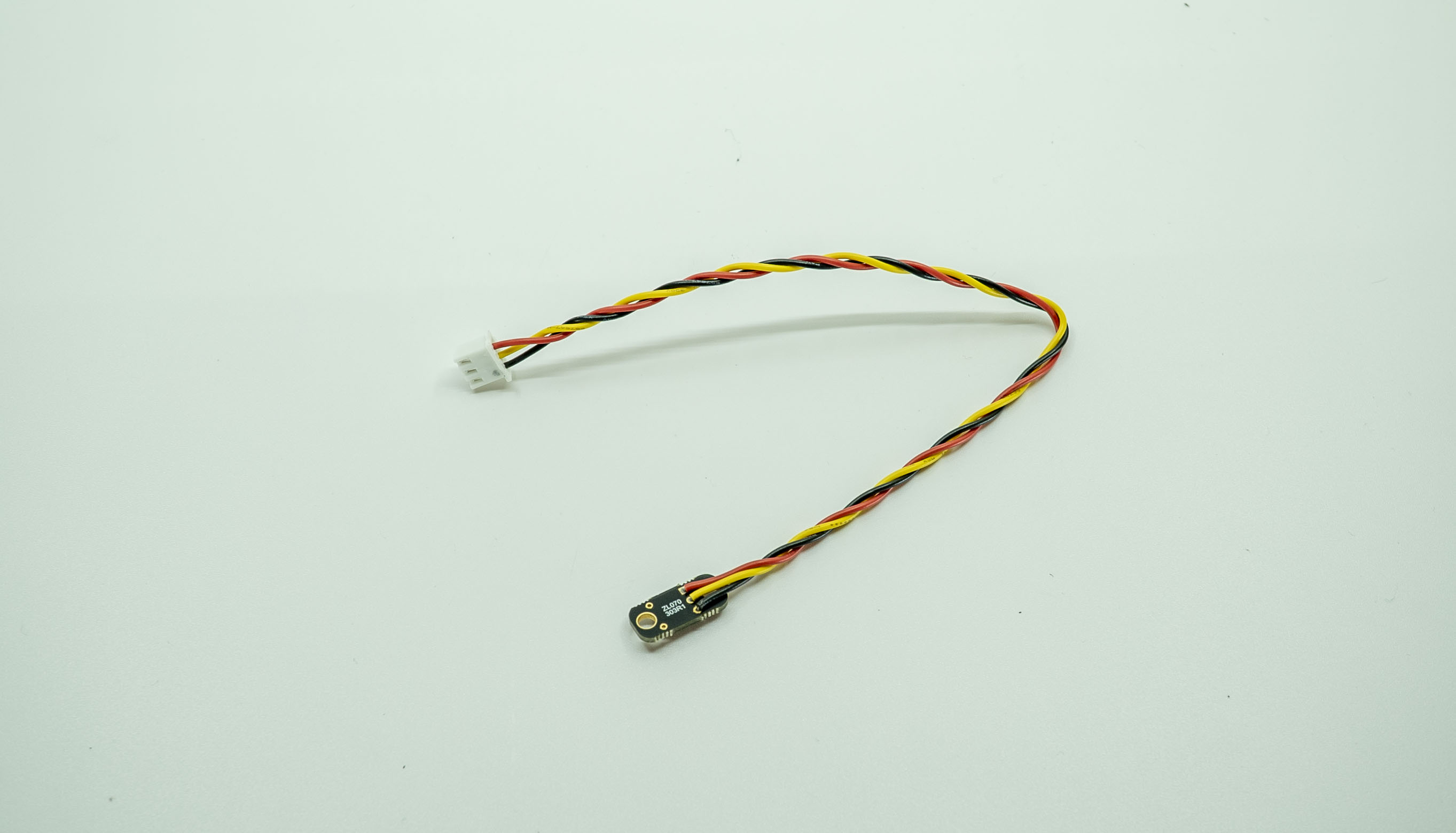

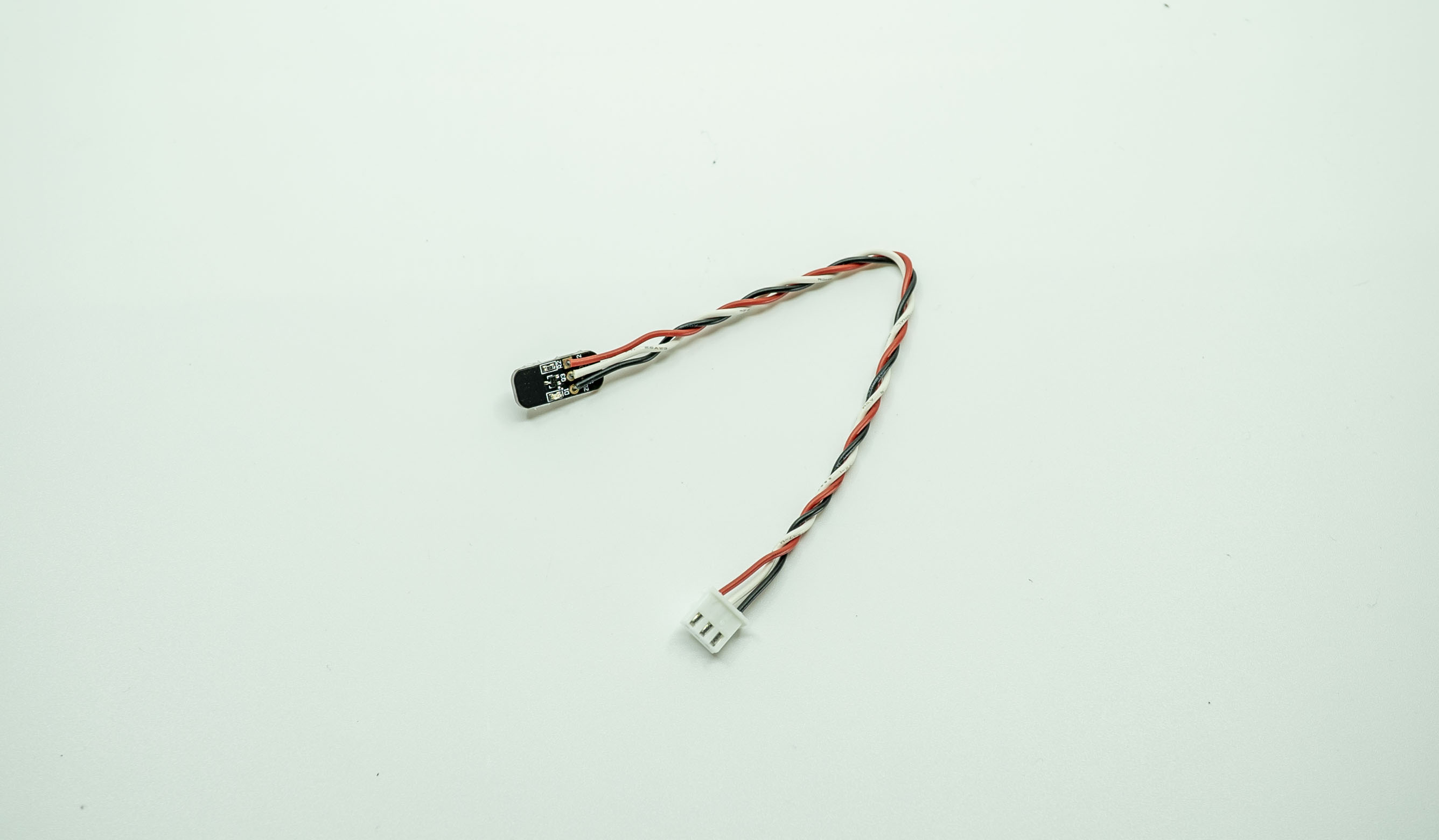

| WL Pump A | Front magnetic switch for pump slide operation. | |
| WL Pump B | Rear magnetic switch for pump slide operation. | |

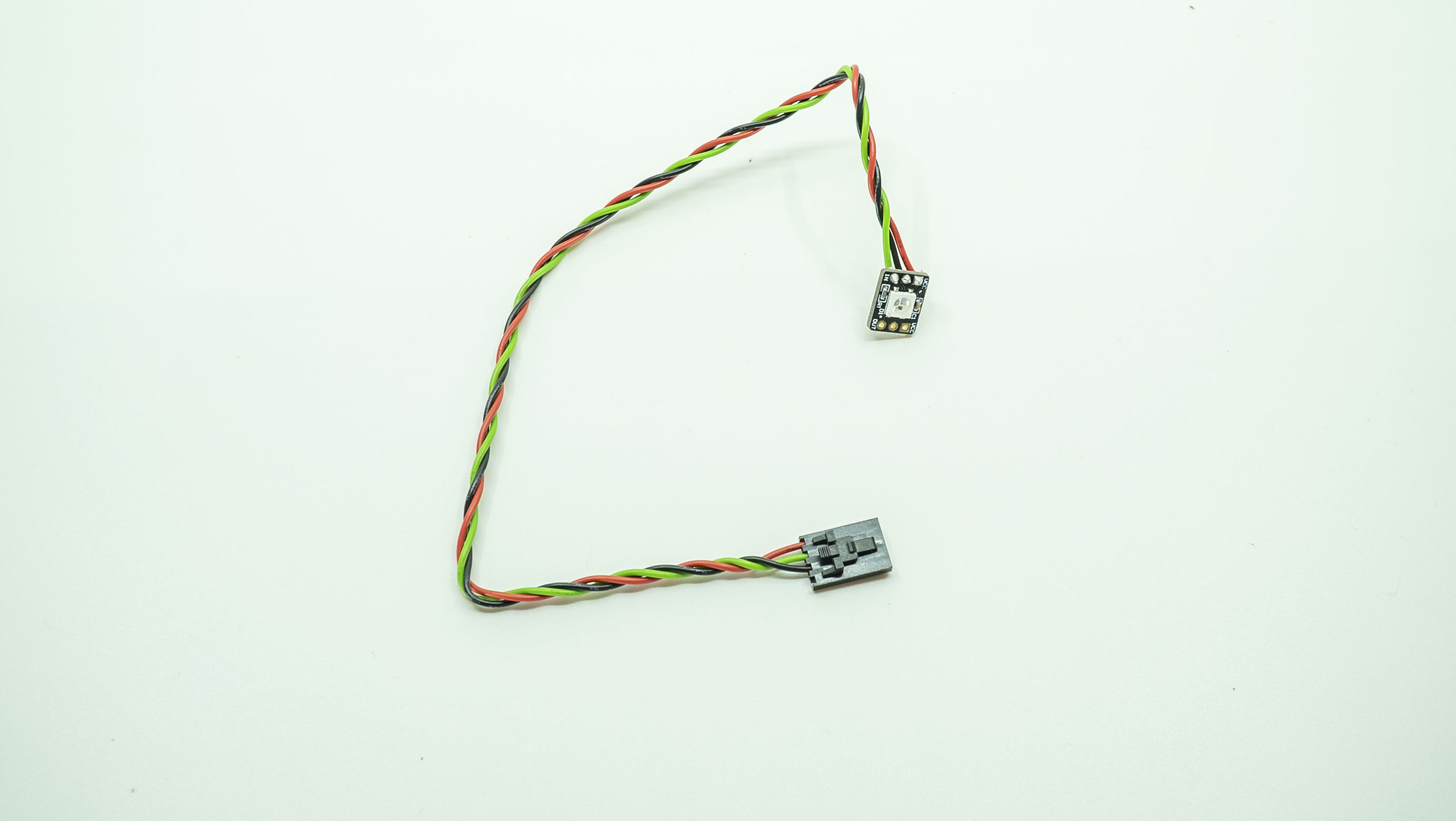

| WL LED | Wiring loom for the Raptor LED. | |

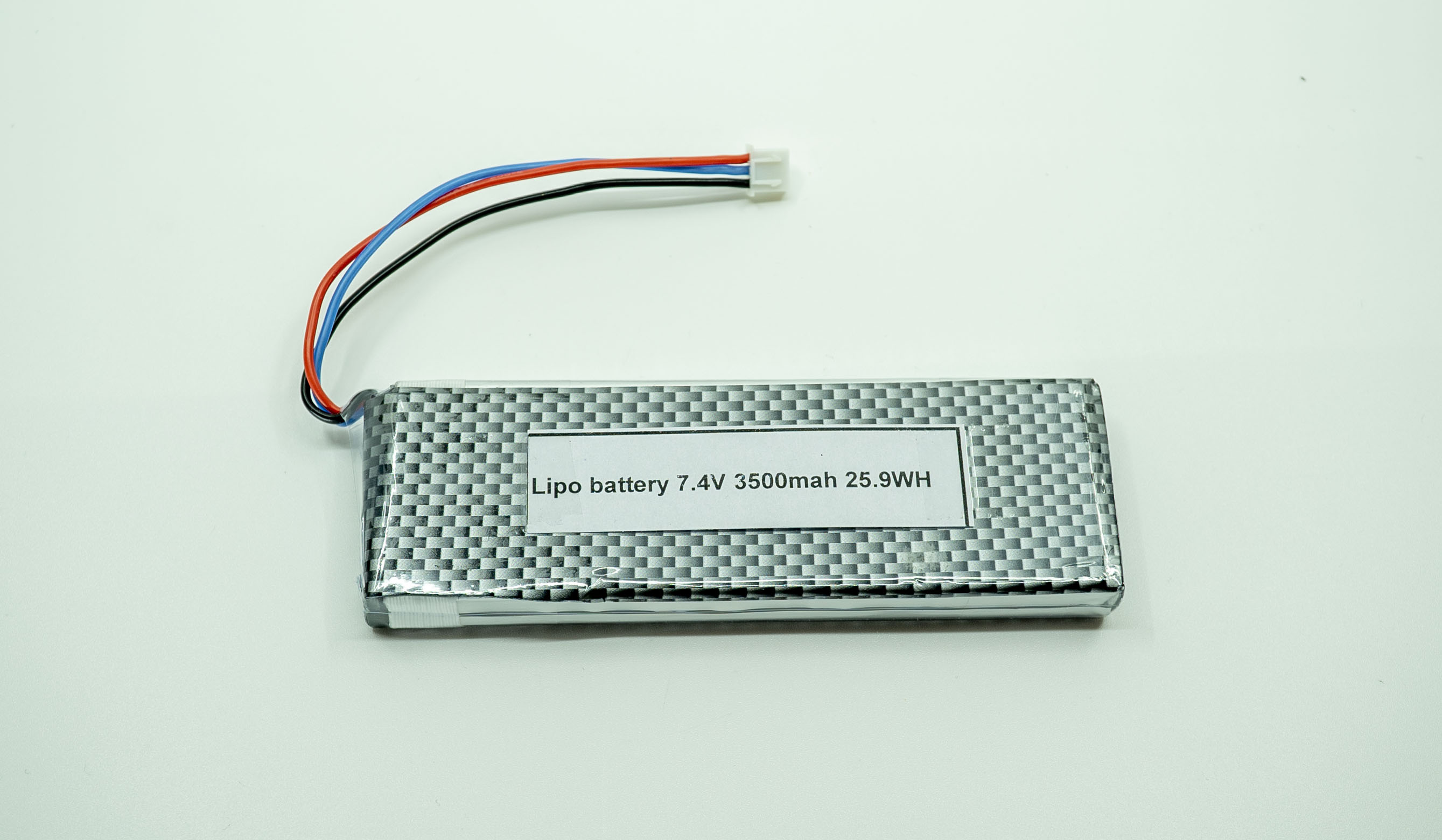

| 2s Battery | Gives the controller power. | |

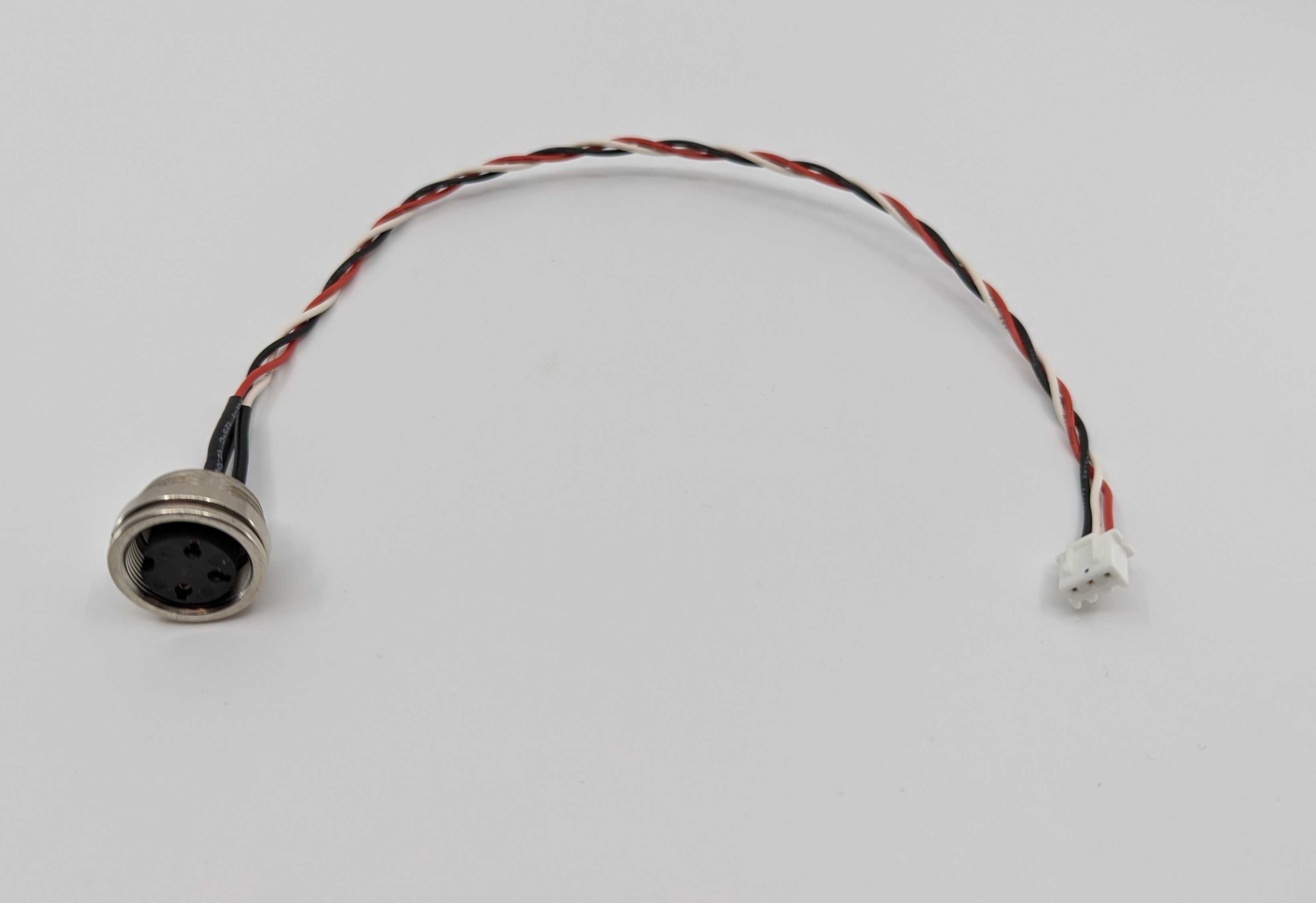

| WL Charge 250mm Long | 3pin charging port connector to charge the internal battery. | |

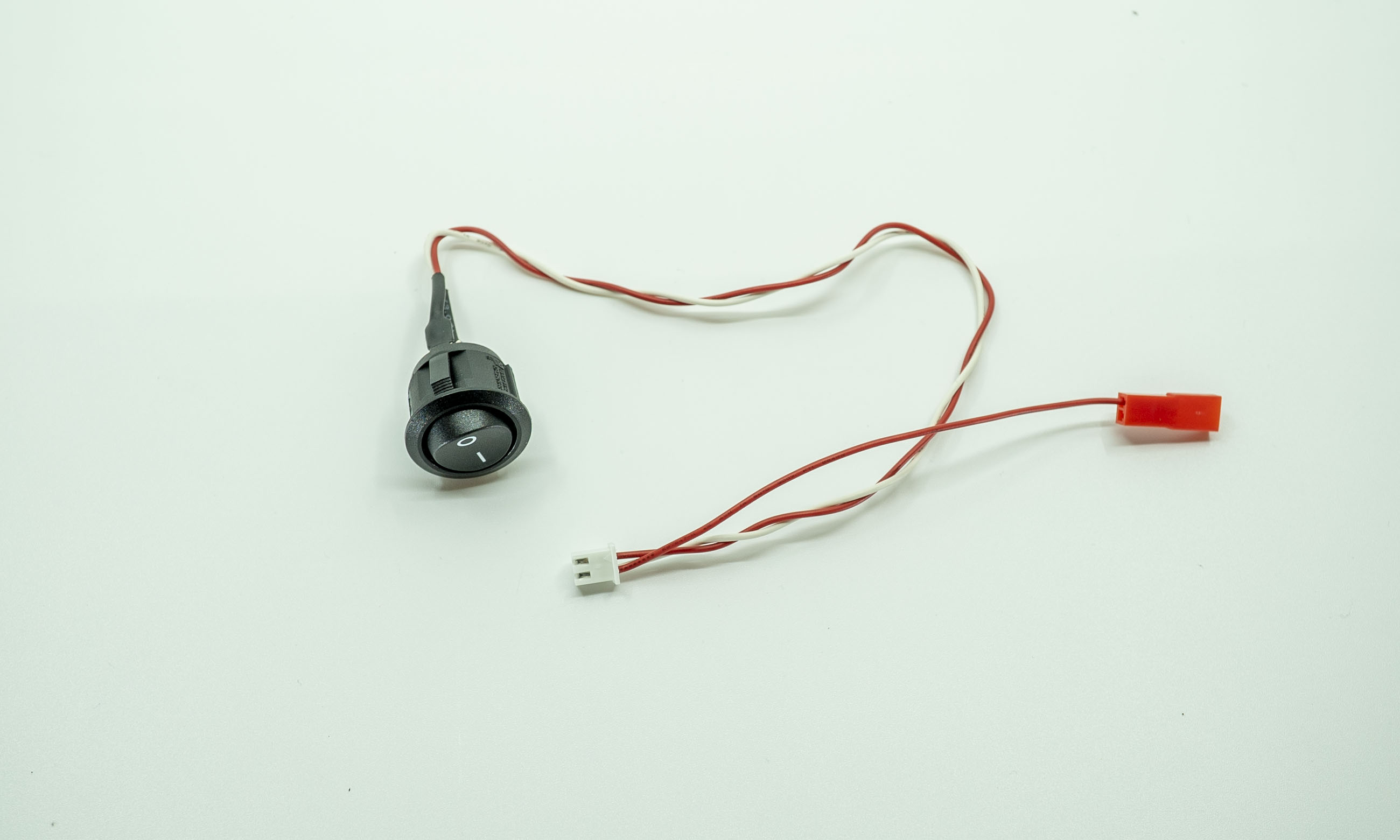

| WL Power | Power switch that turns the controller on and off. | |

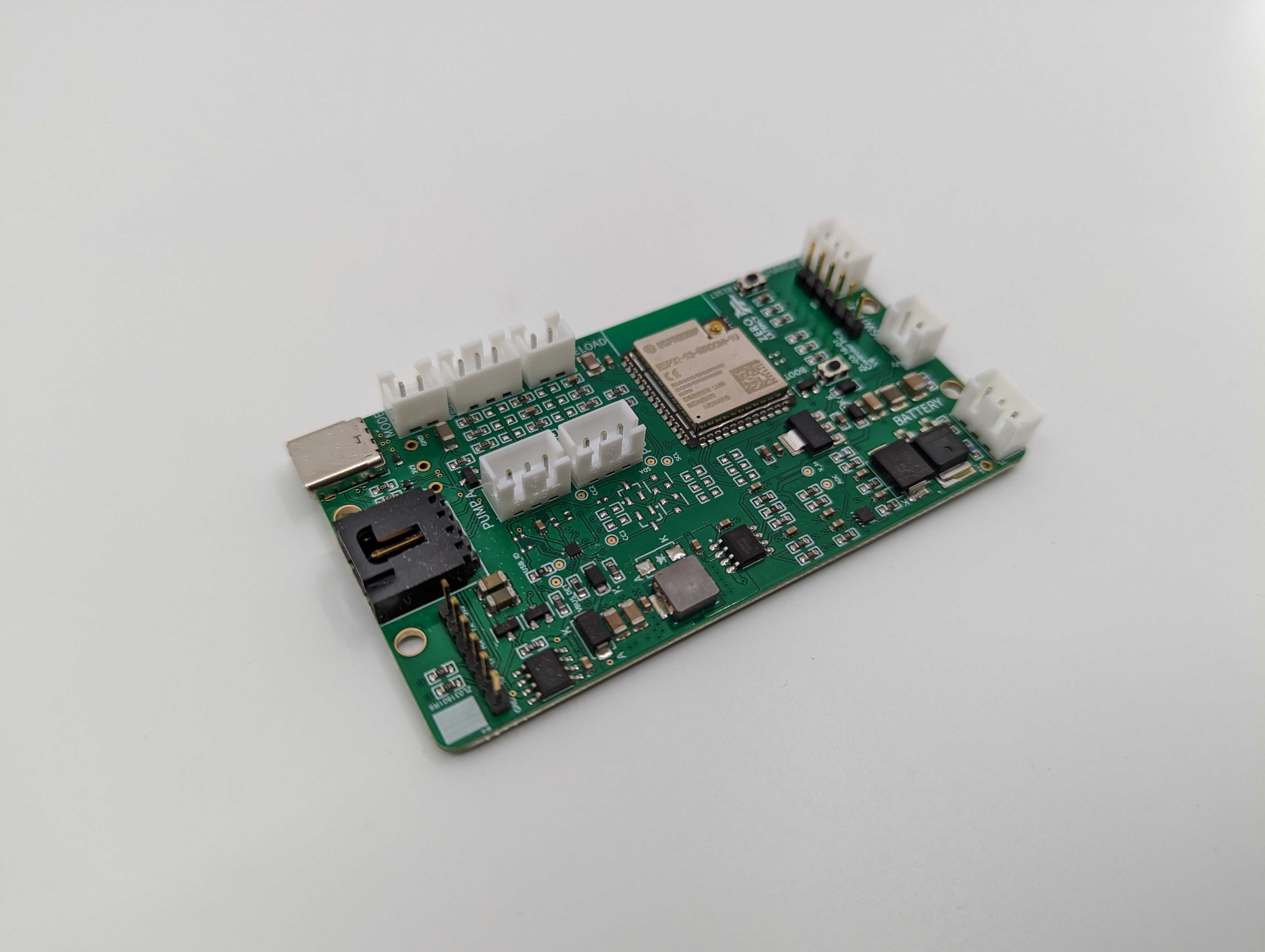

| Controller PCB | Controller PCB controls all inputs and outputs of the controller. |
Controller PCB Connections
This is each connection on the Controller PCB:
