How do I Build the Game Controller Charger?

Introduction

This article outlines the required steps by to set up the Game controller charger.

Time Required

20 minutes

Tools and Equipment Required

• Game Controller Charger
• Power Cable

---

On this page:

  Step 1: Power Supply Connections

  Step 2: Attach the Power Supply

  Step 3: Install the Charger in the Case

---

Step 1: Power Supply Connections

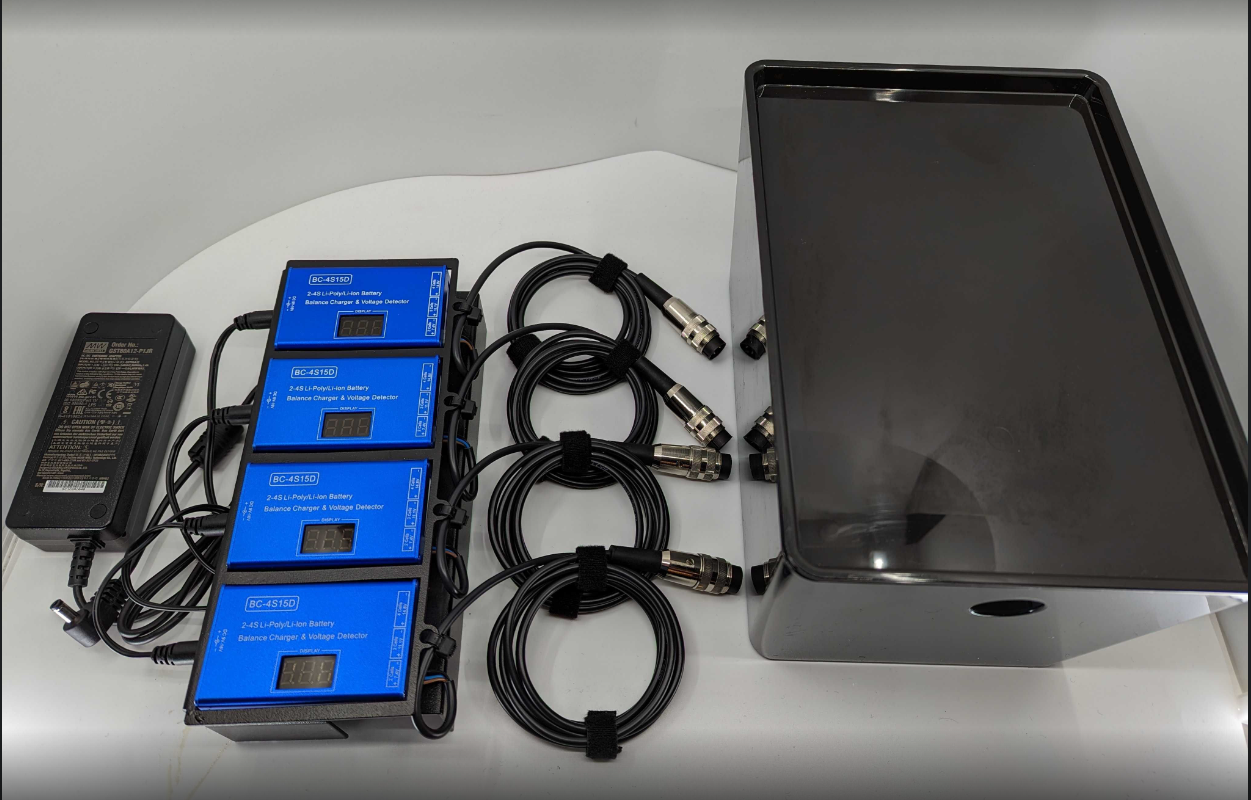

• Remove Pre-assembled components from the case.

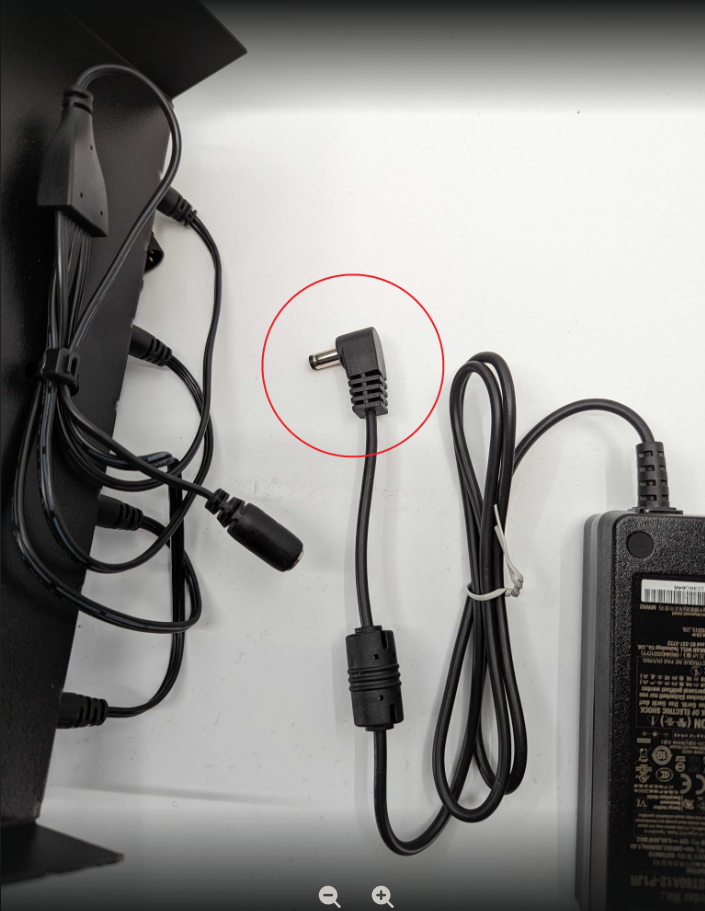

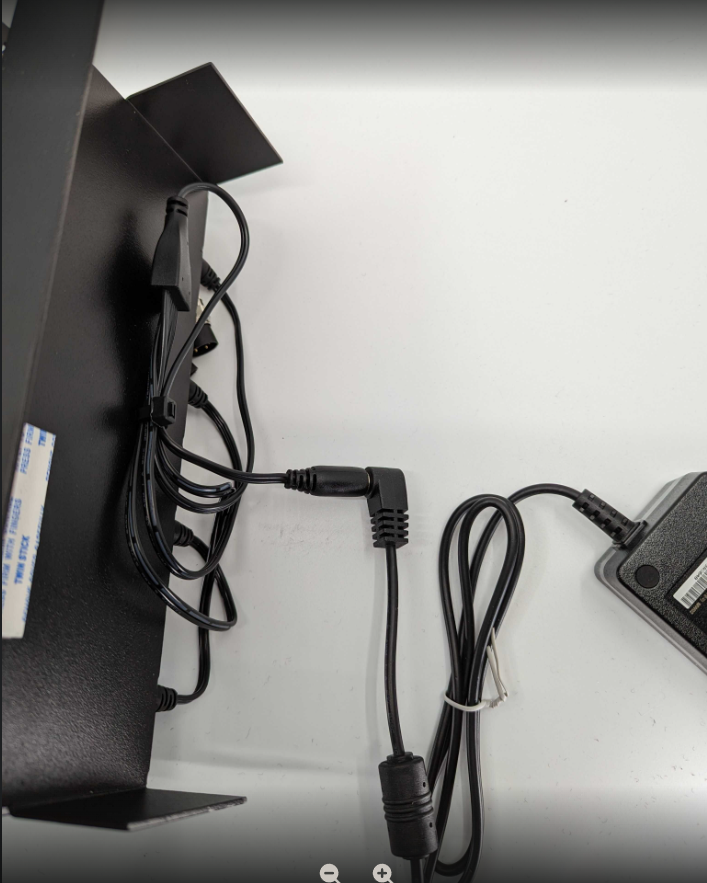

• Flip over the charger assembly and connect the barrel connector to the power supply.

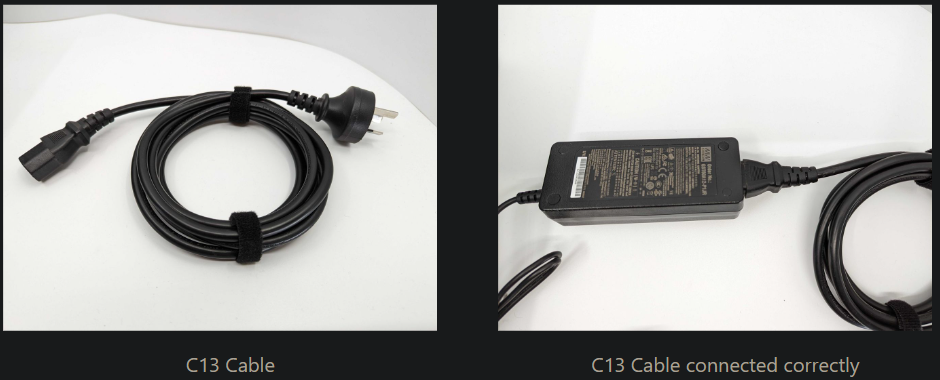

• Connect the power cable to the power supply.

  Back to top

Step 2: Attach the Power Supply

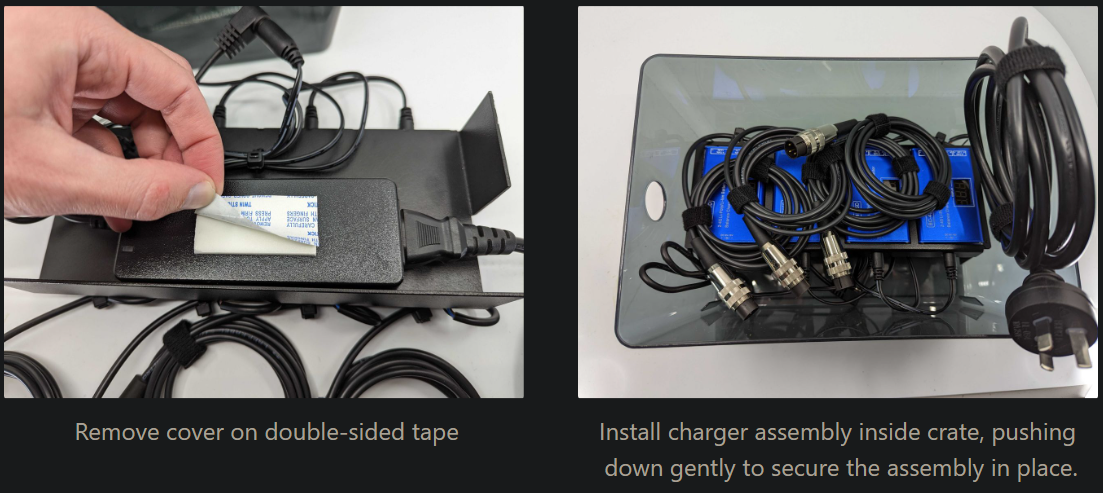

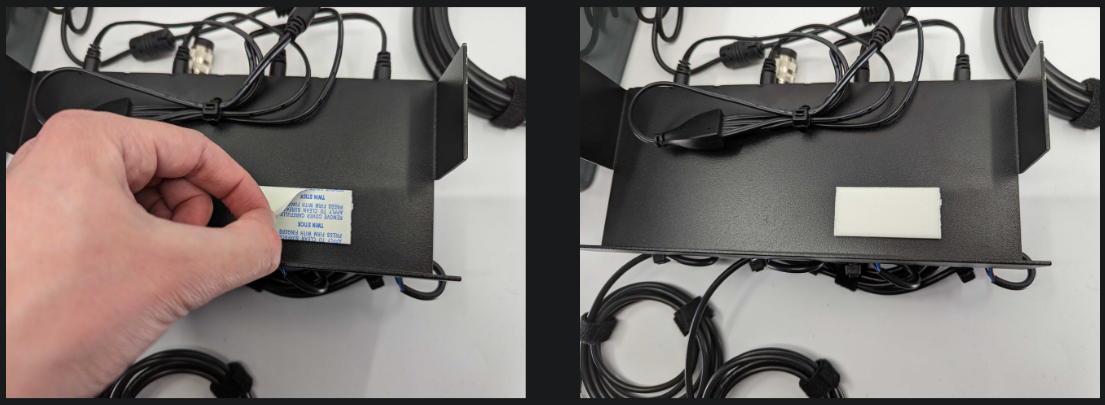

• Remove the cover on double-sided tape on the underside of the charger assembly.

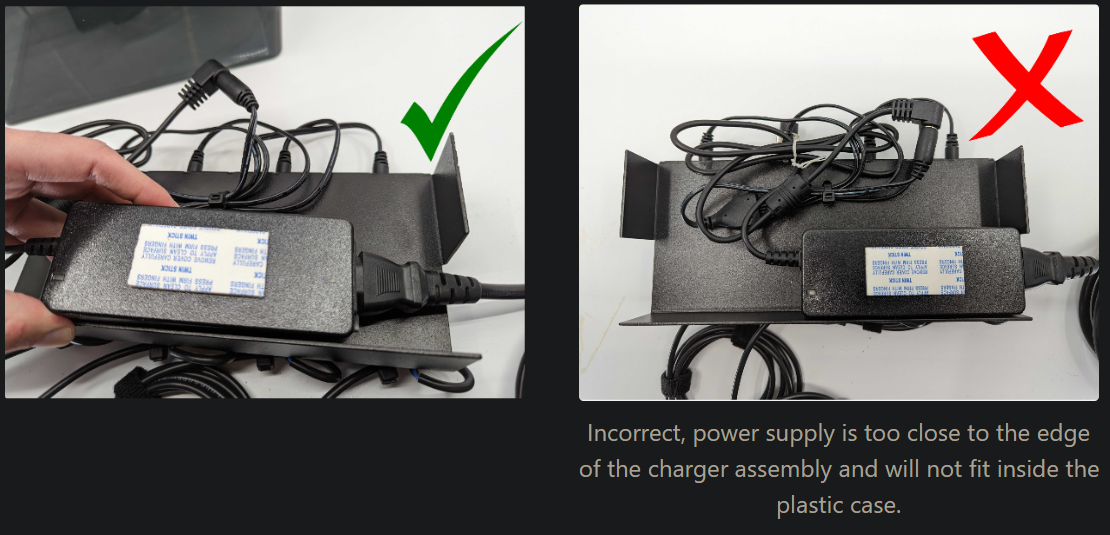

• Place the power supply on the double-sided tape to secure it in place. Make sure to leave enough space for the power cable to bend freely.

  Back to top

Step 3: Install the Charger in the Case

• Remove the cover from the double-sided tape, and install the charger assembly into the plastic crate.

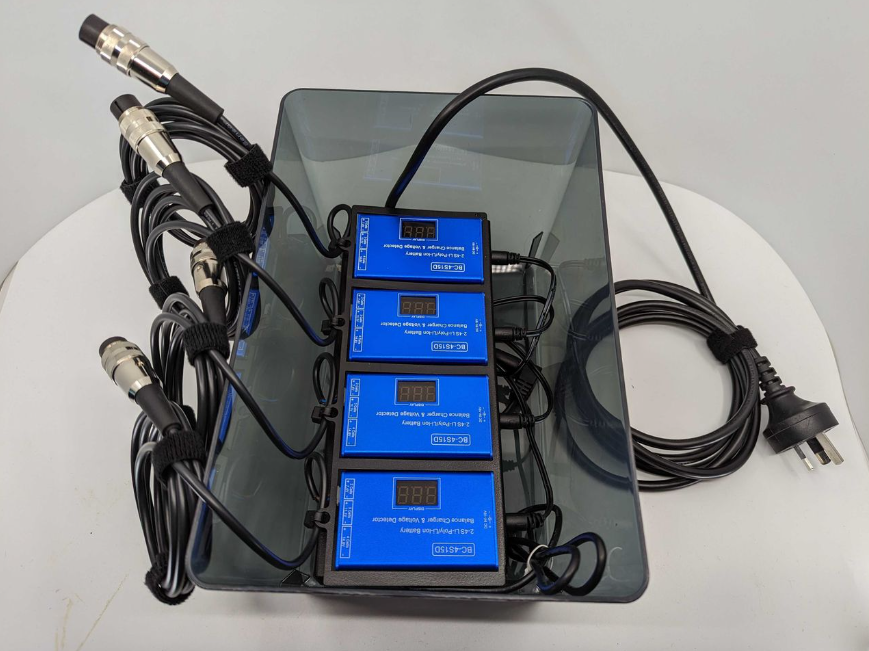

• The charger is now ready for use.

  Back to top
