Controller Components & Connections (Hand Tracker)

Introduction

It is important to understand each component of the controller. This will help with troubleshooting the controller but also will assist in ordering parts.

Danger

You cannot run mixed controller sets at a Venue. If you are planning to upgrade to the Controller 4s you will need to upgrade your entire controller set.

---

On this page:

  Controller Components

  Master PCB Connections

---

Controller Components

Use the table below to help identify the internal components:

Component	Description	Image

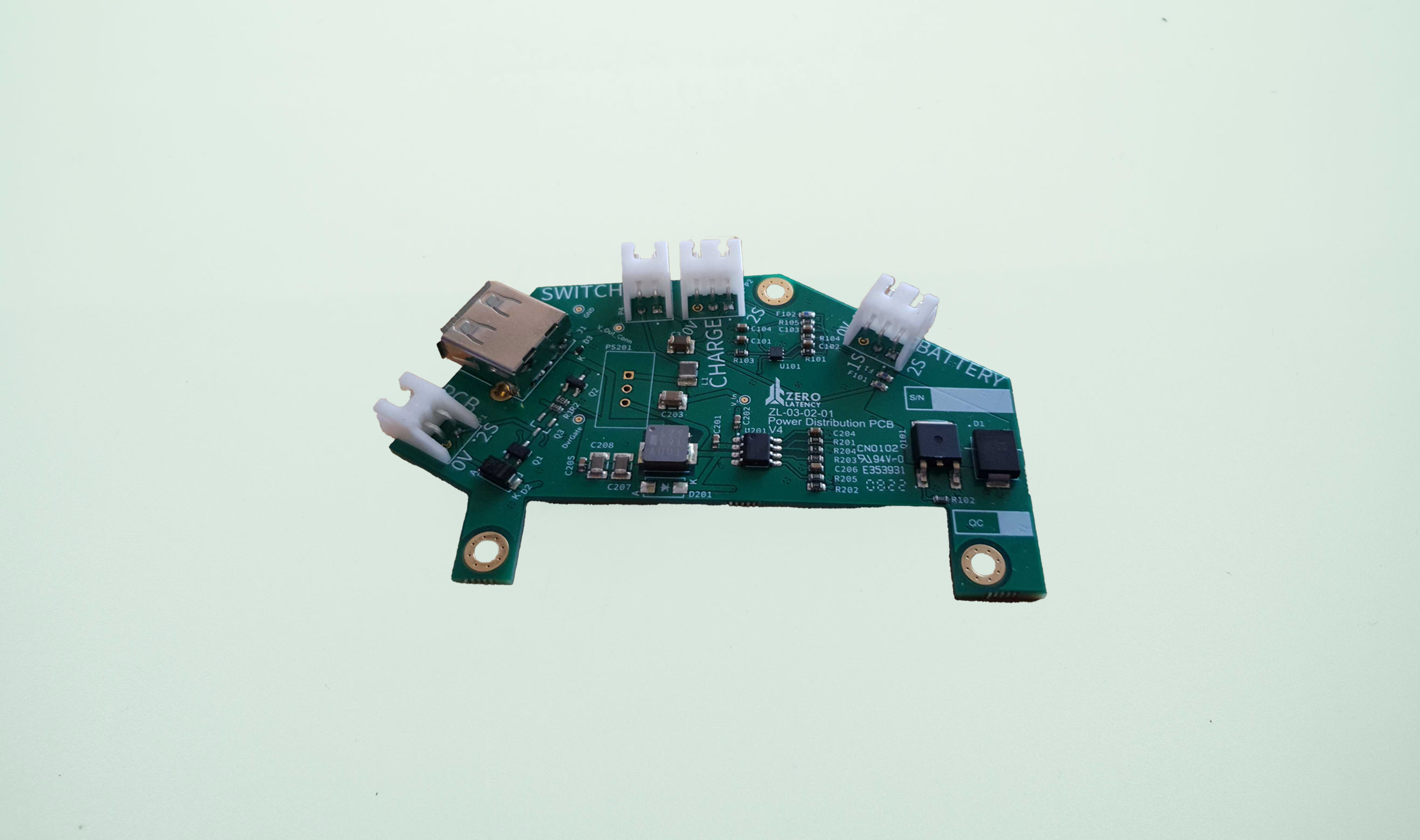

Power Distribution PCB	Protection circuit module prevents hardware faults from damaging the battery.

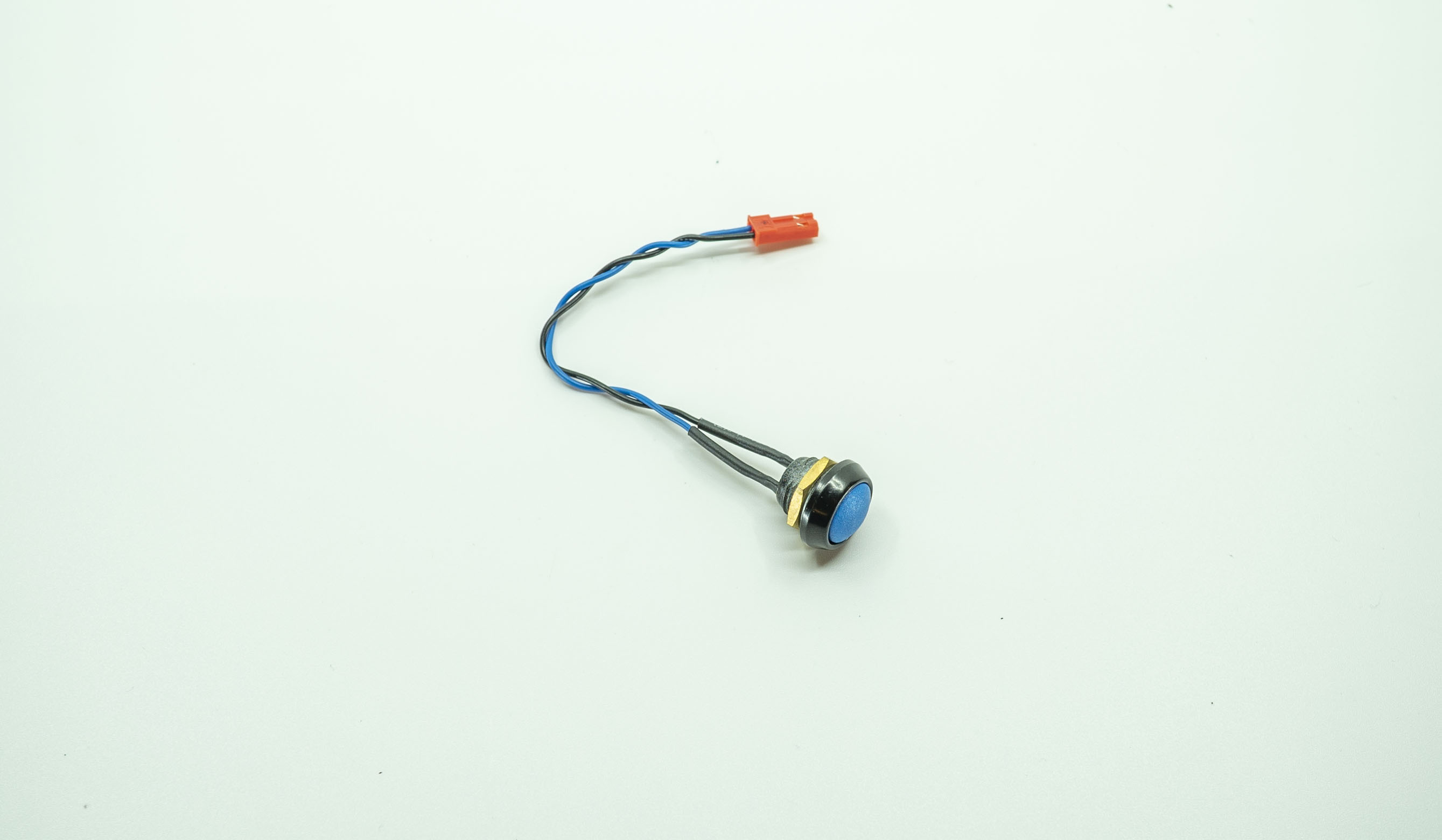

WL Mode A	Mode Select button (right chassis).

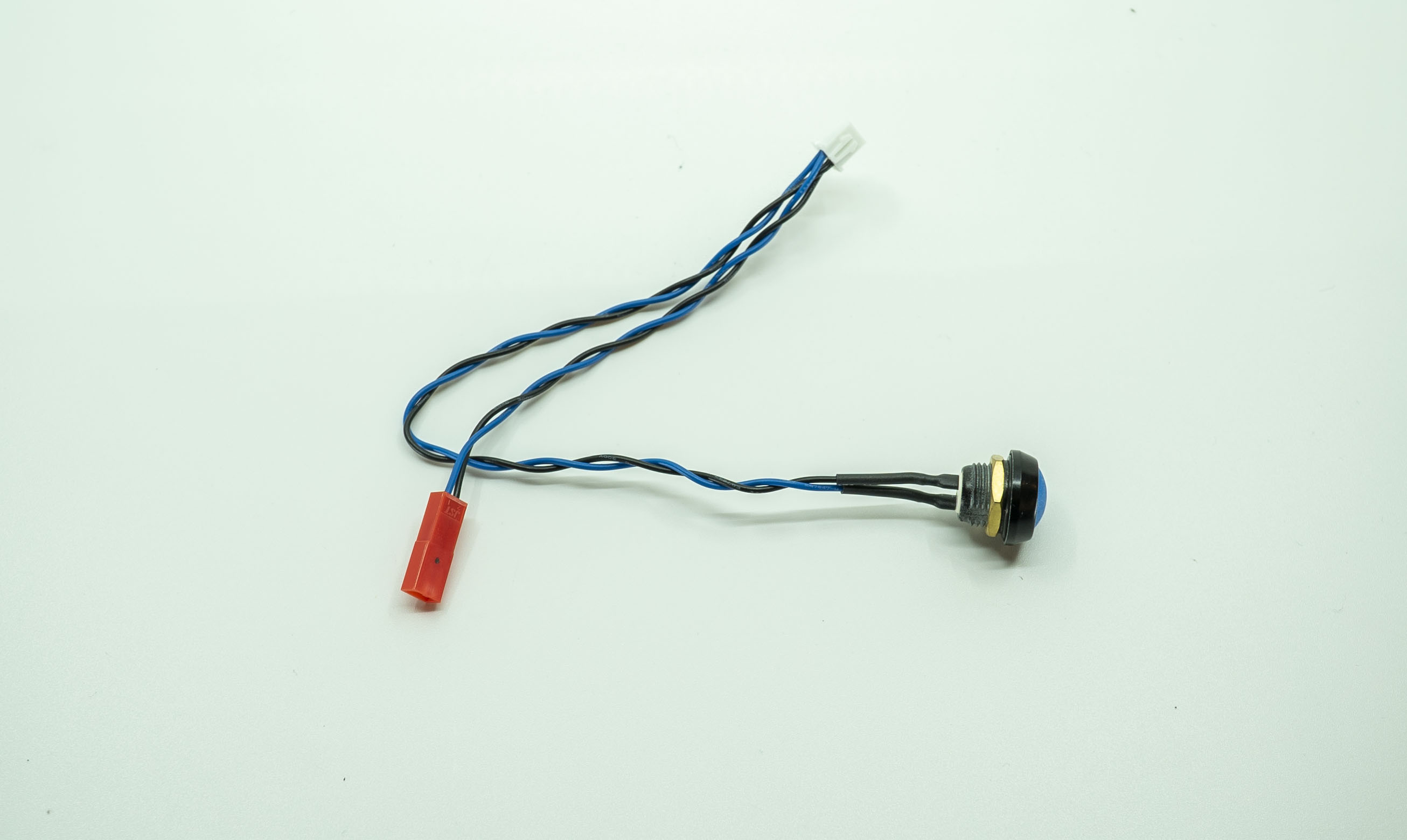

WL Mode B	Mode Select button (left chassis).

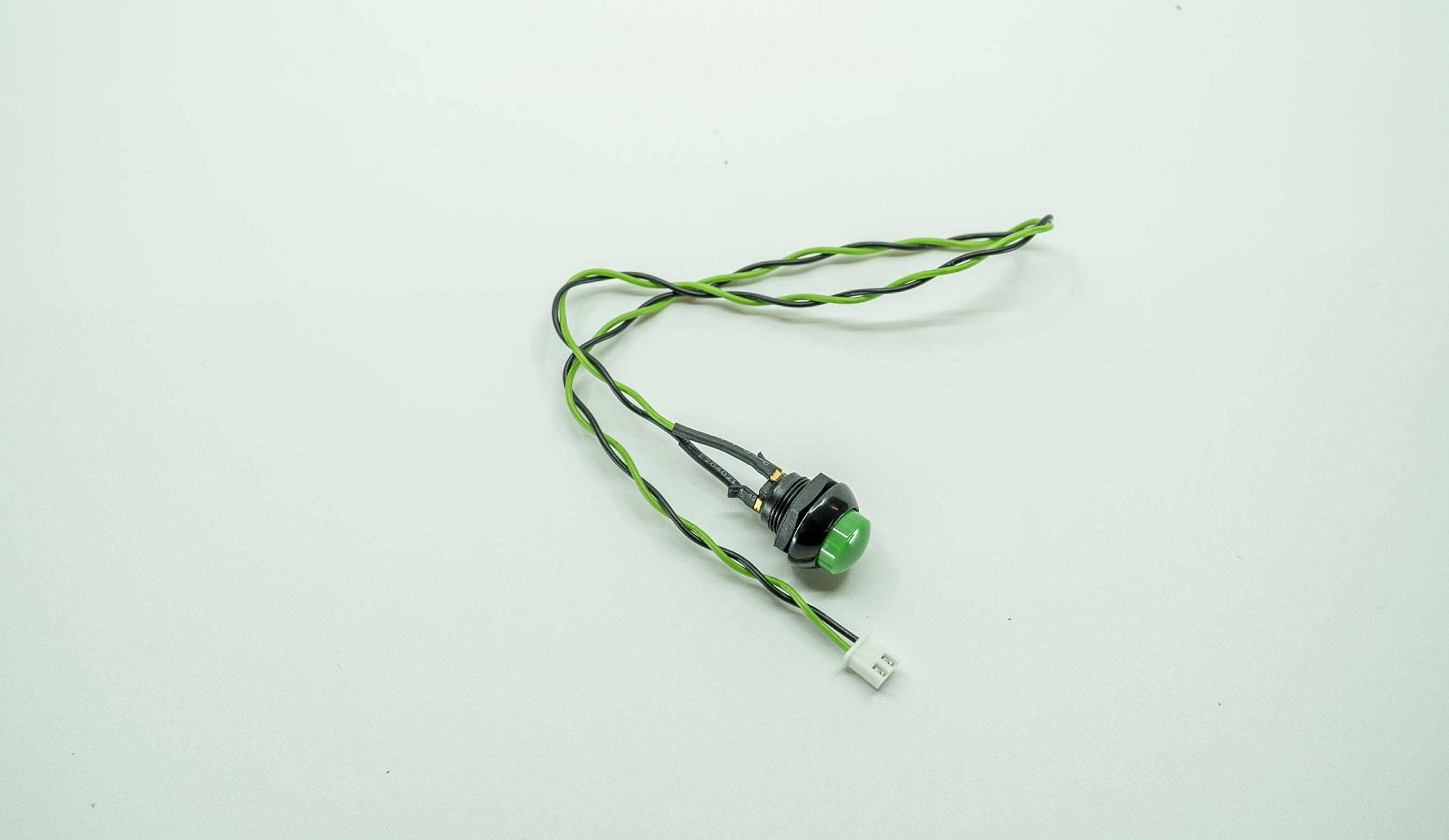

WL Reload	Reloads the weapons in the games.

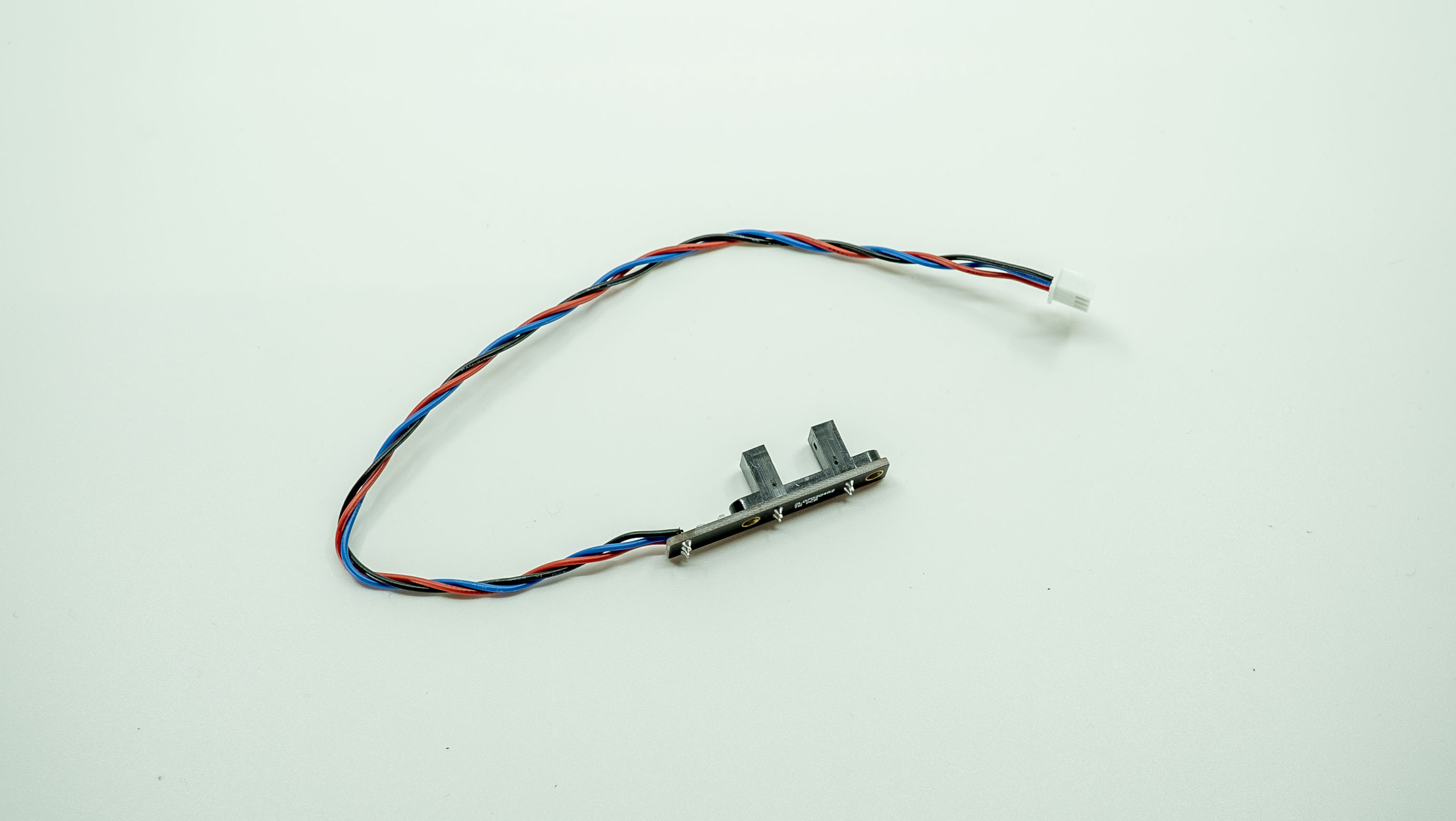

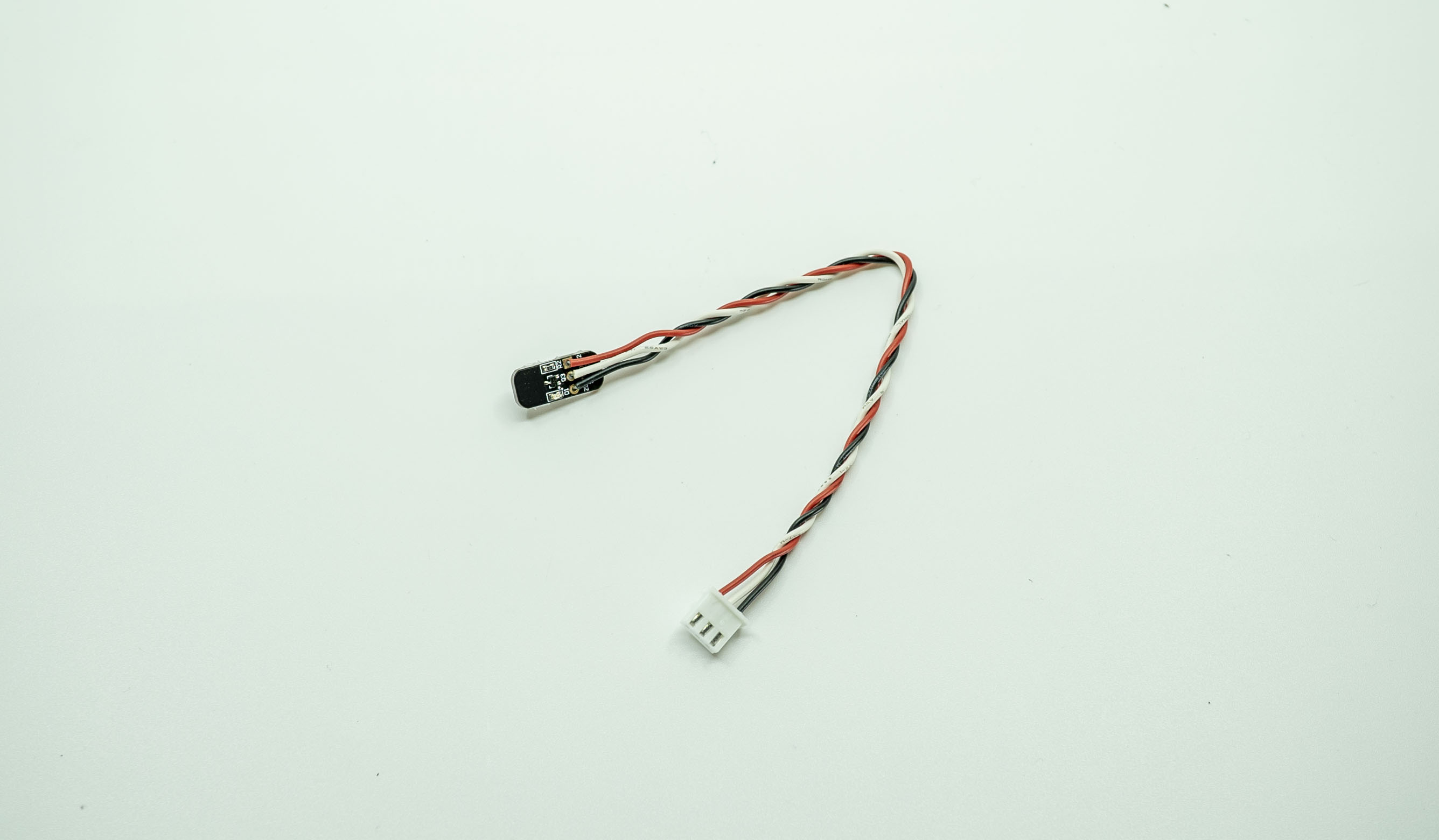

WL Trigger	Optical switch for Trigger operation with a pin.

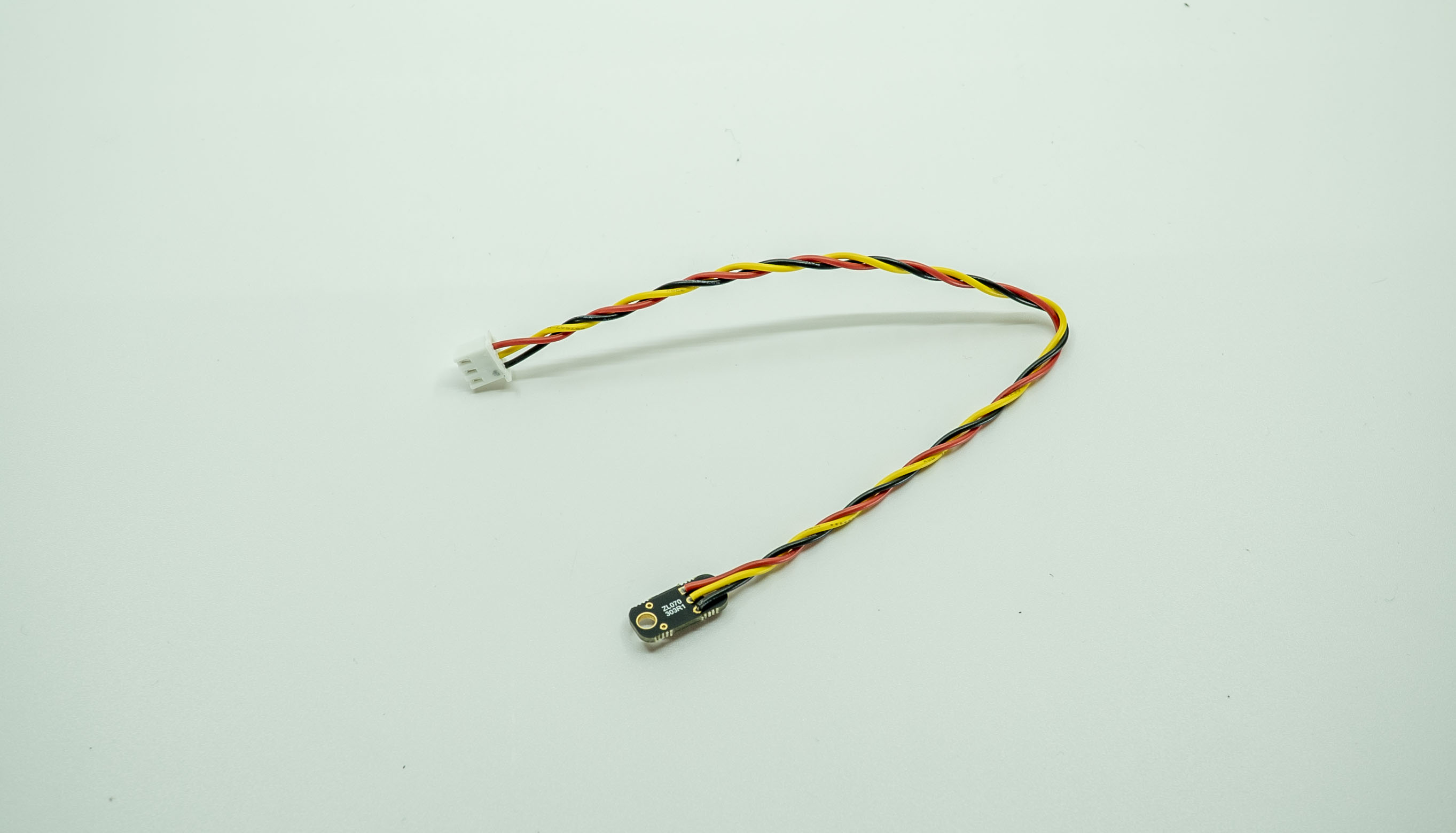

WL Pump A	Front magnetic switch for pump slide operation.
WL Pump B	Rear magnetic switch for pump slide operation.

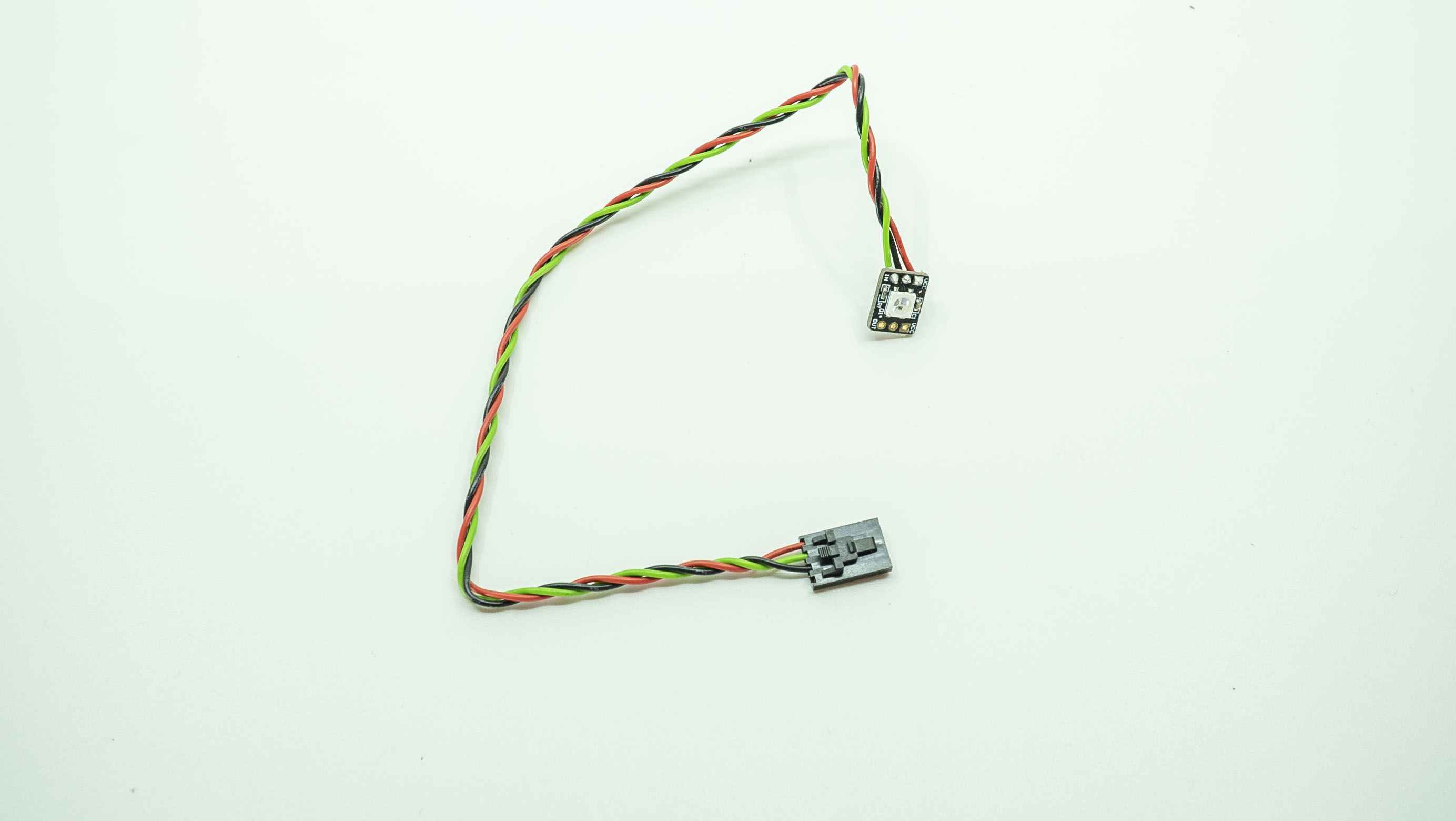

WL LED	Wiring loom for the controller LED.

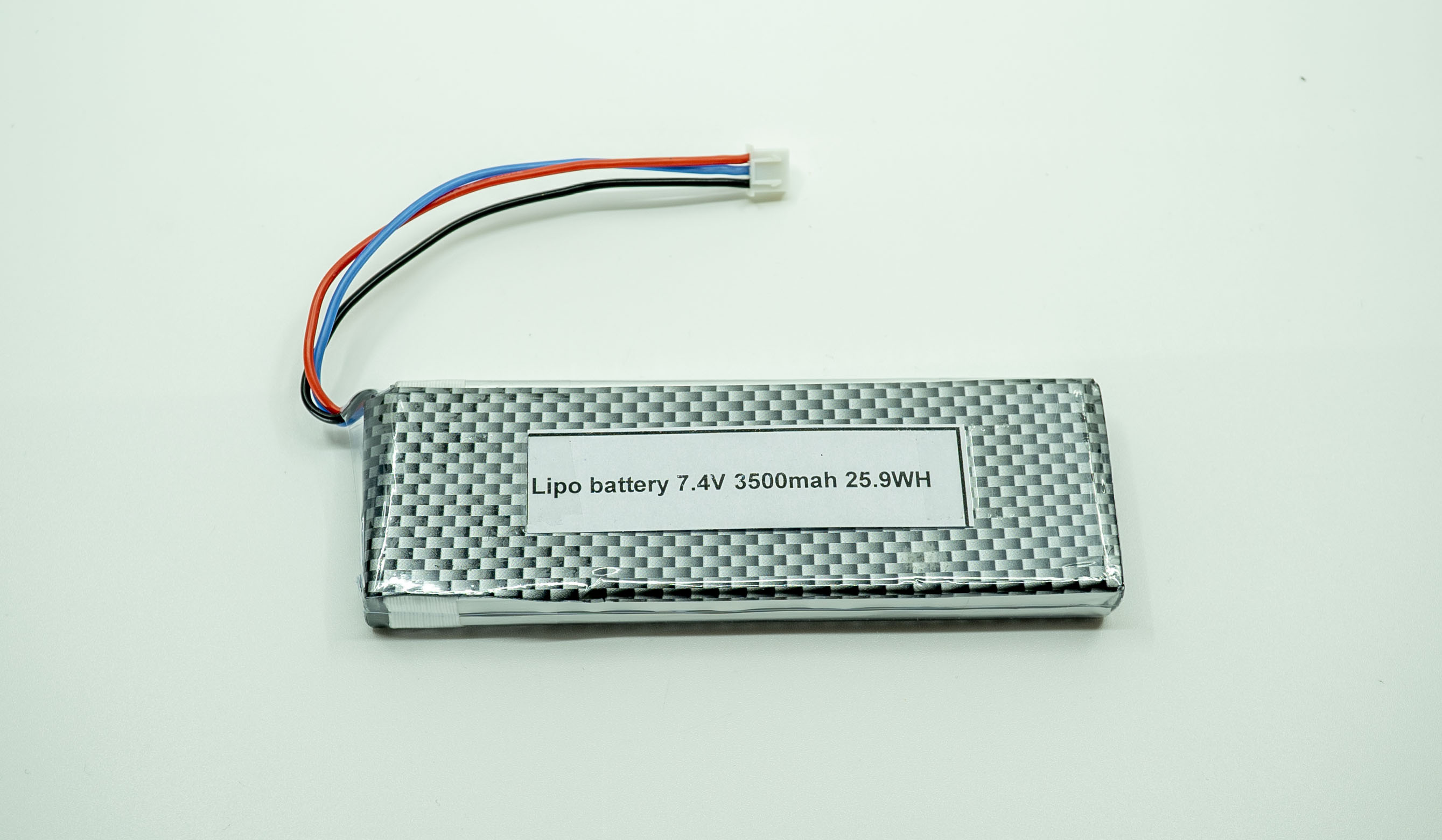

2s Battery	Gives the controller power.

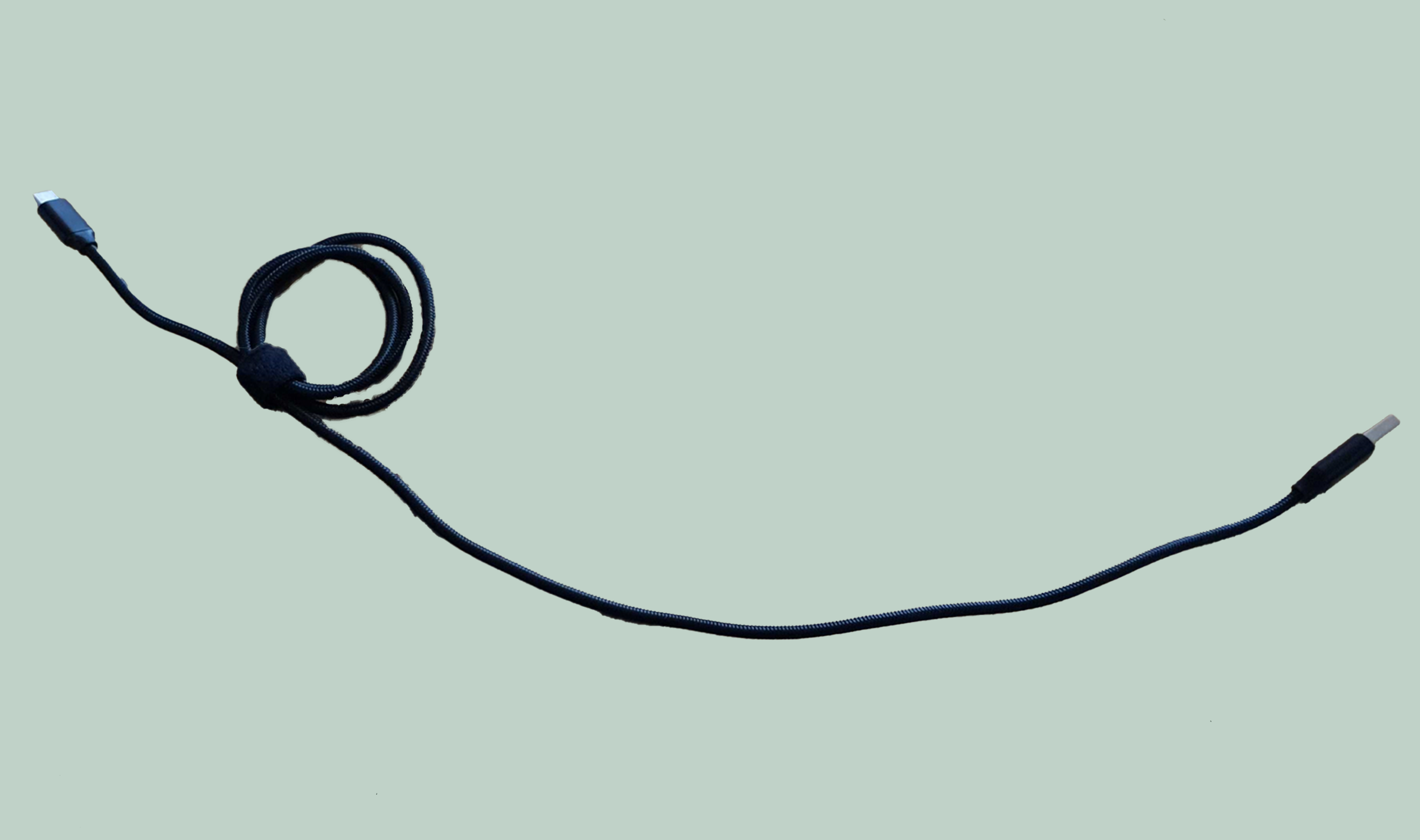

USB C Cable	Powers the Tracker connected at the top.

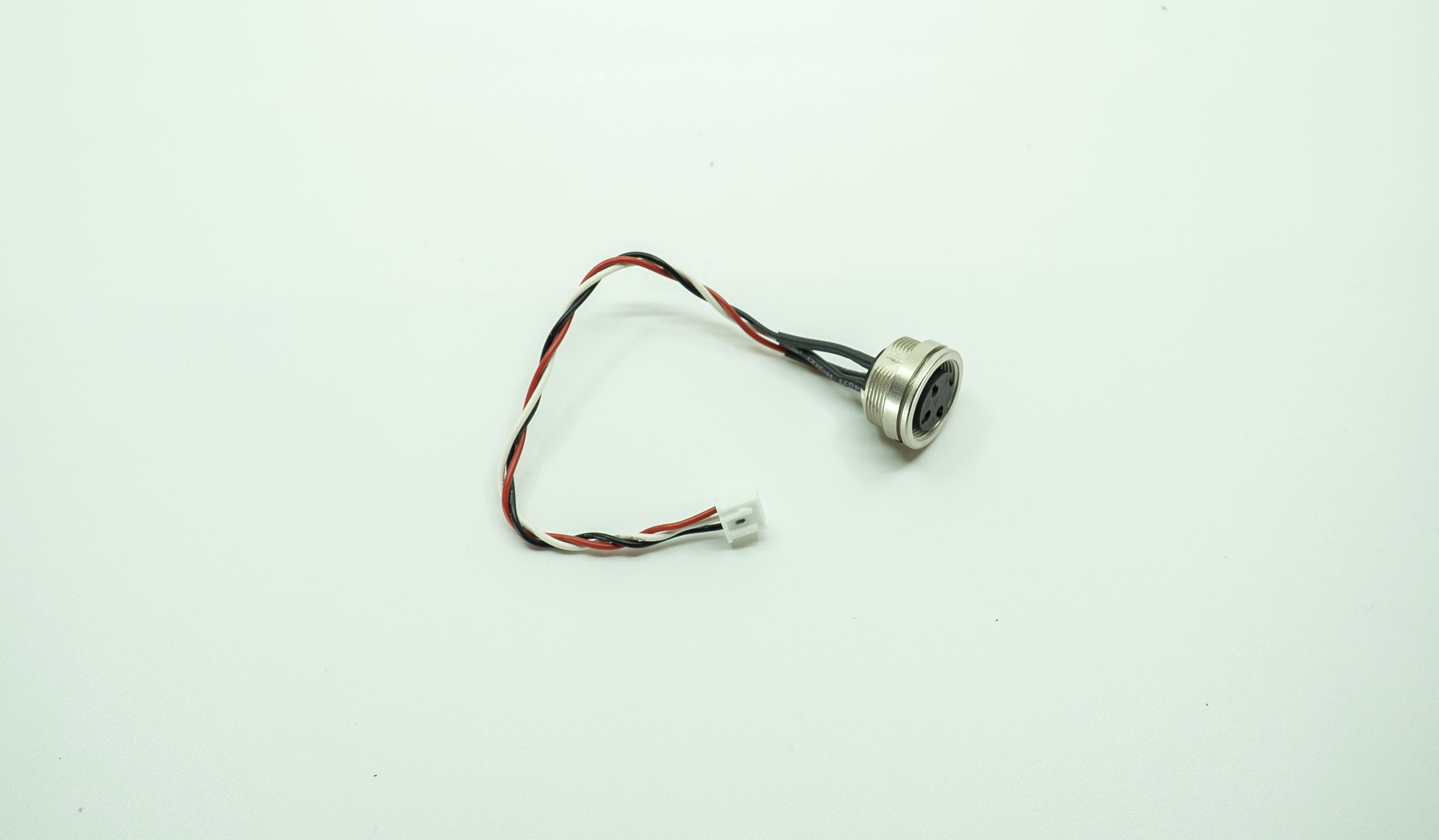

WL Charge	3pin charging port connector to charge the internal battery.

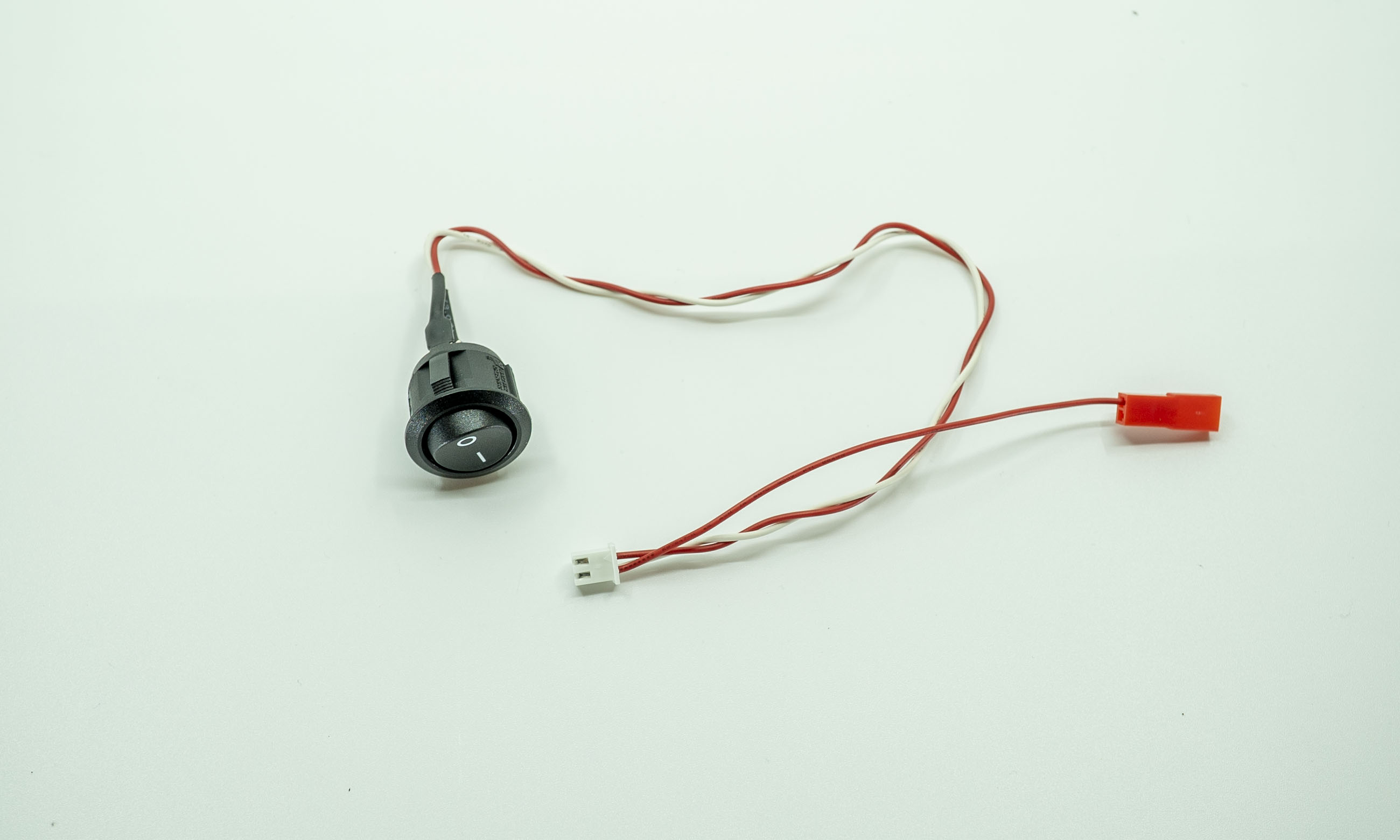

WL Power	Power switch that turns the controller on and off.

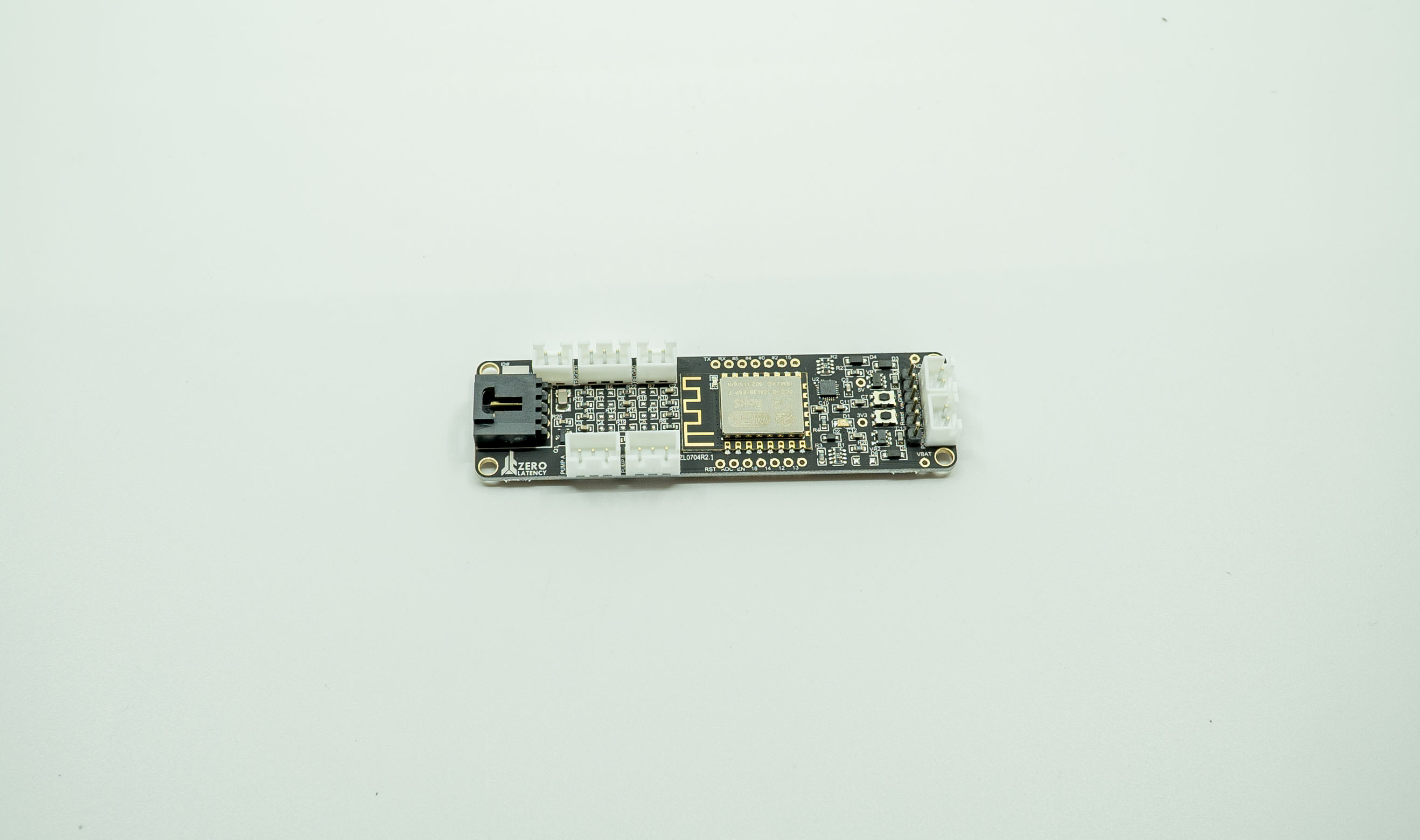

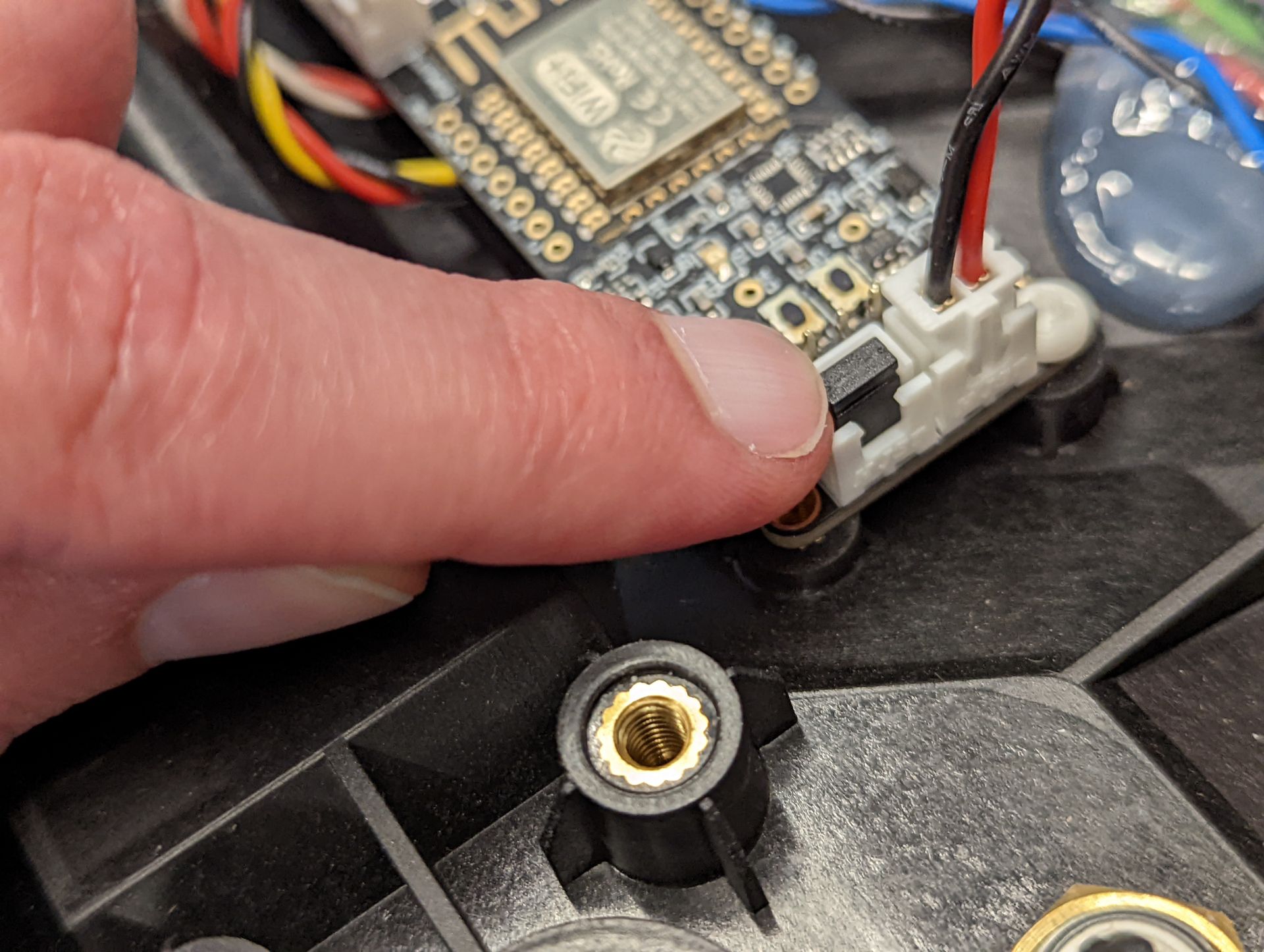

Master PCB	Master PCB controls all inputs and outputs of the controller.

  Back to top

Master PCB Connections

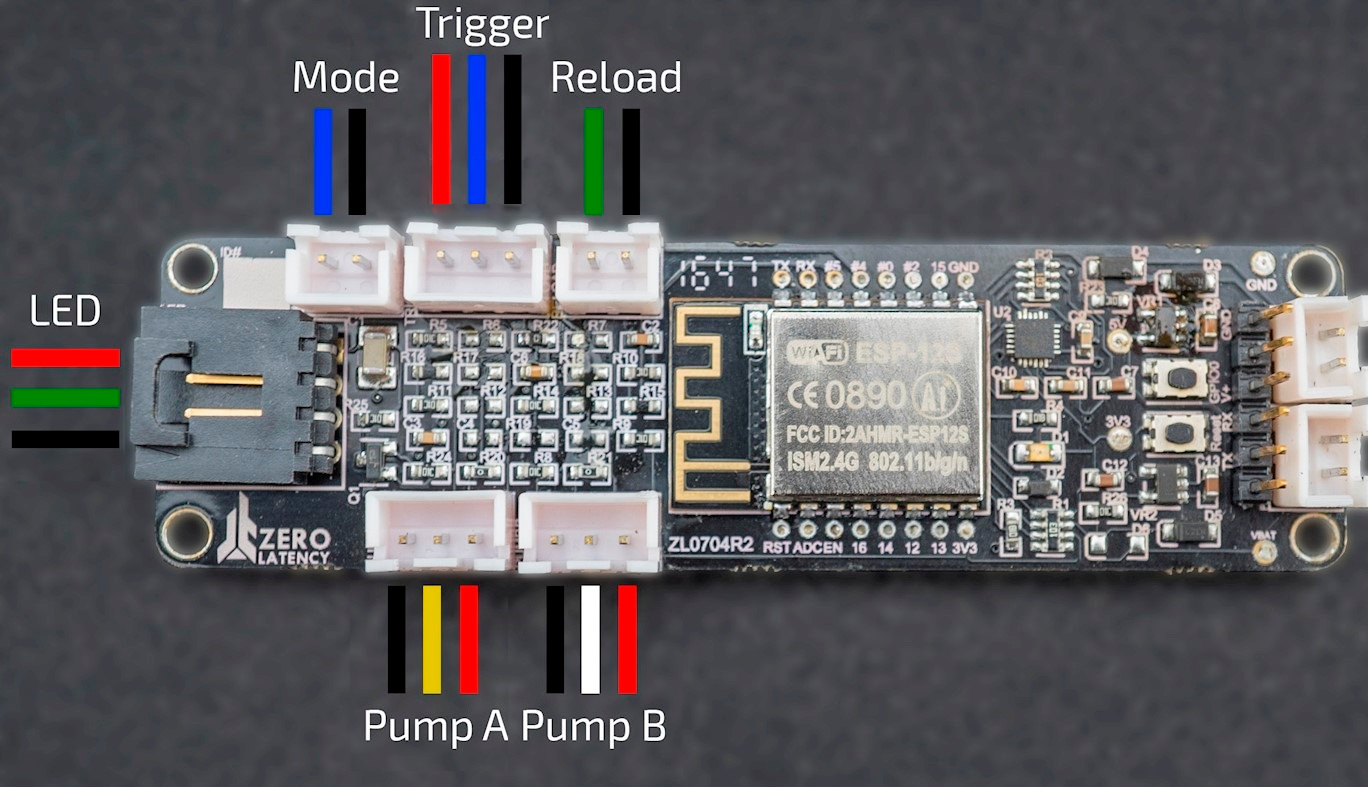

This is each connection on the Master PCB:

  Back to top
